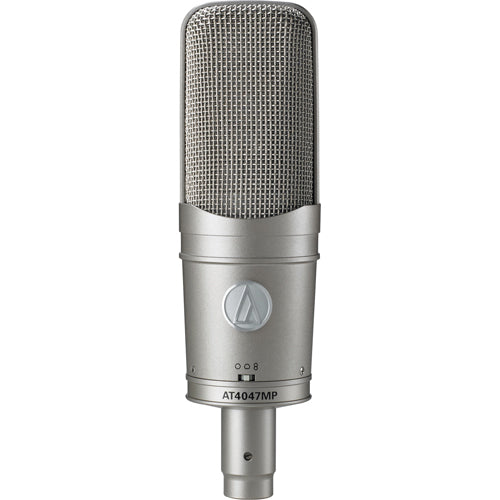

Audio Technica AT4047MP - Multi Pattern Condenser Large Diaphragm Mic with AT8449SV Shock Mount

Audio Technica AT4047MP

The Audio-Technica AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

Audio Technica AT4047 MP Features:

• Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
• Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
• Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
• Exceptionally low self-noise, wide dynamic range and high SPL capability
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Vintage silver-matte finish on microphone and shock mount
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
• Custom shock mount provides superior isolation
• Integral 80 Hz high-pass filter switch and 10 dB pad switch

Audio Technica AT4047MP Specifications:

• Element: Externally-polarized (DC bias) condenser
• Polar Pattern: Cardioid, Omnidirectional, Figure-of-eight
• Frequency Response: 20-18,000 Hz
• Low Frequency Roll-off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -42 dB (7.9 mV), re 1V at 1 Pa
• Impedance: 100 ohms
• Maximum Input Sound Level: 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)
• Noise: 14 dB
• Dynamic Range (Typcial): 141 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.4 mA typical
• Switches: Polar selection; Flat, roll-off;10 dB pad (nominal)
• Weight: 524 g (18.5 oz)
• Dimensions: 188.0 mm (7.40") long,53.4 mm (2.10") maximum body diameter
• Output Connectors: Integral 3-pin XLRM-type
• Accessories Furnished: AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
• Audio-Technica Case Style: R1
