The Neutrik Xirium Pro NXP-RM-ANA-E-PI is the permanent installation version of the NXP-RM-ANA-E, this PI version does not feature battery power and must be mains powered.

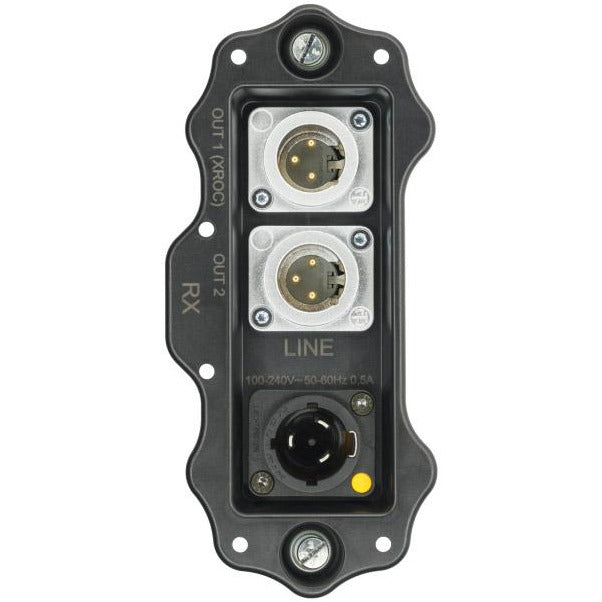

The Neutrik XIRIUM PRO NXP-RM-ANA-E-PI is an Analog Line Output Module for the XIRIUM PRO Europe Receiver RX (NXP2RX-E).

Input and output module options handle common signal type
Whether the signal type is analog, digital (AES/EBU) or Dante, XIRIUM PRO offers modules to accept any of them. Signal types may also be converted from one type to another, simply by selecting the appropriate module. Need to transmit an analog signal and plug into a digital input? No problem. Select an analog input module for the transmitter, and the AES digital output module for the receiver. In fact, every receiver in a system can use a different output module, allowing for signal conversion to the type used by your device.

Specifications

GENERAL SPECIFICATIONS

• Radio frequency carrier range: IEEE 802.11a, UNII-3 band from 5725 MHz to 5825 MHz (channels 149-165), license-free
• Data protocol: Proprietary (DiWA technology)
• Transmit power: Conducted 8 dBm / 14 dBm (with 6 dBi antenna)
• Range: Up to 500 m point to point (LOS), longer range depending on obstacles, reflexions, interferences, XROC mode

AUDIO PERFORMANCE (ANALOG TO ANALOG PER WIRELESS LINK)

• THD + Noise (TX Gain = min.): < 0.01 % @ 1 kHz, 4 dBu / < 0.05 % @ 20 Hz – 10 kHz, 4 dBu
• Frequency response: +0.5 dB / -1.5 dB @ 20 Hz – 20 kHz ref. 1 kHz
• Dynamic range: > 105 dB @ 1 kHz, A-weighted
• Crosstalk: < -80 dB @ 20 kHz
• Number of audio channels @ 24 mbps: 2
• Number of audio channels @ 6 mbps: 1 (XROC mode)
• Number of receivers: Unlimited number of RX clients
• Converter resolution (ADC & DAC): 24 bit
• Sampling rate: 48 kHz
• Latency (Delay): 3.6 msec (analog to analog)
• Transmission method: Compression-free, no reduction of converted data
• Operating temperature: 32° F to +122° F / 0 °C to +50 °C
• Storage temperature: -4° F to +176° F / -20 °C to +80 °C

RX SPECIFIC CHARACTERISTICS

• Antenna 5-6GHz - Audio Transmission: Directional, 14dBi, 35° Elevation and 40° Azimuth, N-connector male
• Antenna 2.4GHz - Control Data Transm.: 1/2 wave dipole with SMA female connectors
• Number of audio channels: 2

ADDITIONAL DIGITAL AUDIO INTERFACES

• AES/EBU: 24 bit / 48 kHz according to AES3-2003
• Dante AoE (Audio over Ethernet): proprietary protocol by Audinate®

ANALOG OUTPUT SPECS

• Output Type - Line Output (balanced)
• Output Level
• Output Imp.: < 800 Ohm
• Rated Load Imp.: 10 kOhm
• Nominal*: 0 dBU (* if TX source = 0 dBu)
• Max. Level: 22 dBU

OTHER

• Indicators: LEDs: Power ON / Start Up / Low Battery Status / Audio Delay / Linking Process / Audio Reception
• Controls: Power ON / Linking Process / Audio Delay
• Power Supply: NXP-RM-ANA-E-PI: Mains input over powerCON TRUE1 (100-240 VAC 50/60 Hz)
