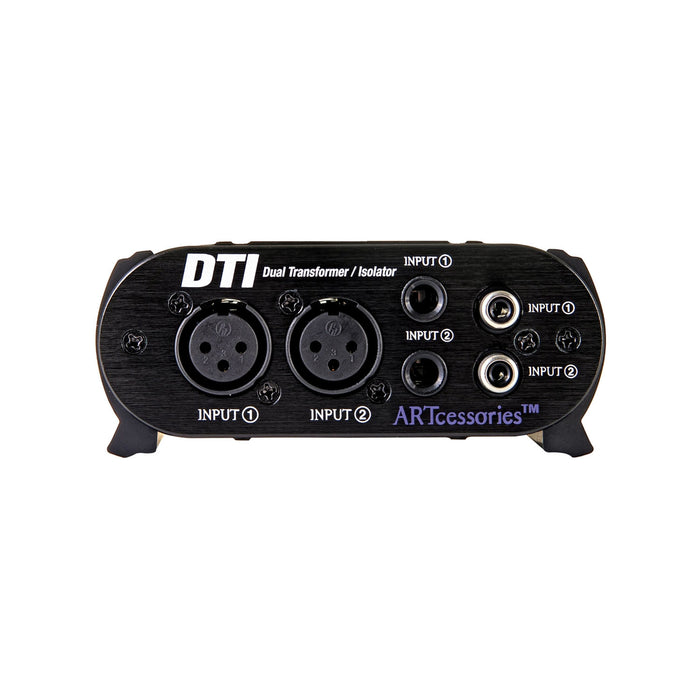

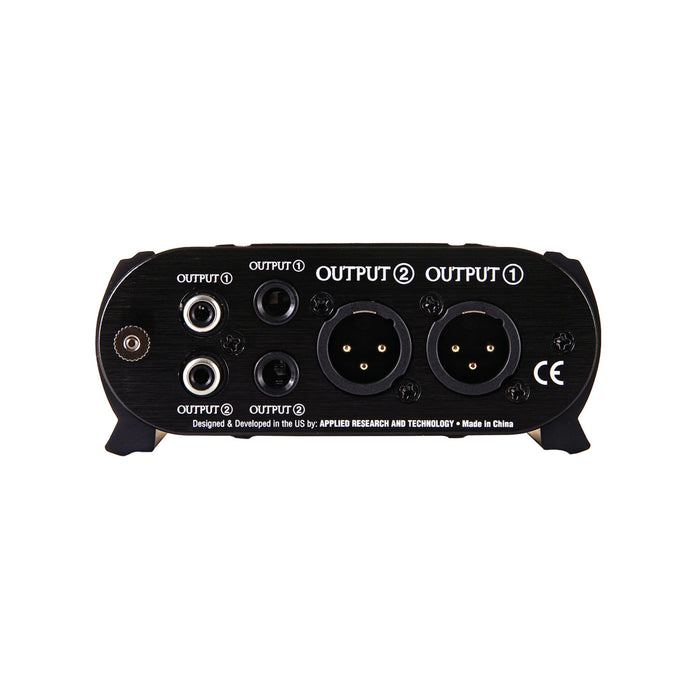

ART DTI - Dual Transformer / Isolator

ART DTI - Dual Transformer / Isolator

The ART DTI Dual Transformer / Isolator uses a pair of high-performance transformers to reduce hum and ground loop noise, separating the input and output signal grounds for total isolation between two systems.

The transformers are wound for 1:1 unity gain, and have an extremely flat and wide frequency response. Even at high signal levels, they provide clean, transparent sound.

With XLR, 1/4” TRS, and RCA connectors on all inputs and outputs, the DTI is flexible and easy to integrate. Featuring a rugged aluminum enclosure and a passive design that doesn’t require external power, the DTI is built for years of reliable use.

ART DTI Features:

• 2x XLR Inputs and Outputs
• 2x 1/4" Inputs and Outputs
• 2x RCA Inputs and Outputs
• 10 Hz - 50 kHz Frequency Response
• 0.01% THD (Typical at 1 kHz, +18 dBU)
• Passive Design - No Power Required

ART DTI Specifications:

• Inputs:
• 2x Balanced XLR
• 2x Balanced / Unbalanced 1/4" TRS
• 2x RCA
• Outputs:
• 2x Balanced XLR
• 2x Balanced / Unbalanced 1/4" TRS
• 2x RCA
• Frequency Response: 10 Hz - 50 kHz (+/- 0.5 dB @ +4 dBu)
• THD:
• 0.01% (Typical @ 1 kHz, +18 dBu)
• < 0.05% @ 100 Hz, +24 dBu
• Insertion Loss:
• 0.4 dB (100 kΩ Load)
• 5.5 dB (600Ω Load)
• Dimensions (HWD): 8.9 cm x 10.7 cm x 4.45 cm
• Weight: 0.75 lbs / 340 g
