Art Dual Z Direct - Dual Ch.Passive Di-Box

Art Dual Z Direct

The Art Dual Z Direct is a Professional Passive Direct Di Box that provides two independent high quality totally passive interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs through high performance audio isolation transformers. Each of the high impedance single-ended ¼" inputs is converted by a transformer into an isolated, balanced, low impedance signal output. The DUALZDirect's audio transformers have an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

Art Dual Z Direct Features

• Fully passive, high performance transformer design
• Converts 50kR inputs into 600R balanced outputs
• Switchable low pass filter
• Switchable phase invert
• Switchable ground lift
• Rugged extruded aluminium case

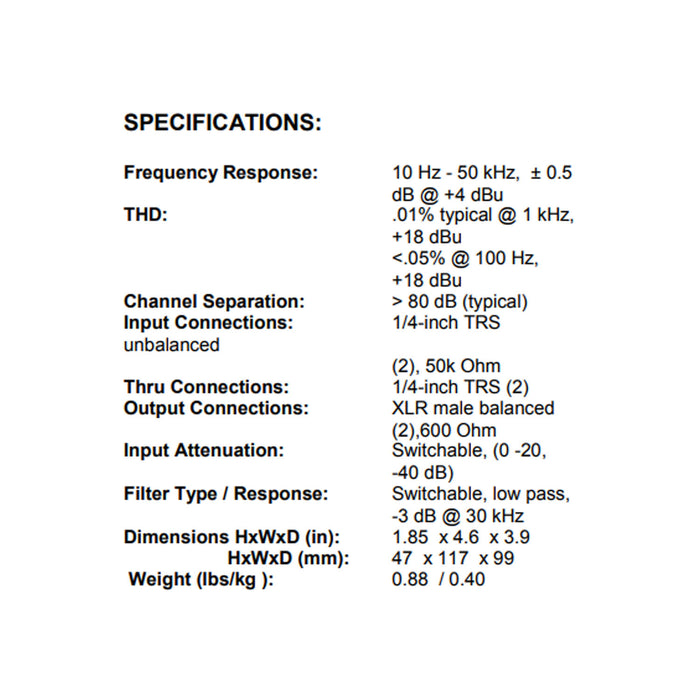

Specifications

• Input Connections: 2x 6.35mm (¼") TRS unbalanced
• Thru Connections: 2x 6.35mm (¼") TRS
• Output Connections: 2x XLR male
• Frequency Response: 10Hz-50kHz, ±0.5dB
• Channel Separation: >80dB (typical)
• Input Attenuation: Switchable, (0, -20, -40dB)
• Filter Type/Response: Switchable, low pass, -3dB @ 30kHz
• THD: 0.01% typical @ 1kHz, +18dBu
• Dimensions (WxHxD): 117x47x99mm
• Weight: 400g
