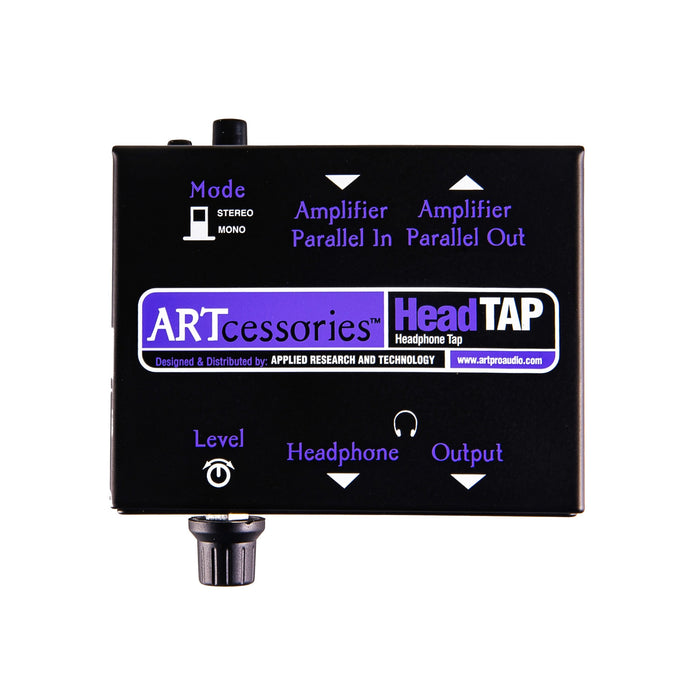

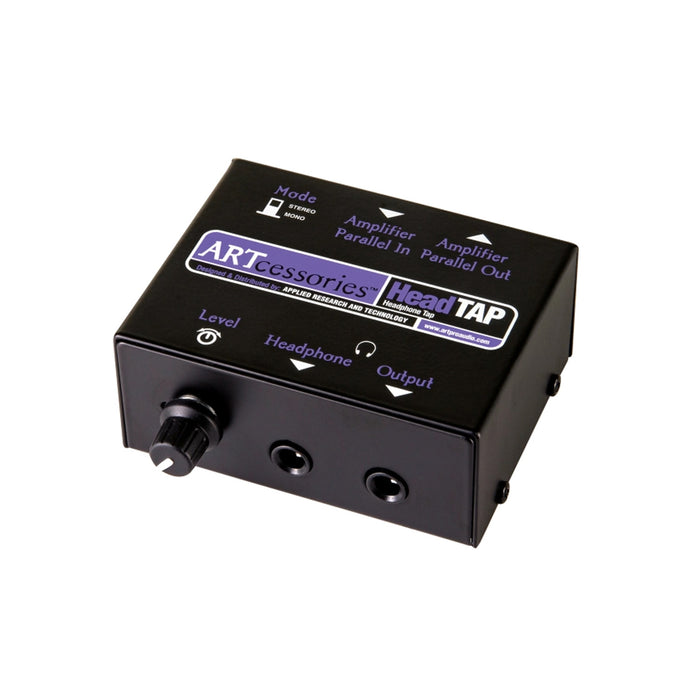

Headphone Tap
The Headphone Tap is an alternative to stage monitor, this little floor box sends a feed to your headphones so you don’t have worry about setting up huge monitors to be able to hear your personalized mix. This unit includes an input to connect the PA or monitor amplifier and an output to connect to the headphones of your choice so you can decided how much of the room you want to naturally hear.
This is a passive device with an input to connect the PA or monitor amplifier and an output to connect the headphones. A volume control regulates the headphone level and internal resistors keep the unit’s impedance high enough to protect the headphones. It also protects the amplifier from encountering too low a load impedance while powering tap units, the speaker system or several tap units by themselves. The HeadTAP will also work with a stereo headphone amplifier for use in recording situations when you want to add headphones for additional performers.
Specifications
- Input Level Stereo/mono input selector button

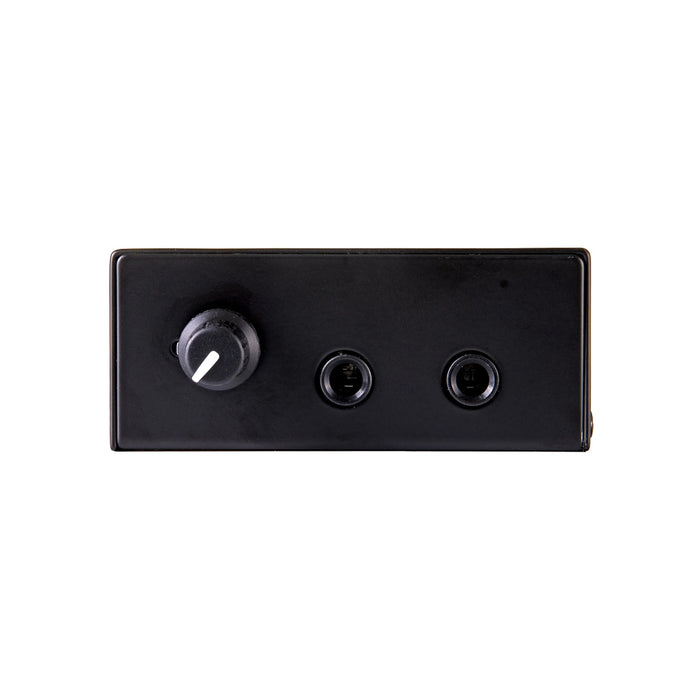

- Output Jack Dual 1/4 in stereo/mono headphone jacks

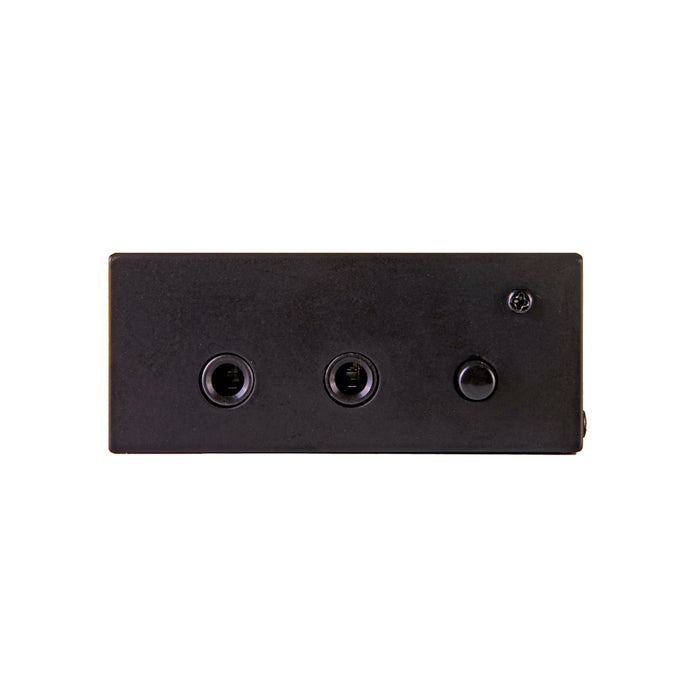

- Instrument Input Dual parallel 1/4" stereo/mono input jacks
- Dimensions 3.75x2.875x1.5 inches (95mm x 74mm x 40mm)
- Weight 0.7lb (317g)
- Power Requirements Passive
