ART SCL2 - Two Channel Compressor / Limiter / Expander / Gate

ART SCL2 - Two Channel Compressor / Limiter / Expander / Gate

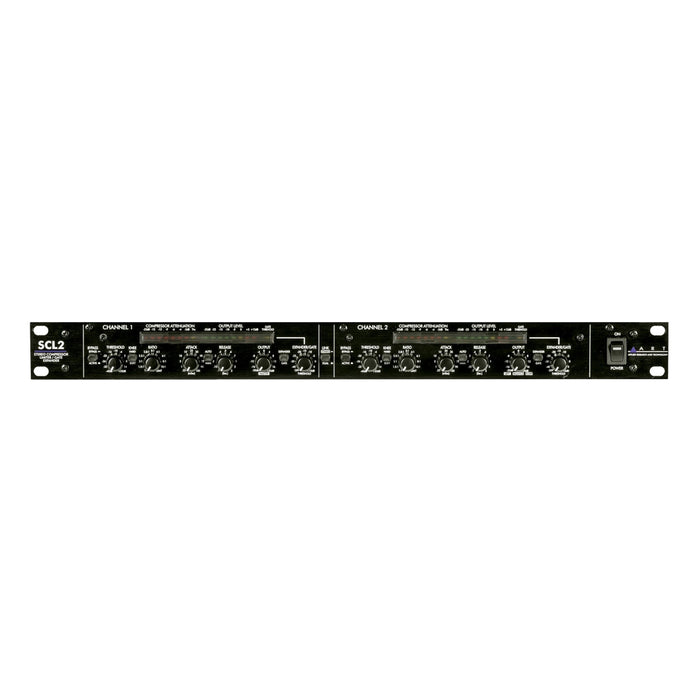

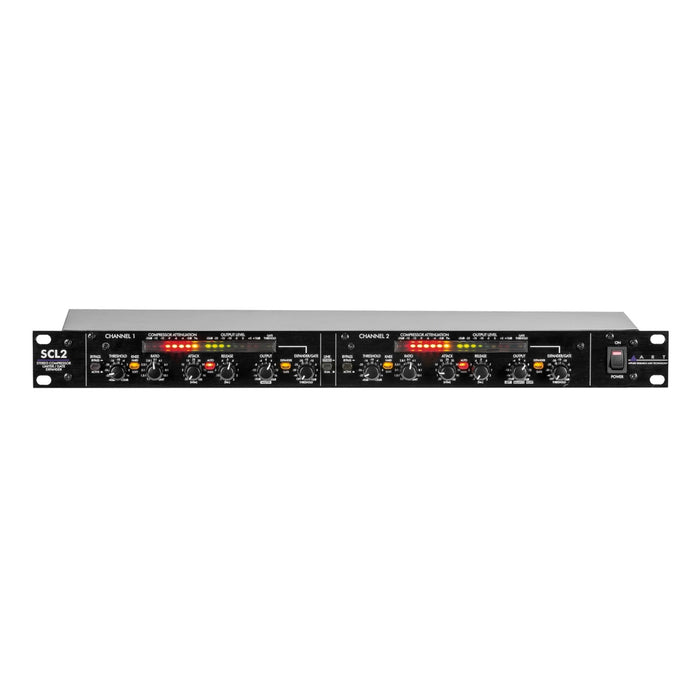

The ART SCL2 is a comprehensive dynamics processor in a 1U rackmount format. It offers two channels with VCA compression, limiting, expansion, gating, and sidechain inputs. Dual LED meters indicate gain reduction, output level, and gate threshold.

Despite this versatility, a streamlined interface makes it easy to dial in the right settings for any task. Each channel has independent switches for bypass, hard-knee or soft-knee compression, manual or automatic control of attack and release, and to toggle between the expander or gate modes. A global switch changes between dual or linked stereo operation.

Designed for live sound, studio, and voiceover applications, the SCL2 is sonically transparent, packed with features, and simple to use.

ART SCL2 Features:

• Dual Channel or Linked Stereo Operation
• 1/4-Inch TRS Side Chain Inserts

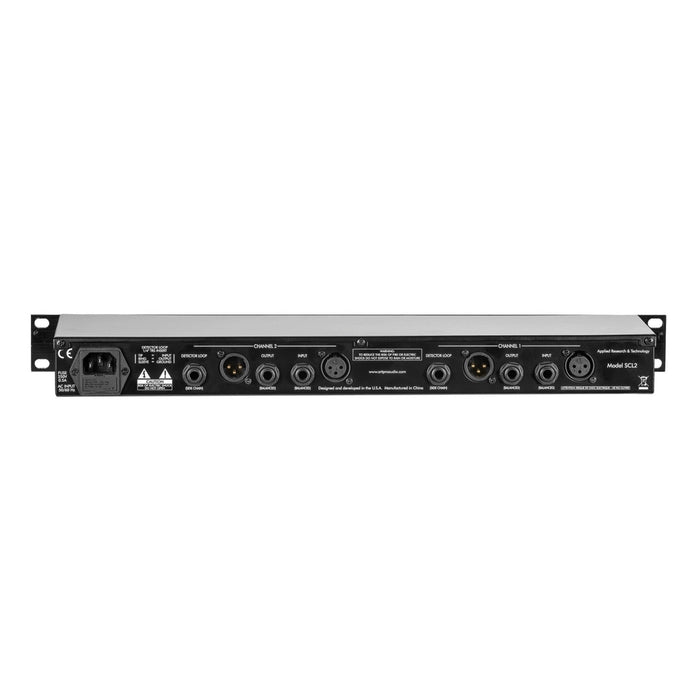

• 1/4-Inch TRS And XLR Balanced Inputs
• 1/4-Inch TRS And XLR Balanced Outputs
• Stereo Mode Balance Control
• Led Gain Reduction Meters
• Selectable Auto/ Manual Attack/Release
• Selectable Hard/Soft Knee
• Precise Led Level Meters
• Internal Power Supply
• All Steel Chassis

ART SCL2 Specifications:

• Input/Output Connections: ¼-inch TRS balanced
• Side Chain Connections: ¼-inch TRS (Tip = Send, Ring = Receive)
• Input Impedance: 10k Ω
• Output Impedance: 200 Ω (bal), 100 Ω (unbal)
• Maximum Input Level: +20 dBu Balanced
• Maximum Output Level: +20 dBu Balanced
• Frequency Response: 10Hz to 40kHz, +/- .5dB
• Dynamic Range: 120 dB
• Attack Time: .25mSec to 100mSec Adjustable
• Release Time: 100mSec to 3 Sec Adjustable
• Total Harmonic Distortion: <0.06% (typical)
• Power Requirements: 120 V 60 Hz/50H, 10W max.
• Dimensions: 4.5 x 48 x 15.2 cm
• Weight: 4.2 lbs (1.9 kg)
