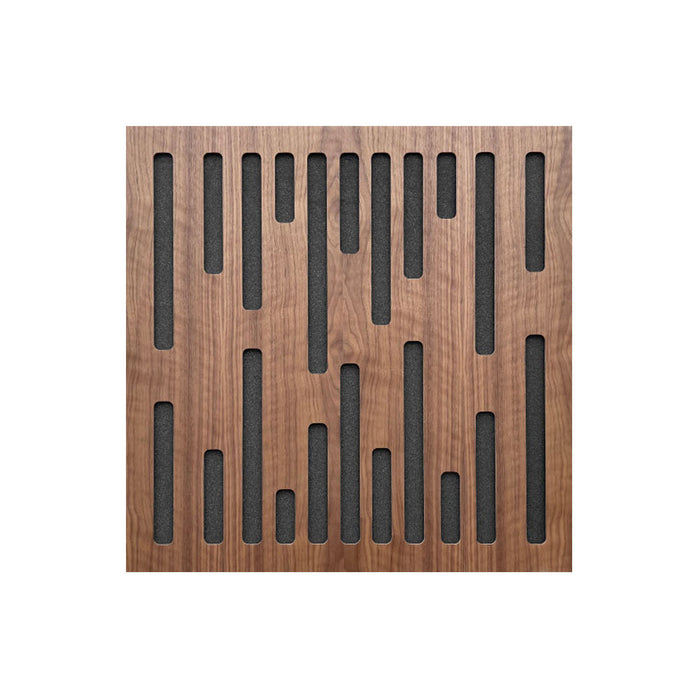

Artnovion Orion W - Bass Trap - Corner 2.0
Artnovion Orion W - Bass Trap - Corner 2.0
The Artnovion Orion Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.
The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - this mass can then be altered to change the resonant frequency of the membrane, increasing the peak performance of the Trap from 58 to 82 Hz.
Each pack contains two panels.
Purpose
- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay
Recommended for
- Control Room
- Recording Room
- Home Studio
- Broadcast Studio
- Production Room
- Drum Room
PRODUCT COMPOSITION:
Orion W - Bass Trap - Corner | Natural wood
- Natural wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam
Orion W - Bass Trap - Corner | Lacquered HMDF
- Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam
Artnovion Orion W Bass Trap Corner Specifications:
- Type: Tuneable Pistonic Diaphragmatic Absorber

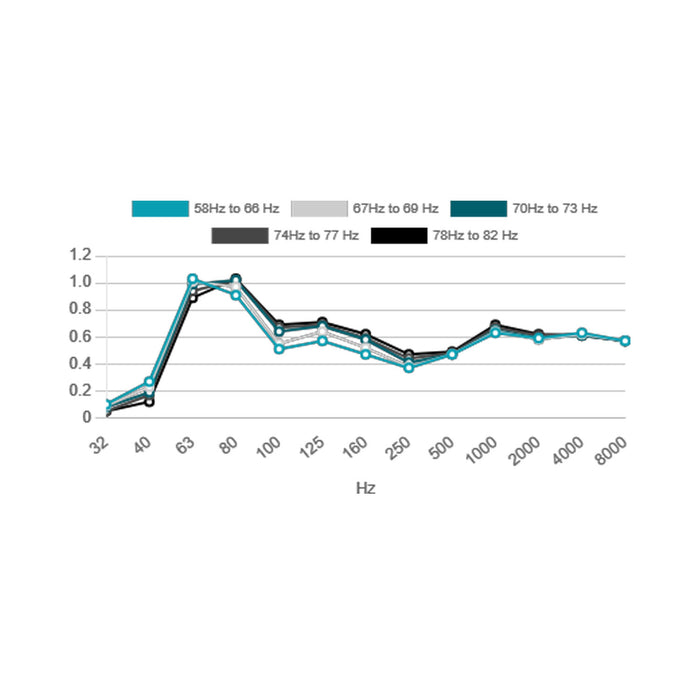

- Tuneable Absorption Range: 58 Hz to 82 Hz
- Fire Rate: FG | Furniture Grade
- Panels per Box: 2
- Dimensions: 595 x 595 x 156mm
