Austrian Audio OC18 Dual Set Plus

Austrian Audio OC18 Dual Set Plus

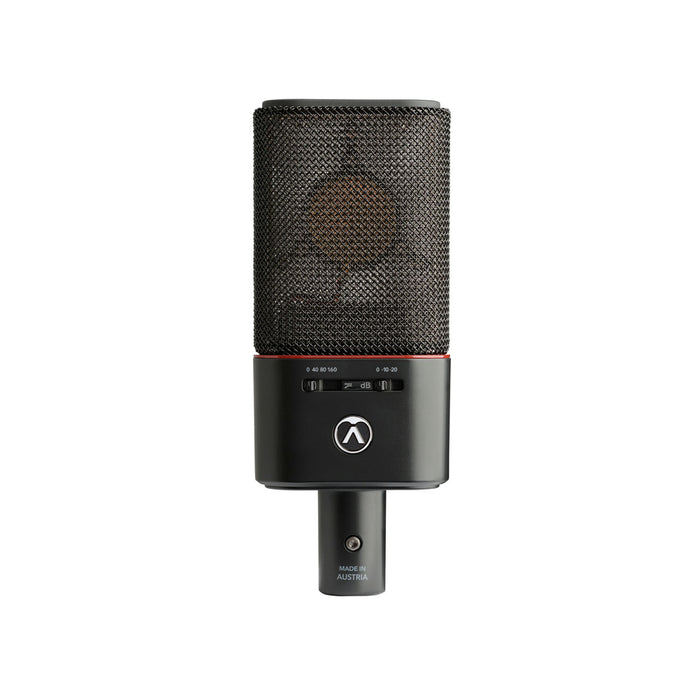

The Austrian Audio OC18 cardioid condenser microphone combines the latest innovation with a proven design to create a reliable, versatile mic that’s guaranteed to be a mainstay of your mic locker.

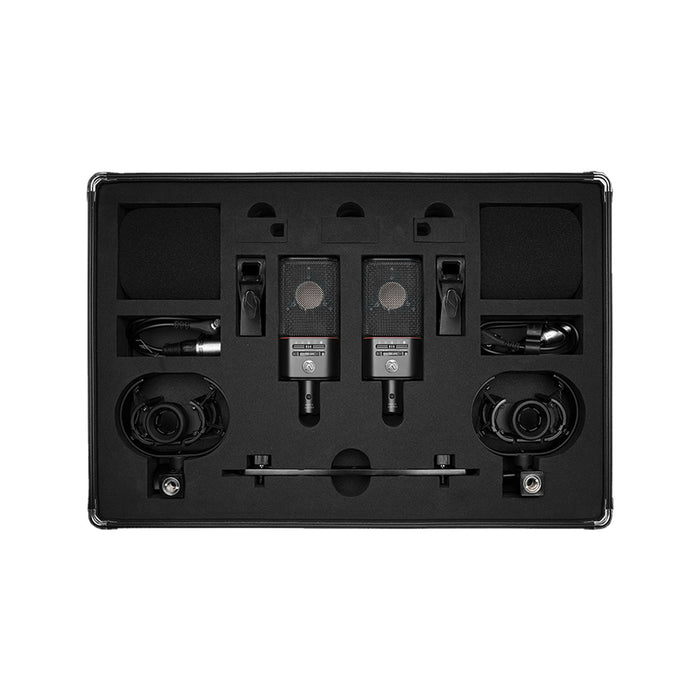

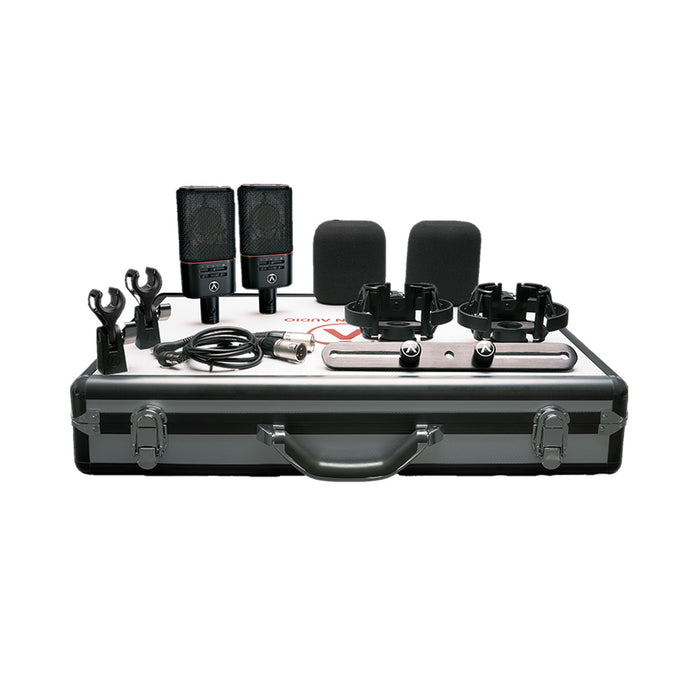

OC18 Dual Set Plus includes: 2x OC18 Microphone, 2x OCS8 Spider mount,  2x OCH8 Mic Clip, 2x OCW8 Windshield, SB1 Stereo mount bar, OCDC1 Case

OC18 Features

• Handmade in CKR6 ceramic capsule
• Open Acoustic technology minimizes internal resonance for a pristine sound
• Matched paired out of the box with any other OC18 or OC818 in cardioid mode for seamless studio pairing
• On-board analog high pass filter (40 Hz, 80 Hz, 160 Hz) and pad (-10 dB, -20 dB)
• Made in Vienna

OC18 Specifications

• Directional characteristic: Cardioid
• Frequency range: 20Hz - 20kHz
• Sensitivity: 13 mV/Pa
• Equivalent noise level: 9 dB (A)
• Max. SPL: 148 dB SPL (158 dB SPL)
• Analog low cut filter: 40Hz (2nd Order), 80Hz (2nd Order), 160Hz (1st Order down to 80Hz, 2nd Order below)
• Switchable pad: -10 dB, -20 dB
• Impedance: 275Ω (symmetrical)
• Load impedance: > 1kΩ
• Supply voltage: 48V (<2.2mA)
• Main connector: XLR 3 pin
• Dimensions: 157 x 63 x 35 mm
• Weight: 335g
