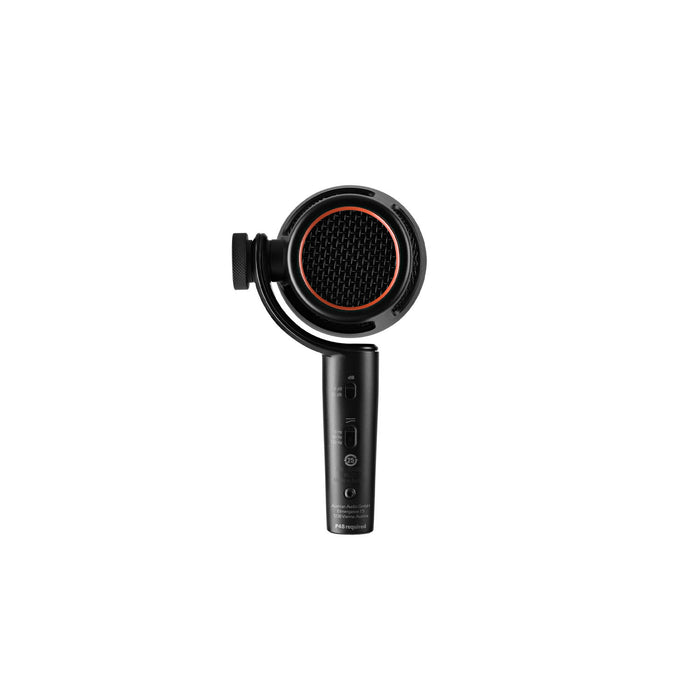

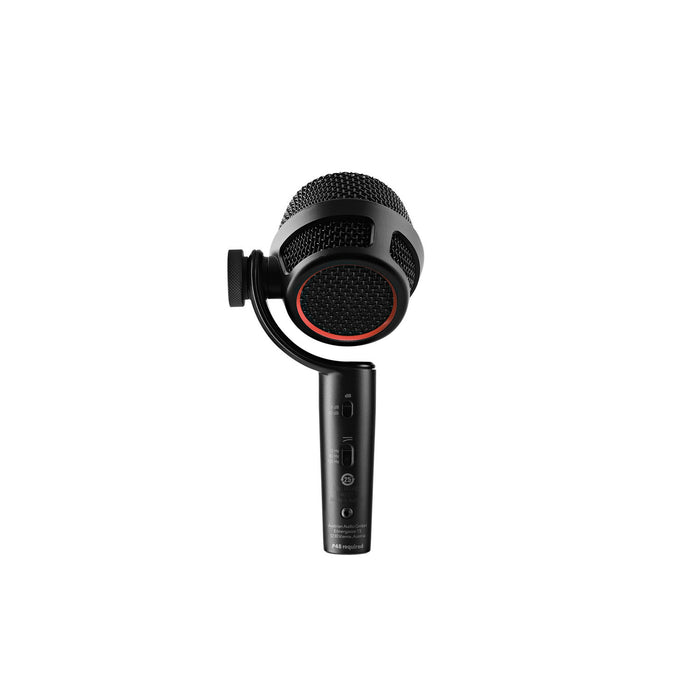

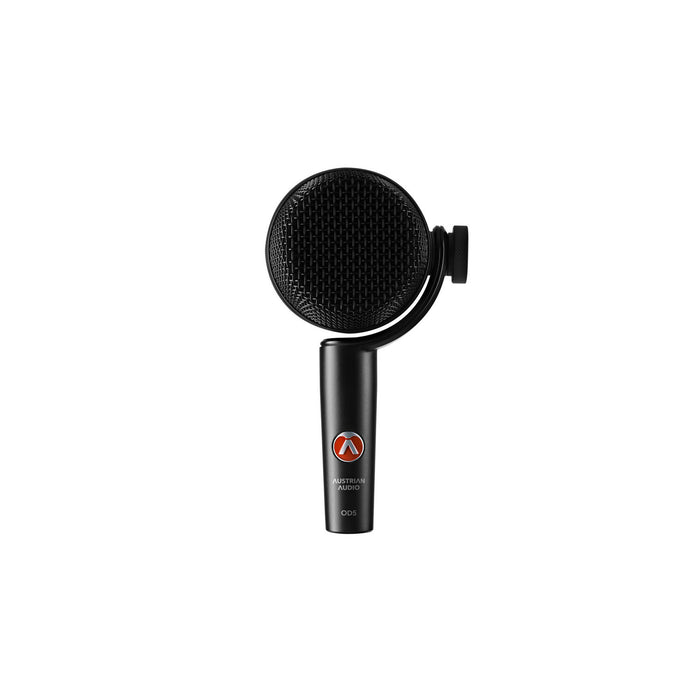

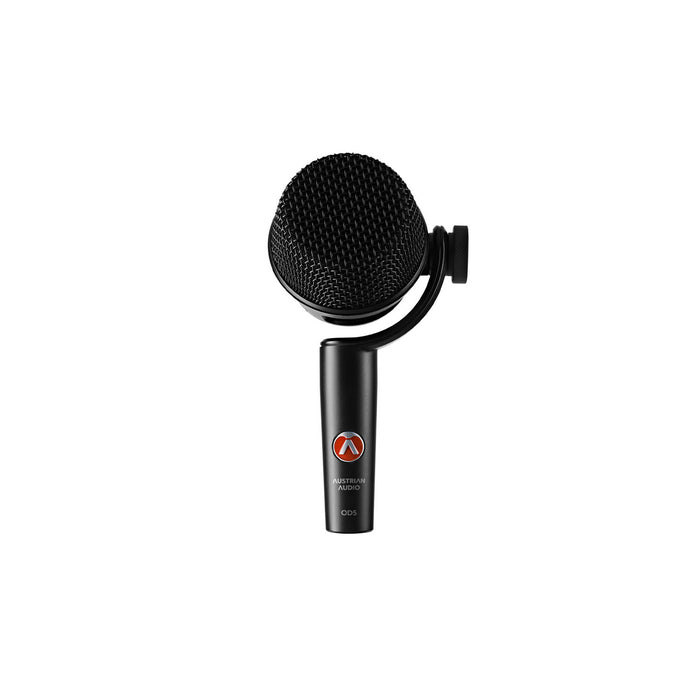

Austrian Audio OD5 - Active Dynamic Instrument Microphone

Austrian Audio OD5 - Active Dynamic Instrument Microphone

The OD5 applies the robust sound quality and stability of Austrian Audio active dynamic technology to a versatile instrument microphone design. Whether you’re tracking in the studio or running long cables to the stage, the OD5’s ODC50 capsule and active dynamic circuitry work together to give you focused, noise-free sound with plenty of headroom and SPL resistance.

The unique swivel joint with 220º rotation lets you place the OD5 in the exact spot you want, and the rugged metal enclosure makes sure the mic stays put and keeps working even after years of use. Handmade at the Vienna facility, the OD5 gives you premium performance—from every angle.

Includes: OD5 Active Dynamic Instrument Microphone, OCH8 Mic Clip, MSC2 Carry Case

Specifications

• Directional characteristic: Cardioid
• Frequency range: 20Hz - 18kHz
• Sensitivity: 6.7 mV/Pa
• Equivalent noise level: 21 dB SPL (A)
• Max. SPL: 151 dB SPL (>160 dB SPL mit pad)
• Low cut filter: 80Hz (2nd Order), 120 Hz (2nd Order)
• Pad: -10 dB
• Impedance: 275 Ω (symmetrical)
• Load impedance: > 1kΩ
• Supply voltage: 48 V (< 1.5 mA)
• Main connector: XLR 3 pin
• Dimensions: 147 x 82 x 54 mm
• Weight: 265g
