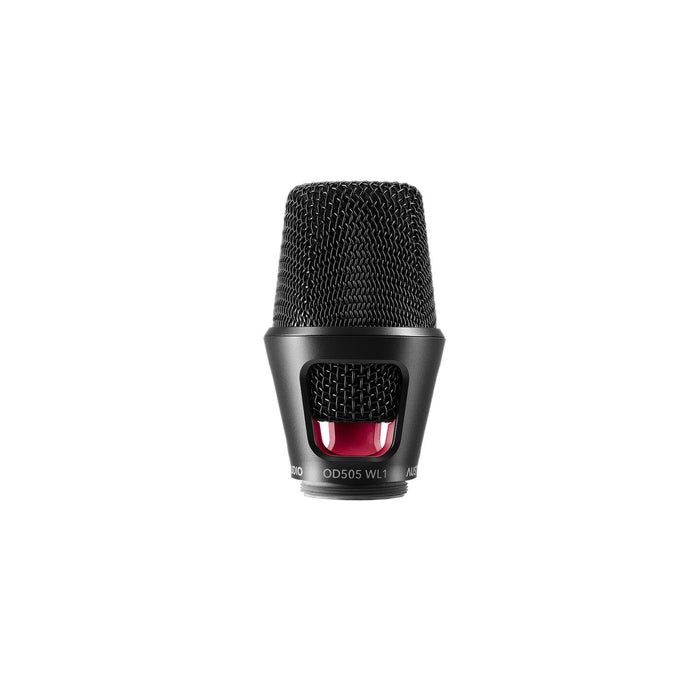

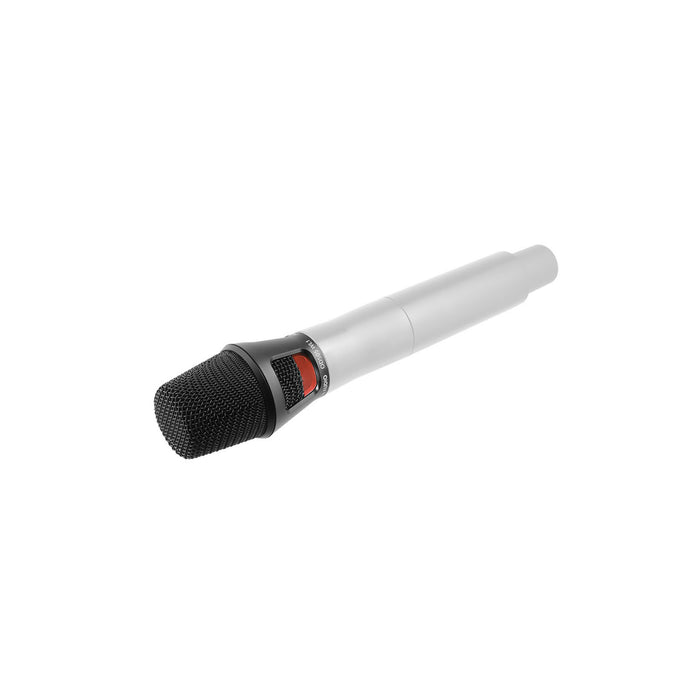

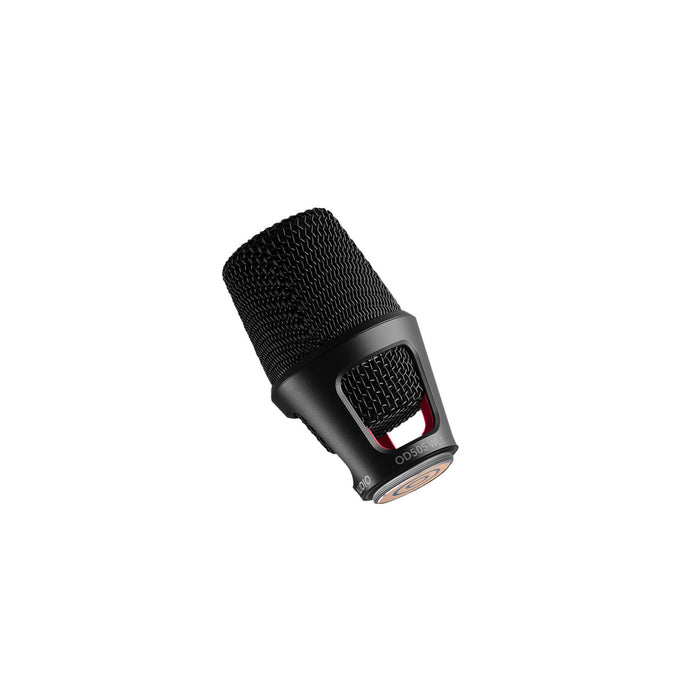

Austrian Audio OD505 WL1 - Active Dynamic Vocal Microphone Capsule
Austrian Audio OD505 WL1 - Active Dynamic Vocal Microphone Capsule
The outstanding sound of the Austrian Audio OD505 vocal microphone with active dynamic circuitry has already won over many FOH engineers, technicians and artists. The OD505 WL1 is the ideal solution for all those who are mobile during their performance and depend on a wireless system, but want to retain the authentic Austrian Audio sound.
The OD505 WL1 is the perfect performance partner for any artist, whether lead or backing vocals. The natural tuning and superb signal quality provide the perfect foundation to bring out the strengths of any voice with minimal tweaks required.
In many live situations, audio bleed is a big problem. That’s why a supercardioid polar pattern was chosen for the OD505. This optimally fades out unwanted interference and focuses on the voice. Spill from ie. drums or other loud instruments in the immediate vicinity is reduced to a minimum.
Austrian Audio’s Open Acoustic sound remains present over the radio transmission.
Specifications
- Directional characteristic: Supercardioid
- Frequency Range: 35 Hz - 16 kHz
- Sensitivity: 4.6 mV/Pa
- Equivalent noise level: 26 dB SPL (A)
- Max. SPL: 150 dB SPL
- Load impedance: > 1 kΩ
- Supply voltage: 5-10 V (< 1 mA)
- Connection: Shure® / Sony / Lectrosonics®
- Dimensions: 92 x 53 x 53 mm
- Weight: 195 g
- Connection: Shure® / Sony / Lectrosonics®
