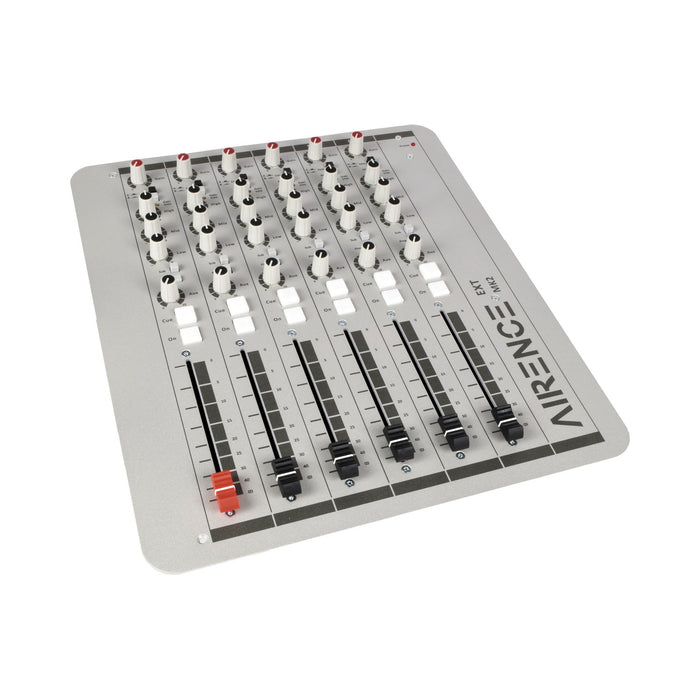

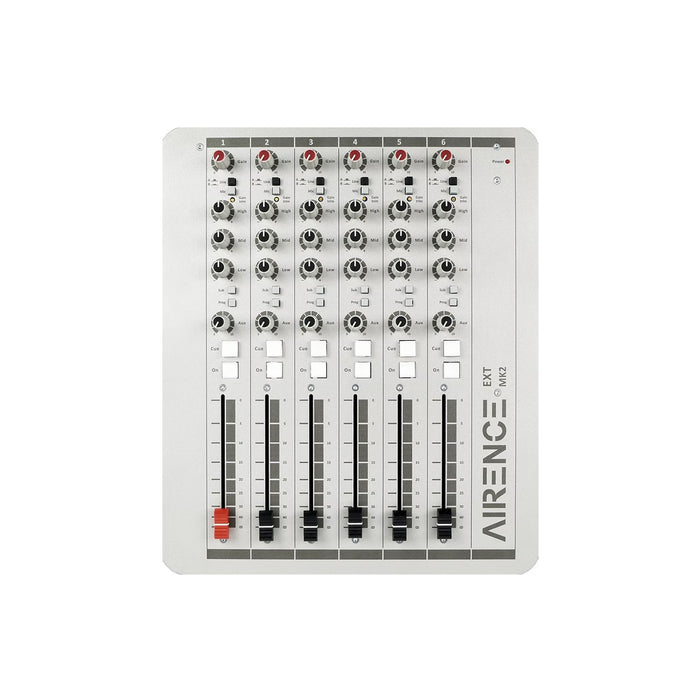

D&R Airence-USB Extension Unit

D&R Airence-USB Extension Unit - 6 channel triple input radio On-Air / Production console

If you need more inputs for the D&R Airence-USB, the Airence-EXT(ender) unit is the perfect solution.

Instantly expand your setup with 6 additional triple inputs, each providing you with a low-noise Mic and 2 stereo line inputs under your control.

D&R Airence-USB Extender Specifications:

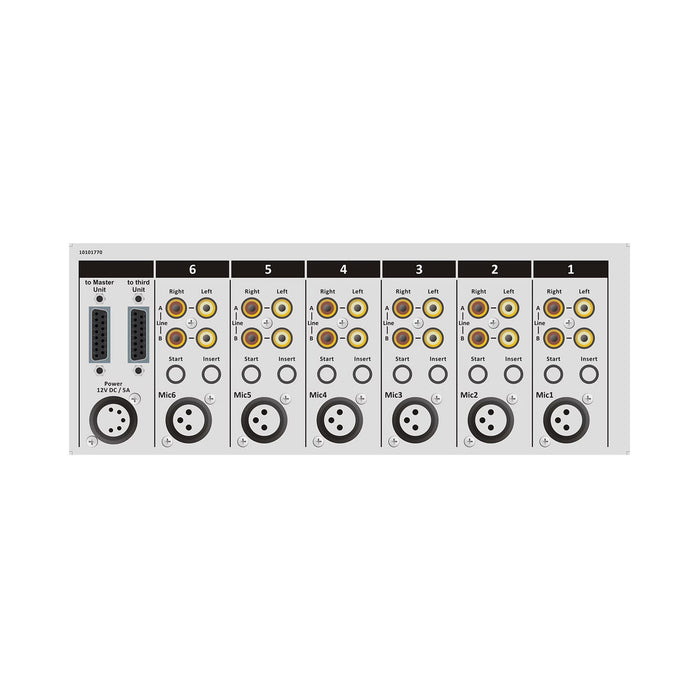

Inputs:

• Mic inputs: Balanced, 2kOhm, XLR; Phantom Power: 48V
• Noise: -128 dBr (A-weighted)
• Sensitivity: Minimum: -70dB; Maximum: 0dB
• Insert: Jack unbalanced send 600 Ohm -10dBV; Aux Return unbalanced 10kOhm -10dBv
• Line inputs: Unbalanced, 10kOhm, Cinch;
• Gain: 40dB
• Phono inputs: Unbalanced, 47kOhm, 5 mV
• External inputs: -10 dBV at 10kOhm
• Aux returns: -10 dBV at 10kOhm (stereo)

USB:

• Fully compliant with USB 2.0 playback and record mode
• HID Functions: Volume/Mute

• 4x Stereo in and 4x stereo out

Telephone hybrids:

• RJ-11 connectors for phone line/dialler
• Mix Minus rejection @1kHz: -60dB.

VoIP hybrids:

• If you have opted for VoIP channels, a USB connector is placed in the lower RJ-11 position.
• The other RJ-11 provides you with a cleanfeed signal on pin 1+4 or a ring signaling control.

Outputs:

• Left/right: +4 dBu balanced, XLR
• Monitor/aux: +4dBu unbalanced on Cinch
• Studio: +6dBu, Jacks
• Tape output: -10dBv
• Headphone: 100-600 Ohm, Jack
• Announcer: 100-600 Ohm, Jack
• USB out: Main program stereo signal or SUB.

EQ:

• High: + / -12 dB at 12kHz shelving
• Mid: + / -12dB at 1 kHz bell curve
• Low: + / -12dB at 60 Hz bell curve

Options:

• AES digital output
• RIAA pre-amp
• VoIP
• Studio remote unit

Dimensions:

• Width: 302mm
• Front panel thickness: 2mm
• Corner radius: 20mm
• Height: 355mm
• Depth: 101.50mm
• Weight: 7kg
• Drop through hole: 270mm x 344mm
• Furniture top panel thickness maximum: 22mm
