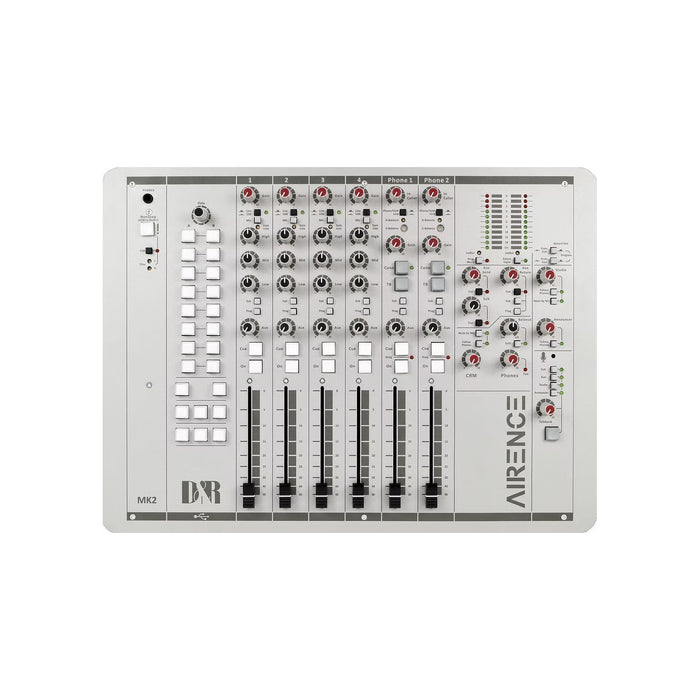

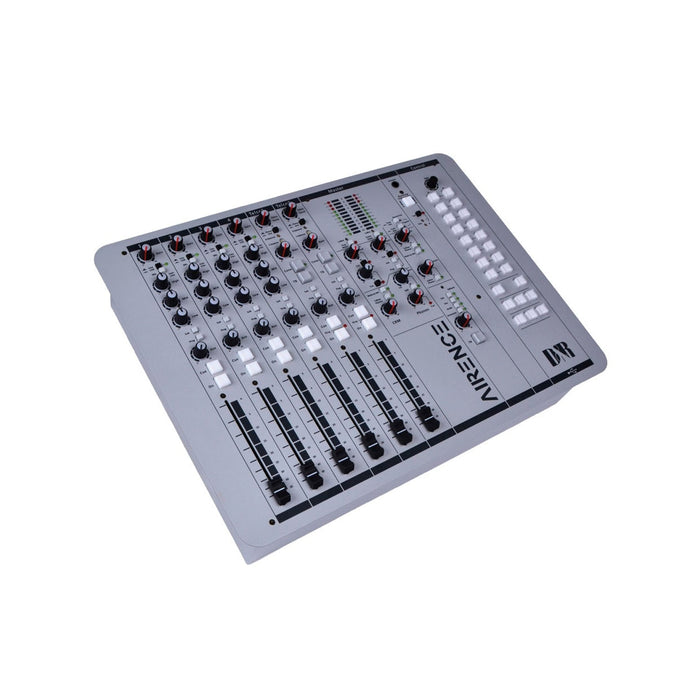

D&R Airence-USB Main Unit
D&R Airence-USB Main Unit - 6 channel triple input radio On-Air / Production console with 4x USB and 2x Hybrids
Upgrade your radio station with the D&R Airence-USB, a modern, split-version radio production mixer designed to meet all your broadcasting needs. Featuring an integrated USB-based control section, this smart mixer is built with well-proven low-noise circuitry, making it the ideal split console for self-op production DJs.
With built-in Telephone Hybrids (POTS), 4 USB channels, and 4 Mic inputs, the Airence-USB is ideal for streaming to the web and seamlessly sending and accepting 4 stereo channels from your Play-out software.
Its heavy-duty (19" rack) RF-shielded chassis is designed to drop seamlessly into your furniture, housing all vertically mounted input modules with K-Alps faders.
Looking to expand your setup? Extension units with six triple input channels, featuring high-end quality Mic inputs on XLR and two stereo line-level inputs on Cinch (RCA) connectors, can be easily connected to the main unit.
Experience the future of radio broadcasting with the Airence-USB modern split drop-through 12 (or 18/24) fader radio console that sets the standard for quality and innovation.
D&R Airence-USB Features:
- Enjoy the flexibility of unlimited input channels for your broadcasting needs.
- The Airence-USB features a split version design for enhanced functionality and ease of use.
- Utilize program and sub busses for efficient audio management.
- Take advantage of the built-in USB control section for seamless integration with your computer.
- Includes studio, announcer, and phones outputs for versatile audio routing.
- Stay connected with bi-directional cue communication.
- Choose between the standard two hybrid (POTS) channels or go for the option of VoIP or WPC (Wireless Phone Channel).
- Experience uninterrupted performance with internal non-stop switching technology.
- Comes with a 12V power adapter for convenient power supply.
- Works seamlessly with both Windows and Apple's OSX operating systems.
- Studio Remote unit / AES digital output (optional)
D&R Airence-USB Specifications:
Inputs:
- Mic inputs: Balanced, 2kOhm, XLR; Phantom Power: 48V
- Noise: -128 dBr (A-weighted)
- Sensitivity: Minimum: -70dB; Maximum: 0dB
- Insert: Jack unbalanced send 600 Ohm -10dBV; Aux Return unbalanced 10kOhm -10dBv
- Line inputs: Unbalanced, 10kOhm, Cinch;
- Gain: 40dB
- Phono inputs: Unbalanced, 47kOhm, 5 mV
- External inputs: -10 dBV at 10kOhm
- Aux returns: -10 dBV at 10kOhm (stereo)
USB:
- Fully compliant with USB 2.0 playback and record mode
- HID Functions: Volume/Mute
-
4x Stereo in and 4x stereo out
Telephone hybrids:
- RJ-11 connectors for phone line/dialler
- Mix Minus rejection @1kHz: -60dB.
VoIP hybrids:
- If you have opted for VoIP channels, a USB connector is placed in the lower RJ-11 position.
- The other RJ-11 provides you with a cleanfeed signal on pin 1+4 or a ring signaling control.

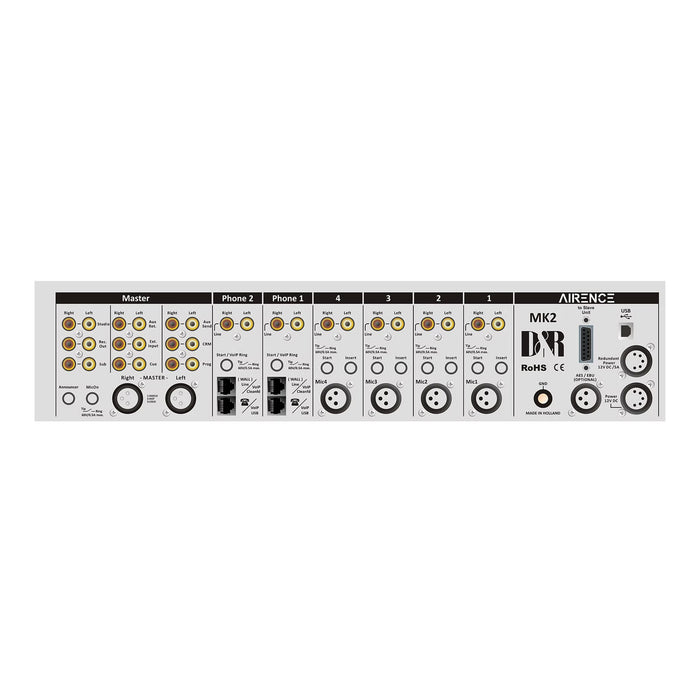

Outputs:
- Left/right: +4 dBu balanced, XLR
- Monitor/aux: +4dBu unbalanced on Cinch
- Studio: +6dBu, Jacks
- Tape output: -10dBv
- Headphone: 100-600 Ohm, Jack
- Announcer: 100-600 Ohm, Jack
- USB out: Main program stereo signal or SUB.
EQ:
- High: + / -12 dB at 12kHz shelving
- Mid: + / -12dB at 1 kHz bell curve
- Low: + / -12dB at 60 Hz bell curve
Options:
- AES digital output
- RIAA pre-amp
- VoIP
- Studio remote unit
Dimensions:
- Width: 482mm
- Front panel thickness: 2mm
- Corner radius: 20mm
- Height: 355mm
- Depth: 101.50mm
- Weight: 9kg
- Drop through hole: 450mm x 344mm
- Furniture top panel thickness maximum: 22mm
