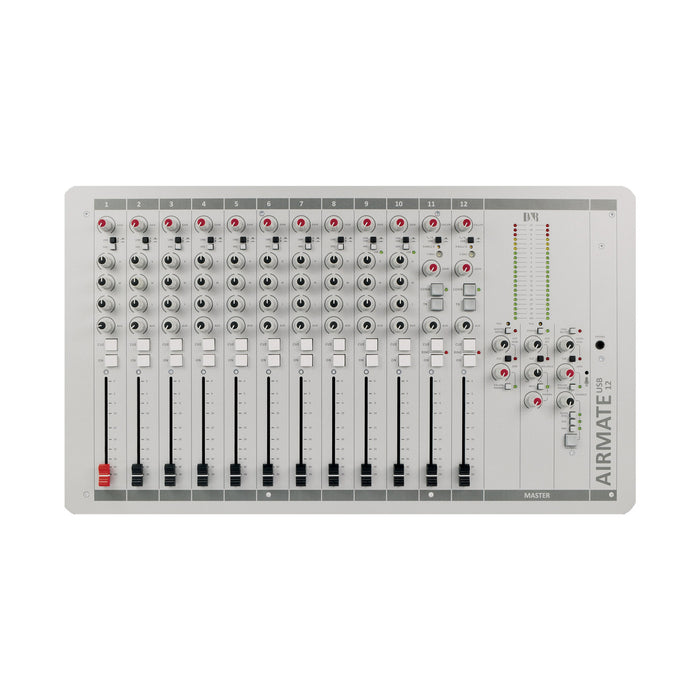

D&R Airmate-USB - 12 channels

D&R Airmate-USB - 12 channels

by D&R Electronica
£3,090.00 - £3,090.00
£0.00
£3,090.00 inc. VAT
£3,090.00 - £3,090.00
£3,090.00 inc. VAT
ex. VAT
SKU SD&RAIRMATEUSB12
Please contact us for availability.

D&R Airmate-USB - 12 channel triple input radio On-Air / Production console with 2x USB and 2x Hybrids

Designed to meet the exacting demands of radio production, the D&R Airmate-12 is the ultimate choice for self-operating DJs.

With standard internal two Telephone Hybrid (POTS) and USB connection to your PC for seamless web streaming, the Airmate-12 ensures professional-grade performance every time.

Featuring the extra options like WPC (Wireless Phone Channel), AES output and suitable for many VoIP applications, the Airmate-12 offers unparalleled versatility.

The Airmate-12 boasts eight input channels, each equipped with high-quality balanced microphone inputs on XLR, along with two stereo line-level inputs on Cinch (RCA) connectors.

D&R Airmate-USB 12 Features:

  • Equipped with 12 vertical triple input modules for versatile audio input handling.
  • Includes 10 balanced mic inputs with phantom power support for professional audio capture.
  • Seamless USB connectivity for direct PC streaming and integration.
  • Built-in standard telephone hybrids (POTS) to manage phone-based audio inputs.
  • Suitable for many VoIP applications and Wireless Phone Channel (WPC) integration for expanded connectivity.
  • Features fader start functionality for ON-AIR light control.
  • 3-band equalizer with Aux send/return for precise audio adjustments.
  • Compatible with both analog and digital hybrid audio sources.
  • Optional RIAA phono pre-amp board available for vinyl inputs.
  • Optional Digital AES/EBU outputs for high-quality digital audio connections.

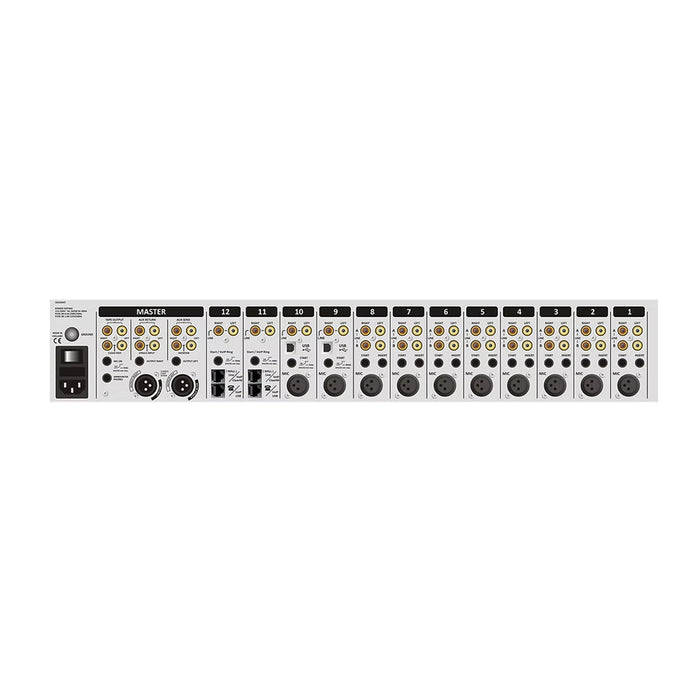

  • Extensive connectivity options with XLR, RCA, and Jack connectors for versatile interfacing.

D&R Airmate-USB 12 Specifications:

Inputs:

  • Mic inputs: Balanced, 2kOhm, XLR; Phantom Power: 48V
  • Noise: -122 dBr (A-weighted)
  • Sensitivity: Minimum: -70dB; Maximum: 0dB
  • Insert: -10dBv in/out
  • Line inputs: Unbalanced, 10kOhm, Cinch
  • Gain: 40dB
  • Phono inputs: Unbalanced, 47kOhm, 5 mV
  • 2 track return: -10 dBV at 10kOhm
  • Aux returns: -10 dBV at 10kOhm (stereo)

USB:

  • Fully compliant with USB 2.0 playback and record mode.
  • HID Functions: Volume/Mute

Telephone hybrids:

  • RJ-11 connectors for phone line/dialler
  • Mix Minus rejection @1kHz: -60dB.

Outputs:

  • Left/right: +4 dBu balanced, XLR
  • Monitor/aux: +4dBu unbalanced on Cinch
  • Cleanfeed/announcer: +4dBu, Jacks
  • Tape output: -10dBv unbalanced, Cinch
  • Headphone: 100-600 Ohm, Jack
  • Announcer: 100-600 Ohm, Jack

EQ:

  • High: + / -12 dB at 12kHz shelving
  • Mid: + / -12dB at 1 kHz bell curve
  • Low: + / -12dB at 60 Hz bell curve

Options:

  • AES/EBU digital stereo output and AES digital 2 track input plus existing analog outputs on 2 jacks.
  • RIAA pre-amp on line input B for phono cartridges
  • VoIP
  • Studio remote unit

Overall:

  • Frequency response: 10 - 60.000Hz
  • Distortion: < 0.009% max at 1 kHz
  • Start switch: Reed relay
  • Ledbars: 21 segment
  • Power consumption: 30VA

Dimensions:

  • Left-right rack-mountable (722mm width).
  • Front-back: 356mm (8HE).
  • Height: 105mm.
  • Space below front panel: 20mm for tabletop.
  • Weight: 14 kg.
