DPA 4099 CORE+ Rock Touring Kit (KIT-4099-DP-4R)

DPA 4099 CORE+ Rock Touring Kit (KIT-4099-DP-4R)

by DPA Microphones
£0.00 - £0.00
£0.00
£2,499.00 inc. VAT
£2,499.00 - £2,499.00
£2,499.00 inc. VAT
ex. VAT
SKU SDPAKIT4099DP4R
Please contact us for availability.

DPA 4099 CORE+ Rock Touring Kit, 4 Mics and accessories, Extreme SPL

The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument. 

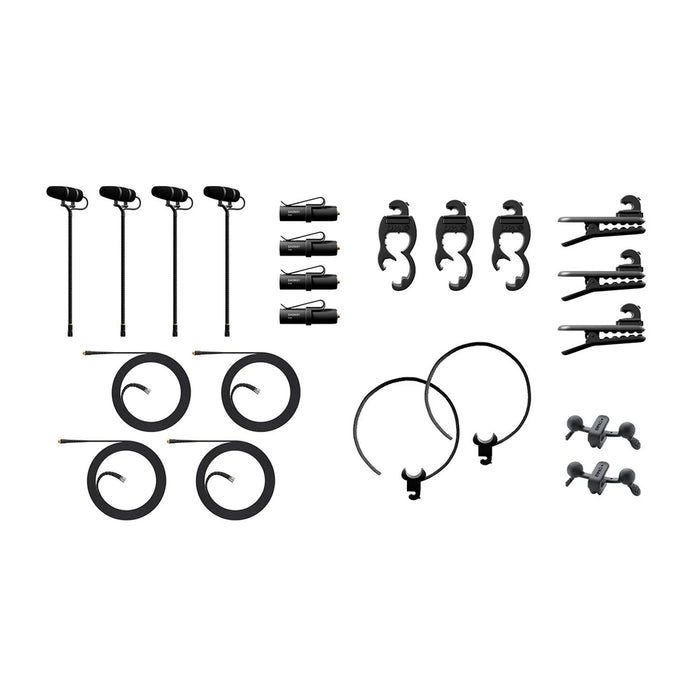

KIT-4099-DP-4R Rock Touring Kit contains:

  • 4 x 4099-DP-2 Instrument Microphone, Extreme SPL
  • 4 x MicroLock Extension Cable, 2.2 mm / 0.09 in
  • 4 x DAD9001 MicroLock to 3-pin XLR with Belt Clip
  • 3 x Microphone Clip for Drum
  • 2 x Microphone Clip for Sax
  • 2 x Universal Microphone Clip
  • 3 x Clamp Mount Microphone Clip

Features:

  • CORE+ technology
  • High SPL handling
  • Wide dynamic range
  • Supercardioid pick up pattern
  • Superior gain before feedback
  • MicroLock connector
  • IP58 certified
  • Advanced, flexible clip program

Specifications (4099 CORE+ Extreme SPL):

  • Directional pattern: Supercardioid
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB, at 20 cm: 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 2 mV/Pa; -54 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))
  • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
  • Dynamic range: Typ. 109 dB
  • Max. SPL, THD 10%: 152 dB SPL peak
  • Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
  • CMRR: > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapte
  • Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
  • Weight: 17 g (0.60 oz)
  • Microphone diameter: 5.7 mm (0.22 in)
  • Microphone length: 45 mm (1.8 in)
