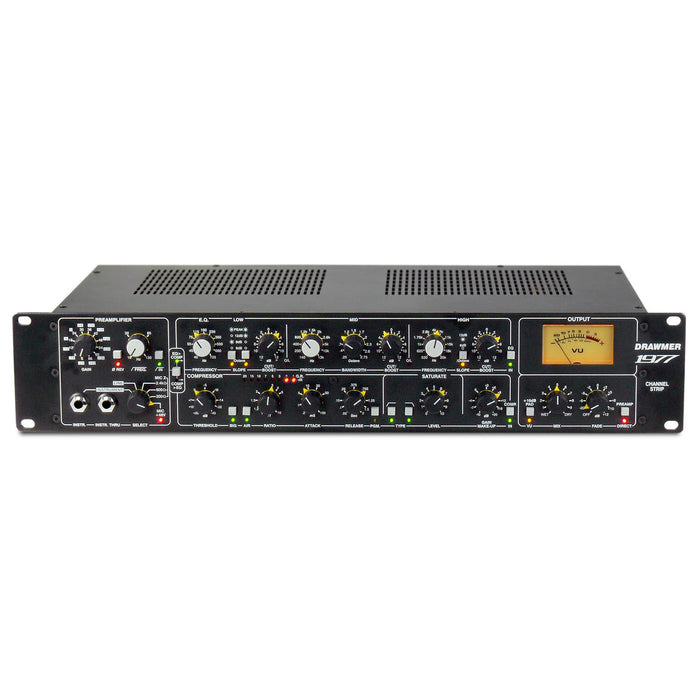

Drawmer 1977 Channel Strip

Drawmer 1977 Channel Strip

If you’re looking to add vintage characteristics and analogue musicality to your recordings then look no further than the 1977, Drawmer’s most comprehensive channel strip to date.

The 1977 gives you the clarity of an ultra-clean preamplifier, the precision of the three-band parametric equaliser, the silkiness of the soft knee compressor and added to this the ability to dial in as much warmth as you desire via the 3 types of variable harmonic saturation.

The 1977 incorporates a true 'parametric' equaliser which takes it’s inspiration from 1970’s-era analogue gear, with three bands of fully variable frequency control and cut and boost of +/-12dB's and, in addition, a fully variable bandwidth control of the mid-band, making it incredibly versatile and capable of modifying everything from subtle fine-tuning to tone sculpting problematic recordings, and, of course, anything in between.

A full-featured compressor allows you to control the dynamics of your recordings and our trademark 'Big' and 'Air' modes help to preserve the very deep lows and enhance the sparkling highs that lesser compressors remove.

The output section includes a wet/dry mix for parallel processing that allows you to easily dial in how much EQ, compression and saturation is used via a single knob, plus an output fade control to either add fade outs or to boost the level to match high end audio interface audio input levels, along with a large backlit VU meter for accurate monitoring. And finally, a Preamp Direct switch that bypasses the EQ, compressor and saturation completely to provide an ultra clean microphone output.

Drawmer 1977 Features:

• A THAT Corporation ultra clean mic preamplifier with 66dB of gain with phantom power and switchable mic impedance for accurate mic matching.

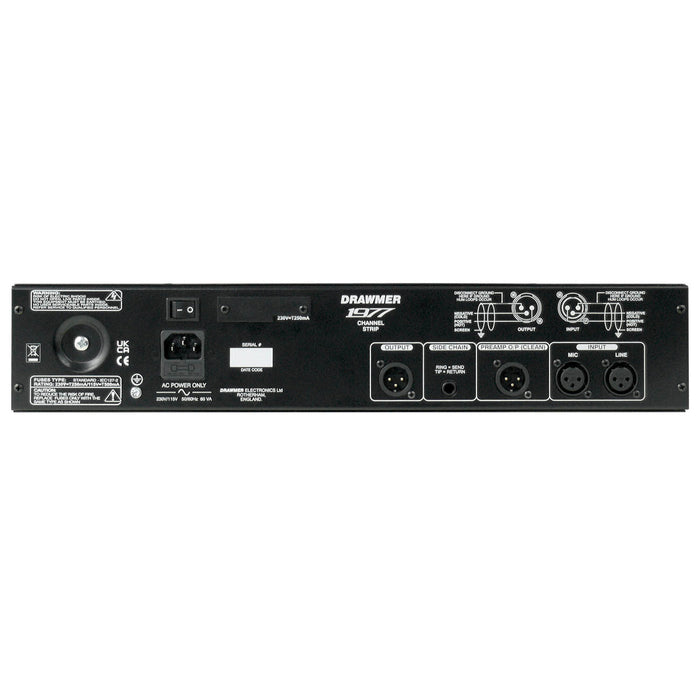

• Separate Line & Mic input XLR’s and pro quality instrument DI input with through output. Plus an XLR for the dedicated ultra clean direct pre-amp output and also for the overall output.
• FETs can be bypassed altogether to provide ultra clean outputs.
• A variable high pass filter control removes any rumble and allows you to tighten up the bottom end Phase reverse.
• Vintage-style three band full parametric EQ which takes it’s inspiration from 1970’s-era analogue gear, with variable frequency, +/-12dB cut and boost and variable bandwidth. Switchable slopes plus low peak settings allows you to adjust the focus and also magnify the bottom and top ends.
• Compressor includes standard controls and also ‘Big’ and ‘Air’ Modes Help to preserve the very deep lows and enhance the sparkling highs.
• Rear panel Side-chain insert point provides even further control.
• 3 types of variable Saturation adds vintage warmth.
• The order of the EQ and Compressor can be swapped and also each can bypassed to allow for comparisons.
• Variable Wet/Dry Mix plus Output Gain knobs give a ‘Parallel E.Q. and Compression’ function without the need for external mixing devices, providing complete and effortless control over the amount of equalisation and compression used and output levels.
• A backlit Analogue V.U. Meter with Switchable +10dB Rescale Mode.
• Time delay relays on the output for clean power up/down.
