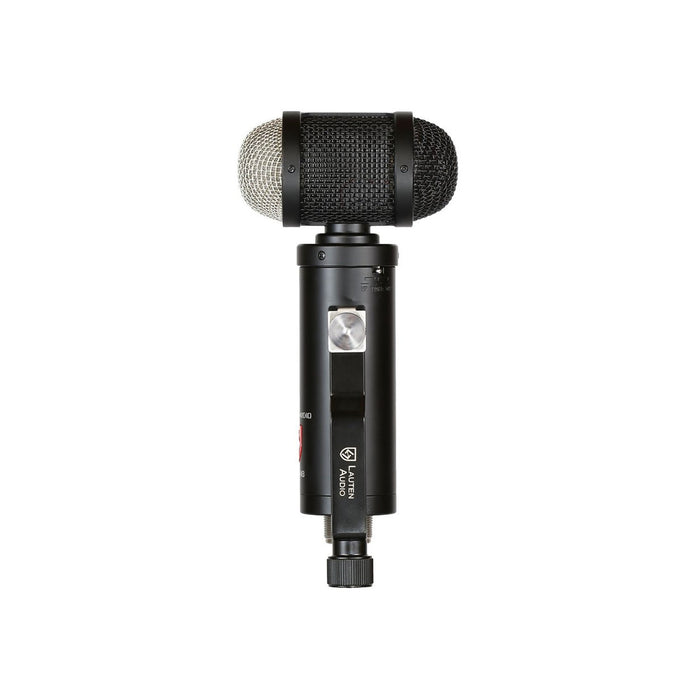

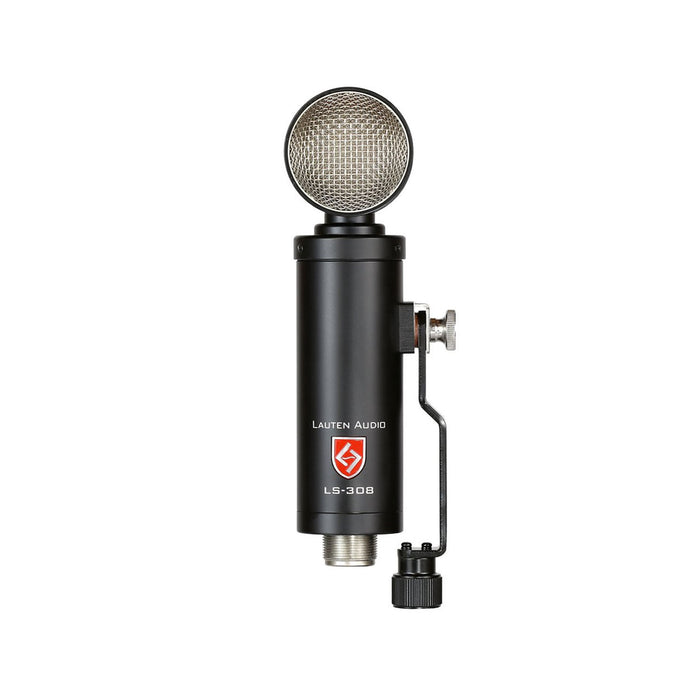

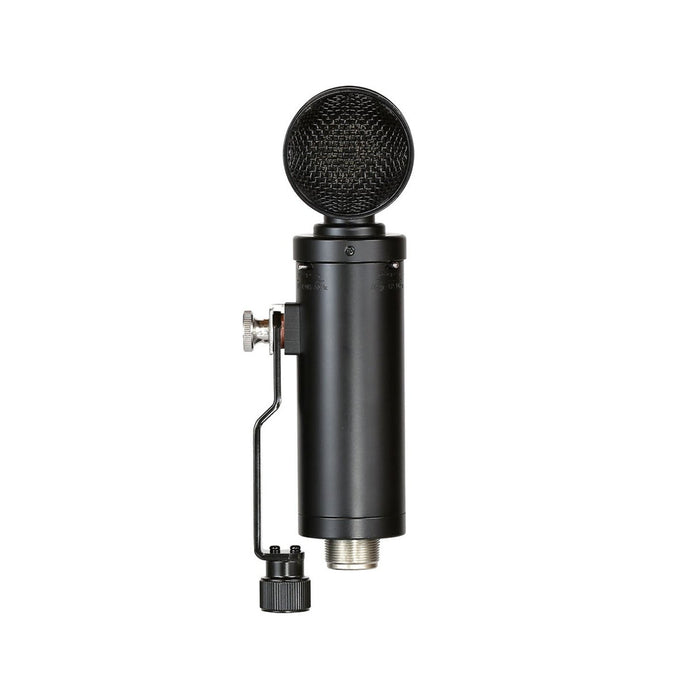

Lauten Audio LS308 - Large-Diaphragm Condenser Microphone
Lauten Audio LS308 Noise-Rejecting, Large-Diaphragm Condenser Microphone
The Lauten Audio LS308 is a one-of-a-kind, side-address condenser microphone which hears like a laser, sounds like a ribbon, and is able to withstand a staggering 135dB of SPL without internal padding.
UNMATCHED ISOLATION
270 degrees of off-axis rejection allows you to confidently capture loud, impactful sounds live without the need to replace toms or re-track guitars due to bleed.
DARK BY DESIGN
Creating a microphone with such strong off-axis rejection had a unique timbral side-effect - a sound similar to a ribbon microphone but without the fragility.
HIGH SPL & DYNAMIC RANGE
Capable of withstanding a staggering 135dB of SPL without internal padding, the LS-308 is nearly impossible to overload. Capture the loudest sound sources reserved for dynamic microphones with ease.
PREMIUM COMPONENTS
The LS-308 signal path is finalized with high-resolution, low-distortion polypropylene capacitors and resistors, a US-made low-noise FET, and a custom wound output transformer.
Features
- Professional noise-rejecting microphone
- Designed for use in challenging recording situations, where isolation is difficult to achieve
- Large-diaphragm condenser
- 270° degrees of off-axis sound rejection
- Internally shock mounted transducer elements to help reduce rumble and handling
- Full 120dB (135dB total) of dynamic range without the need of additional attenuation
- Independent 2-stage low and high-cut frequency switches
- Internally shock mounted pressure gradient condenser elements
Specifications
-
TYPE: SIDE-ADDRESS PRESSURE GRADIENT
FET CONDENSER - CAPSULE: 32MM
- POLAR PATTERNS: SECOND-ORDER CARDIOID
- FREQ. RESPONSE: 20HZ - 20KHZ (ROLL OFF BEGINS AT 7KHZ DUE TO REJECTION
- DYNAMIC RANGE: 135DB MINIMUM
- MAX. SPL: >135DB (0.5%THD@1000HZ)
- IMPEDANCE: >150 OHMS
- SELF-NOISE LEVEL: < 15DB-A
- SENSITIVITY: 10.5M/PA -46DBV (0DB=1V/PA 1KHZ)
- CONNECTOR: 3-PIN XLR
- POWER: REQUIRES 48V PHANTOM POWER
