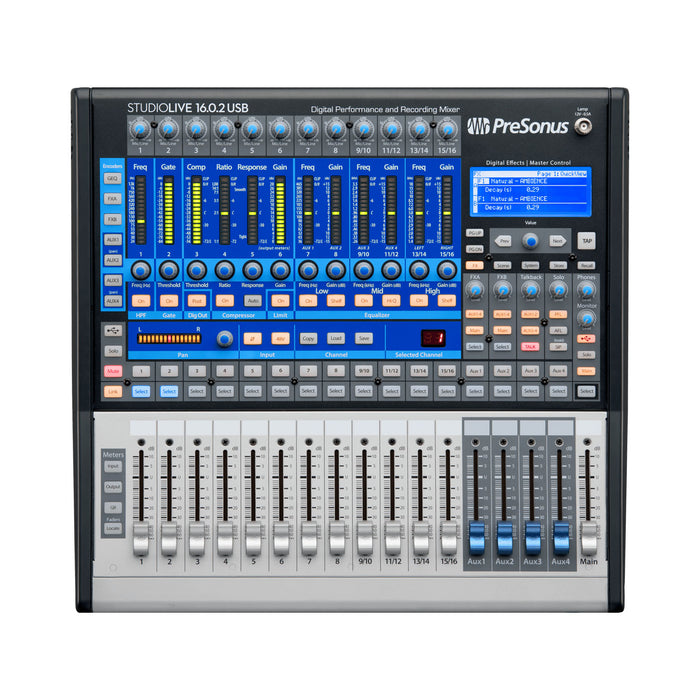

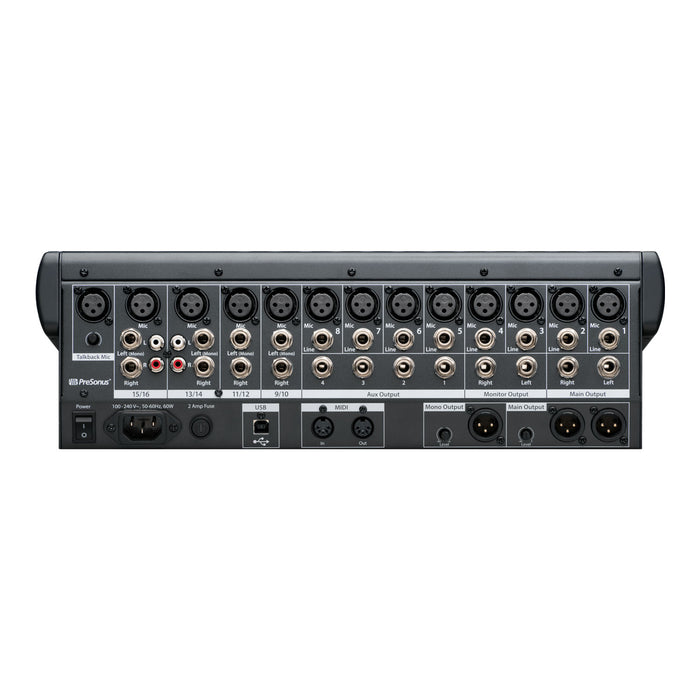

PreSonus StudioLive 16.0.2 USB Digital Console Mixer

PreSonus StudioLive 16.0.2 USB Digital Console Mixer

The PreSonus StudioLive 16.0.2 USB is a great choice for small churches, schools, bands, and clubs, and it's perfect for a small studio on a budget. It features 16 channel inputs, 4 of them stereo channels, and 12 with XMAX mic preamps; a built-in 18x16 USB 2.0 interface; extensive signal processing on every channel and bus; 4 aux buses; extensive metering; Scene and setting save/recall; MIDI control; and more. Yet it's lightweight and rack-mountable, operates much like an analog console, and delivers superb audio quality. It comes with PreSonus' Universal Control software, Capture recording software, QMix-UC aux control app, Fender Studio Pro perpetual license.

Features

• 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
• 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
• On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
• Stereo, 31-band graphic EQ on the main bus
• 18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
• MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
• Software library includes PreSonus Fender Studio Pro Pro DAW and Capture live-recording software for Mac and Windows and Universal Control mixer-control software for Mac, Windows, and iPad. QMix-UC touch wireless aux-control software for iPhone, iPod touch, and Android are also available free.
• Professional Recording Software Included - Fender Studio Pro License

Specifications

Input

• Line Input Connection Type: 1/4" TRS Female, Balanced
• Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Line Inputs Gain Range: -20 dB to +20 dB (± 1 dB)
• Line Inputs Impedance: 10 kΩ
• Line Inputs Maximum Level: =+22 dBu (Unity Gain)
• Line Inputs Signal To Noise Ratio: 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
• Mic Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
• Mic Preamp Equivalent Input Noise: +125 dB Unweighted, +130 dB A-Weighted
• Mic Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Mic Preamp Input Impedance: 1 kΩ (balanced)
• Mic Preamp Maximum Input Level: +12 dBu (Unity Gain)
• Mic Preamp Signal To Noise Ratio: -95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Mic Preamp Total Harmonic Distortion: 0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Output
