The PreSonus StudioLive 24R is a compact 40-channel digital mixer delivering powerful, flexible mixing. Use it standalone with Universal Control software, as a stage box with StudioLive Series III consoles, or with EarMix 16M personal mixers. It’s also a 128-channel (64x64) bidirectional USB audio interface with vintage-modeled dynamics and EQ plug-ins on every input and bus.
With 16 FlexMixes configurable as auxes, subgroups, or matrix mixes, plus four effects buses and four subgroups, routing adapts to any workflow. 24 DCAs provide fast, flexible group control. Powered by the single-core PreSonus FLEX DSP Engine, it offers 40 mixing channels, 22 buses, and 270 processors including Fat Channel plug-ins.
The USB interface enables easy multitrack recording and plug-in routing, with playback streams activated instantly by one button for effortless monitoring. Digitally recallable preamps and vintage-modeled EQ and compression run natively and inside Fender Studio Pro.
A free firmware update adds Milan certification, an improved limiter with variable release, and expanded Digital Reverb XL controls with new presets—offering enhanced power and precision. With this firmware update, you also get the 7 additional State Space Models EQs (10 total) and 8 analog-inspired compressors (11 total) from the Fat Channel Collection installed standard, adding even more processing to create studio-quality mixers for your live session.
Features
- Dual-core FLEX DSP Engine powers 286 processors—most in its class

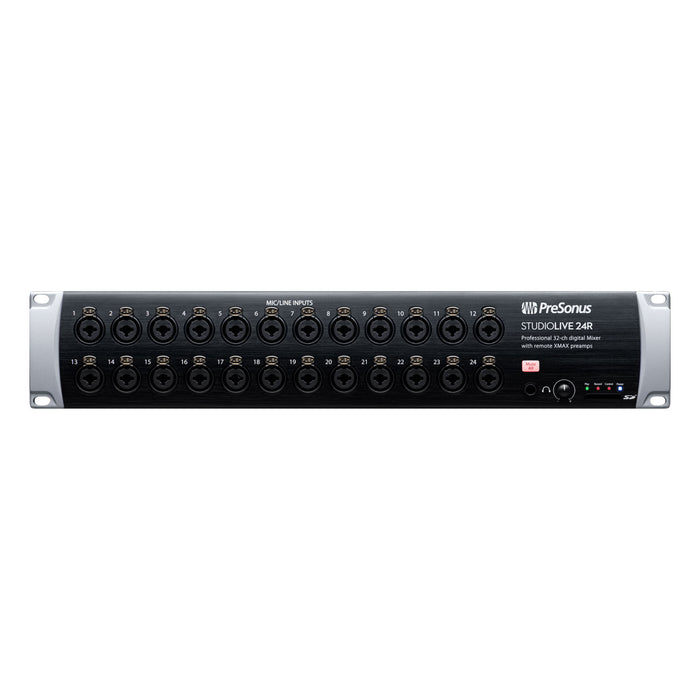

- 40-channel rack mixer with 24 XMAX-R mic/line inputs + FLEX FX returns
- 26 mix buses: 16 FlexMixes (aux, subgroup, matrix), 4 FX buses, stereo main
- State Space Modeled Fat Channel EQ & compressors on every channel and bus
- 4 FLEX FX slots with classic reverb & delay effects
- 24 DCAs for fast group control
- 128-channel USB recording + onboard SD recorder with Virtual Soundcheck
- AVB networking for seamless StudioLive, NSB, EarMix integration
- Remote mix control via Universal Control & QMix-UC apps
- Includes Capture Multitracking and Fender Studio Pro license for pro recording
- Optional Dante available with AVB-D16
Specifications
Input
- Line Input Connection Type: RCA Female, Unbalanced (Stereo Pair)
- Line Inputs Maximum Level: +12 dBu, ±0.5 dBu
- Mic Input Connection Type: Combo Locking XLR Mic - 1/4” TRS Line
- Mic Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
- Mic Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Mic Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
- Mic Preamp Input Impedance: 1 kΩ
- Mic Preamp Maximum Input Level: =+12 dBu (Unity Gain)
- Mic Preamp Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Mic Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Output
- Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
- Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω Load
- Headphone Outputs Signal To Noise Ratio: 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Line Outputs Connection Type: 1/4" TRS, Balanced
- Line Outputs Maximum Output Level: =+18 dBu, ±0.5 dBu
- Line Outputs Output Impedance: 100 Ohms
- XLR Outputs Maximum Output Level: =+24 dBu, ±0.5 dBu
- XLR Outputs Output Impedance: 100 Ohms
Performance
- Crosstalk (Adjacent Channels): -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
- Digital Audio Bit Depth: 24
- Digital Audio Dynamic Range: ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Digital Audio Reference Level For Zero dBFS: =+18 dBu
- Digital Audio Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Electronics
- Phantom Power: +48 VDC (±2 VDC)
- Power Consumption: 35W (Continuous)
- Voltage Requirements: 100-230 VAC, 50-60 Hz
Dimensions
- Product Depth: 12" (30.5 cm)
- Product Height: 3.5” (90 mm)
- Product Width: 19" (48.3 cm)
