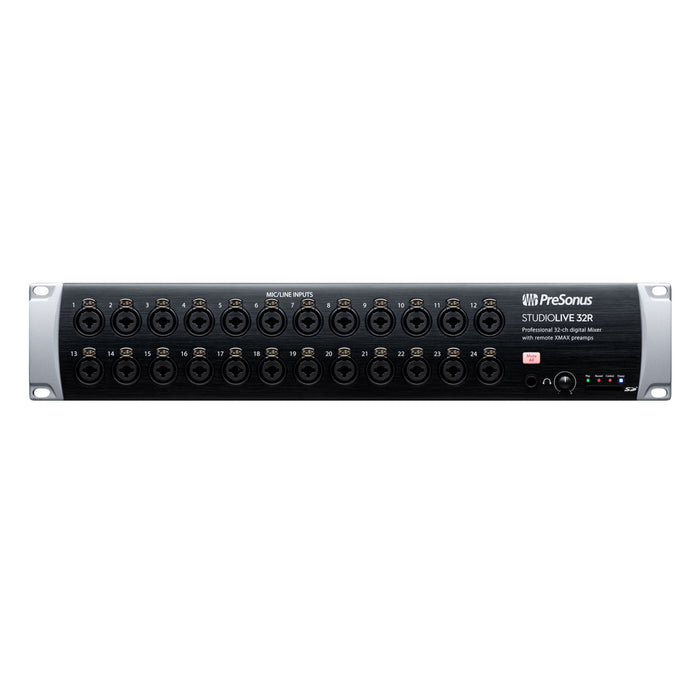

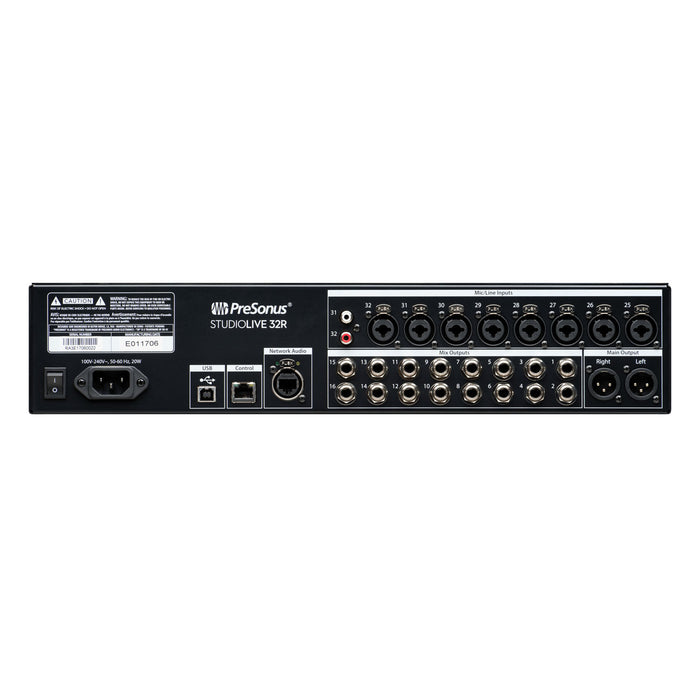

PreSonus StudioLive Series III 32R Digital Rack Mixer
PreSonus StudioLive Series III 32R Digital Rack Mixer
The PreSonus StudioLive 32R is a 40-channel digital mixer in two rackspaces. Use it standalone with Universal Control software, pair it with StudioLive Series III consoles as a stage box or monitor mixer, or connect with EarMix 16M personal mixers. Plug into your studio computer for a bidirectional 128-channel (64x64) USB audio interface with vintage-modeled dynamics and EQ plug-ins on every input and bus.
Set up 16 FlexMixes as auxes, subgroups, or matrix mixes. Four effects buses add reverb and delay without affecting monitors; four subgroups simplify processing; 24 DCAs keep group control fast and flexible.
Powered by the PreSonus FLEX DSP Engine, it offers 40 mixing channels, 22 mix buses, 270 processors, and Fat Channel plug-ins on all channels and buses. Control mixes via wireless router on iPad, Android, or Windows Touch with Universal Control.
The 64x64 USB interface enables effortless multitrack recording and instant playback with one button—no routing needed.
A free firmware update adds Milan certification, an improved limiter with variable release, and expanded Digital Reverb XL controls with new presets—offering enhanced power and precision. With this firmware update, you also get the 7 additional State Space Models EQs (10 total) and 8 analog-inspired compressors (11 total) from the Fat Channel Collection installed standard, adding even more processing to create studio-quality mixers for your live session.
Features
- Dual-core FLEX DSP Engine powers 286 processors—the most in its class
- 40-input rack mixer with 32 XMAX mic/line inputs + FLEX FX returns
- 26 mix buses: 16 FlexMixes (aux, subgroup, matrix), 4 FX buses, stereo main
- Fat Channel EQ & compressors on every channel and bus
- 4 FLEX FX slots with classic reverb & delay
- 24 DCAs for fast group control
- 128-channel USB recording + onboard SD recorder with Virtual Soundcheck
- AVB networking for seamless StudioLive, NSB, EarMix integration
- Remote control via Universal Control & QMix-UC apps
- Includes Capture Multitracking and Fender Studio Pro license for pro recording
- Optional Dante available with AVB-D16
Specifications
Input
- Line Input Connection Type: RCA Female, Unbalanced (Stereo Pair)
- Line Inputs Maximum Level: +12 dBu, ±0.5 dBu
- Mic Input Connection Type: Combo Locking XLR Mic - 1/4” TRS Line
- Mic Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
- Mic Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Mic Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
- Mic Preamp Input Impedance: 1 kΩ
- Mic Preamp Maximum Input Level: =+12 dBu (Unity Gain)
- Mic Preamp Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Mic Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Output
- Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
- Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω Load
- Headphone Outputs Signal To Noise Ratio: 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Line Outputs Connection Type: 1/4" TRS, Balanced
- Line Outputs Maximum Output Level: =+18 dBu, ±0.5 dBu
- Line Outputs Output Impedance: 100 Ohms
- XLR Outputs Maximum Output Level: =+24 dBu, ±0.5 dBu
- XLR Outputs Output Impedance: 100 Ohms
Performance
- Crosstalk (Adjacent Channels): -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
- Digital Audio Bit Depth: 24
- Digital Audio Dynamic Range: ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Digital Audio Reference Level For Zero dBFS: =+18 dBu
- Digital Audio Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Electronics
- Phantom Power: +48 VDC (±2 VDC)
- Power Consumption: 35W (Continuous)
- Voltage Requirements: 100-230 VAC, 50-60 Hz
Dimensions
- Product Depth: 12" (30.5 cm)
- Product Height: 3.5” (90 mm)
- Product Width: 19" (48.3 cm)
