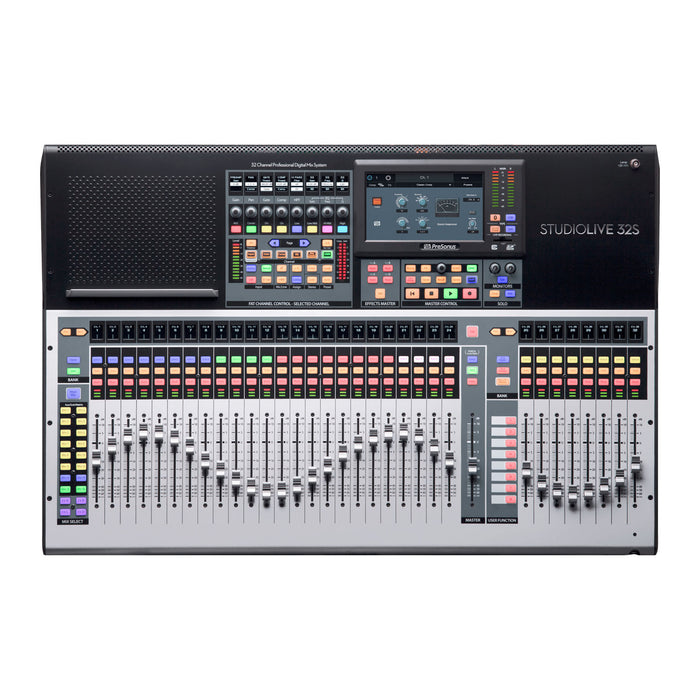

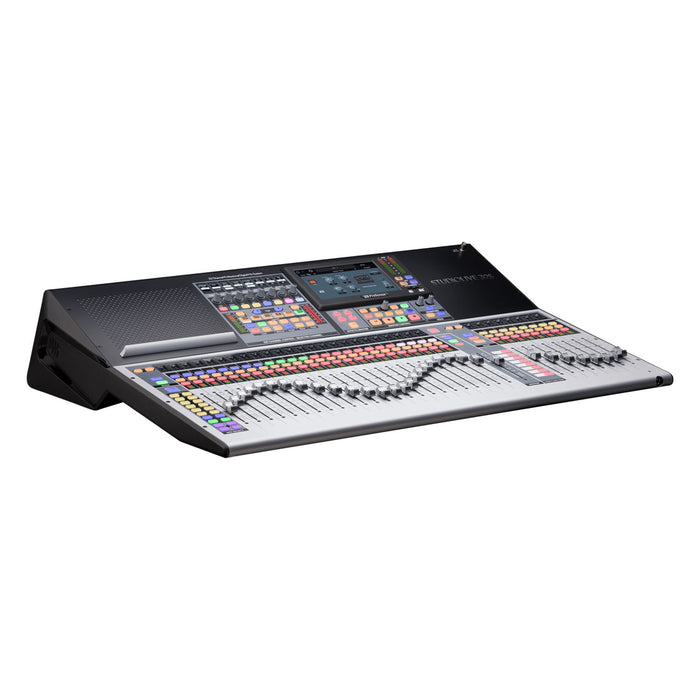

Presonus StudioLive 32S - 32-Channel Interface With AVB Networking

Presonus StudioLive 32S - 32-Channel Interface With AVB Networking

The PreSonus StudioLive® 32S, is a small-format digital mixer with efficient one-to-one control, flexible routing and expandability options, AVB networking, and 128 (64x64) channels of USB or onboard SD Card recording.

The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large format features into a small format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording, 128 channels of AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32S delivers a fast and intuitive, surface-driven workflow for total control. Spend less time menu-diving and more time mixing—hands-on.

Features

• Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 40 input-channel digital mixer with 33 touch-sensitive motorized faders
• 32 local digitally controlled XMAX mic/line inputs
• 2 balanced stereo aux inputs
• 1 stereo tape input (RCA, Bluetooth™ connectivity, USB, AVB or SD)
• 4 FLEX FX returns
• 1 Talkback
• 26 mix buses
• 16 FlexMixes (Aux, Subgroup, Matrix)
• 4 dedicated FLEX FX buses
• 4 dedicated subgroups
• Stereo Main bus
• 286 simultaneous processors
• HPF
• Gate / Expander
• Compressor with Fat Channel plug-in models
• 4-band/6-band parametric EQ with Fat Channel plug-in models
• Limiter
• 31-band Graphic EQ
• 4 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• 24 DCAs to control groups of channels
• 128-channel (64x64) recording over USB
• Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
• AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
• User Profiles for managing multiple operators with custom permissions
• Per channel digital patching from any analog, AVB, USB, or SD Card source
• DAW Control
• Advanced Studio One control integration
• MCU emulation mode optimized for Logic
• HUI emulation mode optimized for ProTools
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
• Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
• Capture 3.0 multitrack software included
• Automated Virtual Soundcheck
• Store StudioLive mix scenes with your audio
• Advanced Studio One integration (Studio One Artist Included)
• XMAX mic preamp control from Studio One
• Control Fat Channel parameters from Studio One mixing console

Computer system requirements:

Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One®.

Mac

• macOS® 10.11 or higher (64-bit only)
• Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
• 4 GB RAM (8 GB or more recommended)

Windows

• Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
• Intel Core 2 Duo (Intel Core i3 or faster recommended)
• 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

• USB 2.0 port
• Internet connection
• Internal or external 7200 RPM storage drive highly recommended
• 30 GB hard disk space
• Monitor with 1366x768 resolution

iOS

• iOS 10 or later
• iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

Android

• Android™ 5.0 (Lollipop) or later
• Android smartphone (QMix-UC)
• Android tablet (8-inch) with 1024x768 resolution (UC Surface)
