SPL MTC MK2 - Stereo Monitor And Talkback Controller
SPL MTC MK2 - Stereo Monitor And Talkback Controller
This classic has been updated with new features, adapting it to the demands of modern music production environments.
Advanced source and speaker selection, multiple monitoring modes, an integrated premium talkback system, headphone amplifiers with Phonitor Matrix, an additional input for a dedicated artist mix, and an internal audio operating voltage of +/-18 volts make the MTC Mk2 once again the professional studio standard among monitor controllers.
Full Control
The 45 mm big, massive, milled from aluminium knob for the analogue volume control, offers the perfect control range to adjust the monitoring volume intuitively and precisely.
Speakers & Subwoofer

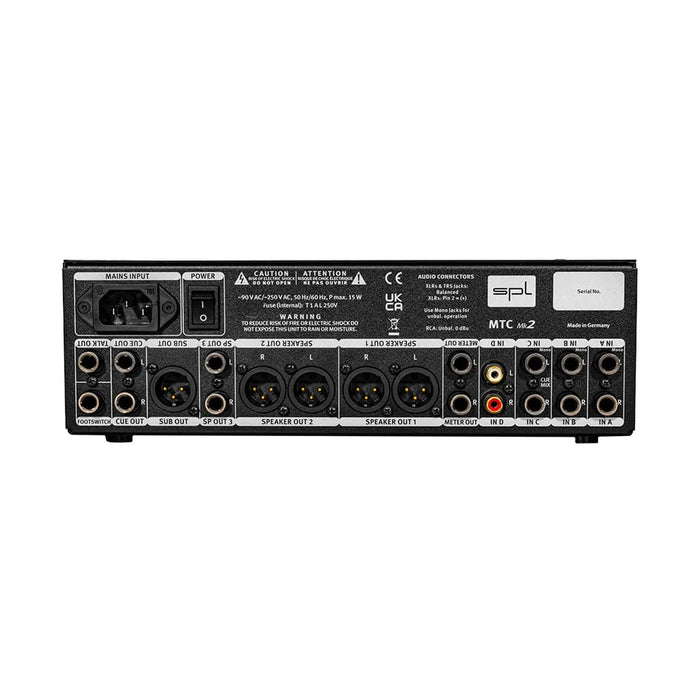

The MTC Mk2 provides three pairs of outputs for stereo speakers and a mono output for a subwoofer.
The respective stereo pairs are selected with high-quality analogue switches. Each pair has its individual switch. Thus, multiple selection is also possible. The SUB switch can be used to switch an additional subwoofer on and off. The SUB can be combined with any speaker pair. The subwoofer output sends a mono-summed signal with a full frequency range. Alternatively, a mono monitor speaker can be connected to the SUB output.
Monitoring modes
MTC Mk2 allows three different monitoring modes.
As a standard, the mix can be monitored in “stereo”. Mono compatibility can be checked in “mono”.
The phase of the signal can be reversed via the phase inversion switch Ø.
A special feature is the third mode – the channel swap function: LR SWAP
SPL MTC MK2 Specifications:
Analogue inputs & outputs; XLR & TRS Jack (balanced), RCA
- Maximum input gain (XLR, TRS Jack): 22.5 dBu
- Maximum input gain (RCA): 22.5 dBu
- Input impedance (TRS Jack): 20 kΩ
- Input impedance (RCA): 20 kΩ
- Output impedance (XLR): 75 Ω
- Common mode rejection (1 kHz): 80 dBu
- Frequency range (-3 dB): 10 Hz – 150 kHz
- THD + N (10 Hz – 22 kHz, 0 dBu): 0.0027 %
- Noise (A-weighted); -94.3 dBu
- Dynamic range (XLR, TRS Jack); 116.3 dB
- Dynamic range (RCA): 116.3 dB
Internal Linear Power Supply with Toroidal Transformer
- Operating voltage for analog audio; +/- 18 V
- Operating voltage for relais und LEDs: + 12 V
Mains Power Supply
- Mains voltage; 85-264 V AC / 47-440 Hz
- Fuse: 1 A
- Power consumption: 15 W
Dimensions & Weight
- W x H x D (width x height x depth): 272 x 91 x 275 mm
- Unit weight: 3 kg
- Shipping weight (incl. packaging): 4.2 kg
