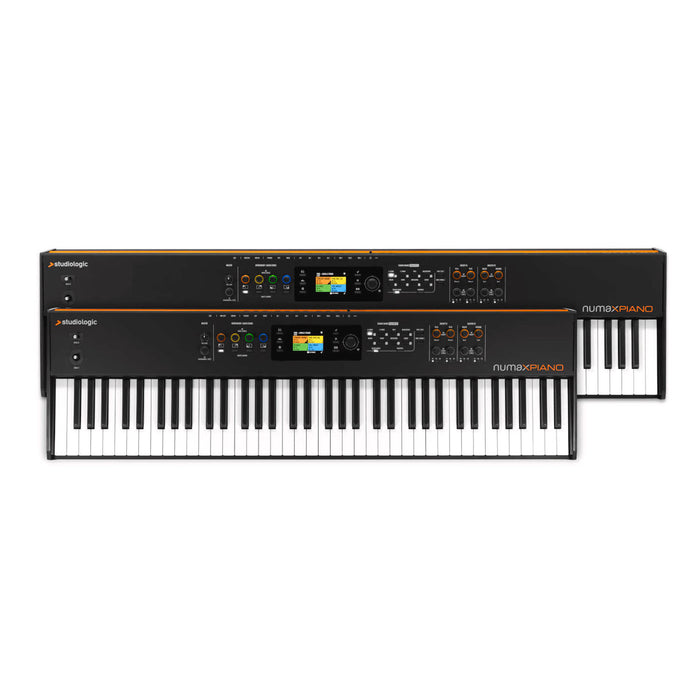

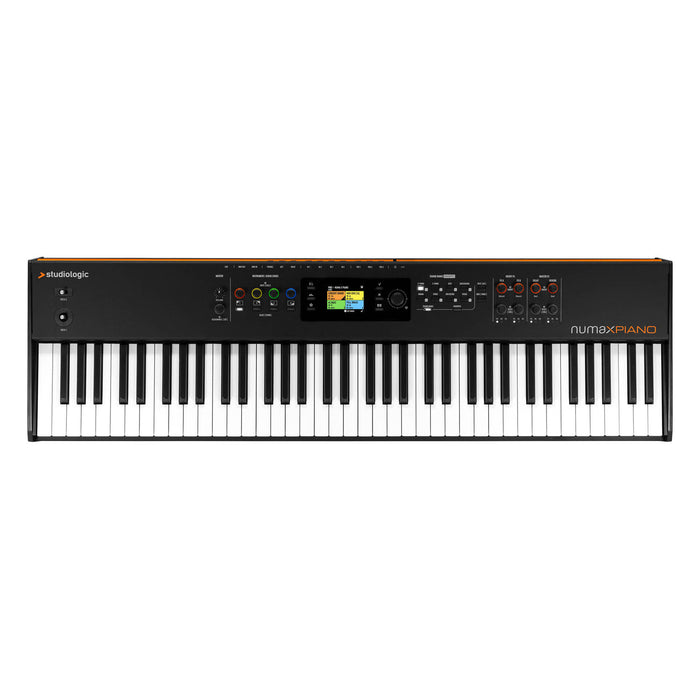

Studiologic Numa X Piano 73
Studiologic Numa X Piano 73
It's a revolution for digital piano players. Hi-end features, sounds and effects, designed and organized in an amazing intuitive and effective way to offer the best feeling in performance, under every aspect and in every context.
With an incredibly powerful brand-new sound engine, four parts easily assignable to internal sounds or to external midi, four track built-in digital mixer, USB audio interface and the best touch ever, it’s the ultimate keyboard for the ultimate user.
The USB port sends and receives audio in digital quality with your computer or mobile device. Use the Numa X Piano as an audio board, with a local direct control on the volumes.
The Programs you use the most are always close at hand and the content of each Favorite is shown on the screen for a faster selection.
The Sticks can control any desired sound parameter. Stick 1 is bi-directional-springed. Stick 2 is unidirectional not-springed. Both feature an elegant aluminum control shaft which feels perfectly balanced and expressive between your fingertips.
All the power of Numa X Piano packed into a compact and lightweight cabinet. Take it everywhere.
Specifications
- 73 Keys
- TP/110 Premium Hammer Action
- Triple switch detection system
- Aftertouch
Touch
- Soft, Medium, Hard, Fixed (programmable)
- Keyboard Sensitivity Control
- Black/White keys Balance
- 250 User Programs
- Zoom function to quick edit Zone parameters
4 Zones assignable to internal sounds or external MIDI
- Split/Keyrange for each Zone
- Dedicated Split button
Favourites
- 16 Favourites with 24 Programs for each one
- Favourite content preview on display
Global Equalizer
- Bass, Mid, Treble gain
- Mid frequency control
- 8 Sound Banks with over 200 Factory Sounds
- New Sounds installable with the Manager app
- Max Polyphony 300 voices
Acoustic Pianos
- Acoustic Modeling Technology
- Release samples, Damper and Key-off noises
- Zoom controls: Tone, Strings Resonance, Duplex, Damper Noise
Electric Pianos
- Electric Modeling Technology: Physical Modeling of Vintage Electric and Hybrids
- Zoom controls: Hammer, Offset, Tine, Damper Noise
Keyboards, Bass & Guitars, Organs, Synthesizers, Orchestral, Other
- Zoom controls: Filter Cutoff, Resonance, Attack, Release
- 8 indipendent Insert FX (2 for each Zone)
FX1
- Distortion, Overdrive, Auto Wah, Pedal Wah, Auto Pan, Tremolo, Vibrato, Equalizer, Compressor
FX2
- Chorus1, Chorus 2, Flanger 1, Flanger 2, Phaser100, Phaser90, Phaser HMX, Phaser Pad, Rotary, Auto Pan, Tremolo, Vibrato, Equalizer, Compressor
Master Delay
- Delay, Pan Delay
Master Reverb
- FDN (Feedback Delay Network) technology
- Room 1, Room 2, Hall 1, Hall 2, Cath. 1, Cath. 2, Plate 1, Plate 2, Spring 1, Spring 2
4 Audio Input Zones Mic/Line
- Configurations: 4 Mono, 1 Stereo + 2 Mono, 2 Stereo
- Zoom controls: Gain/Low/Mid/Hi for each Audio Zone
7 Delay FX presets
- Eko 1, Eko 2, Eko, 3, Eko 4, Paneko 5, Paneko 6, Paneko 7
7 Reverb FX presets
- Club, Lounge, Studio, Vocal, Stage, Bighall, Chorale
- 2,8" Color Display (320 x 240)
- Master Volume
- Navigation Encoder
- 13 Encoder with push functions
- Assignable Encoder for input volume (Audio / USB /Audio + USB)
- 22 buttons
2 Programmable Sticks
- Stick 1 bidirectional-springed
- Stick 2 directional-not springed
- Audio OUT: 2x 6,3 mm TS/mono jack (L+R)
- Audio IN: 4x TS/mono jack 6,3 mm
- Headphones: 6,3 mm TRS/stereo jack
- Pedals: 2 auto switch/continuous, 1 universal1
- MIDI: In/Out
- USB: Audio In/Out, MIDI In/Out, Manager App
- DC IN: 12V
Adapter
- Input: 100-240V / Output: 12V-2,5A
- Width: 105,2 cm / 41,4"
- Depth: 31 cm / 12,2"
- Height: 12,3 cm / 4,8"
- Weight: 11,7 Kg / 25,8 lbs
