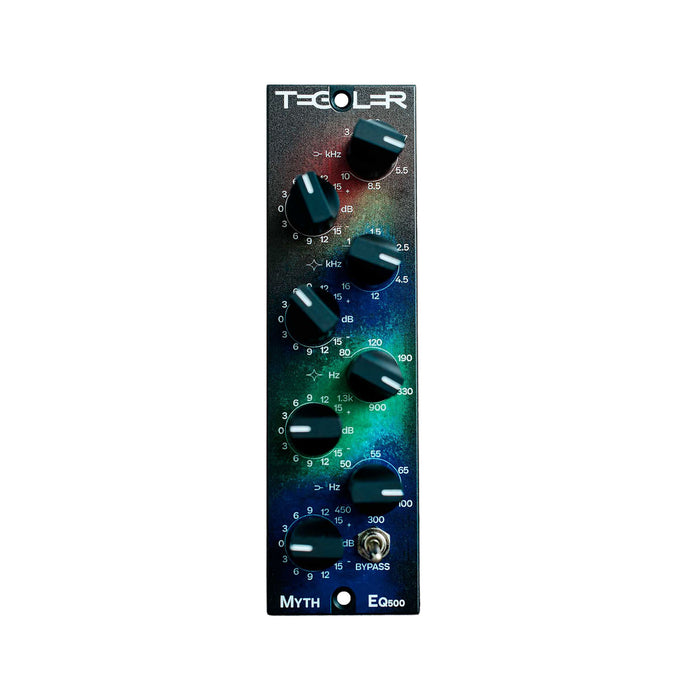

Tegeler Audio MythEQ - 500 Series Pultec Style EQ

Tegeler Audio MythEQ - 500 Series Pultec Style EQ

One device to EQ them all...

... to distort them,
tweak to weak them,
boost or attenuate them,
surgically cut frequencies or
create beautiful new peaks and valleys.
Tegeler's new EQ now brings all these features together.

Tegeler Audio MythEQ Features

• API-500 series mono equalizer
• Toggle switch: in/bypass
• High band shelf filter: 3kHz, 3.3kHz, 3.7kHz, 5.5kHz, 8.5kHz, 10kHz
• Upper midrange bell filter: 1kHz, 1.5kHz, 2.5kHz, 4.5kHz, 12kHz, 16kHz
• Lower midrange bell filter: 80Hz, 120Hz, 190Hz, 330Hz, 900Hz, 1.3kHz
• Low band shelf filter: 50Hz, 55Hz, 65Hz, 100Hz, 300Hz, 450Hz
• Maximum boost/cut: +-15dB

Tegeler Audio MythEQ Specifications

• Frequency response: 20Hz-40kHz
• Maximum input level: +20dBu
• Input impedance: ≥2.4kΩ
• Output impedance: <600Ω
• Maximum output level: +21dBu
• Dynamic range: ≥100dB
• Supply voltage: +-16V
• Maximum current consumption: 80mA
• Size: standard API 500 module size
• Weight: 540g
