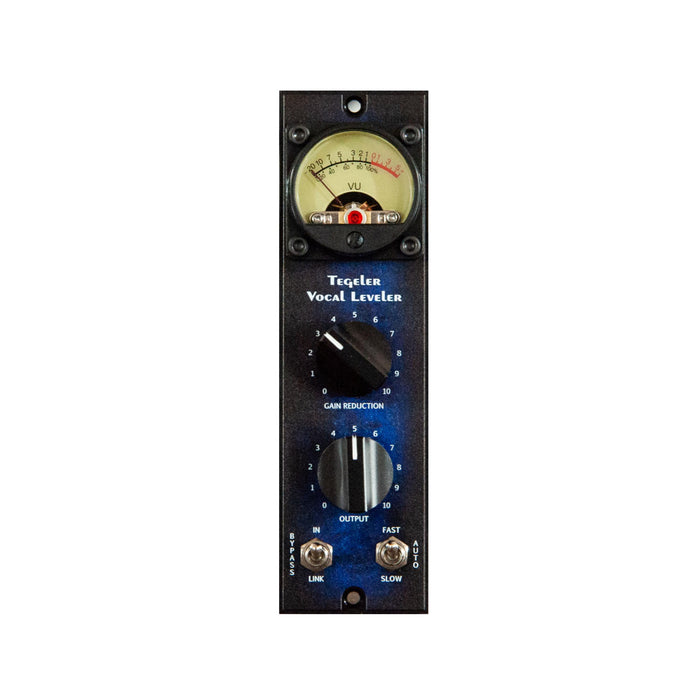

Tegeler Audio Vocal Leveler 500

Tegeler Audio Vocal Leveler 500

Optical compressor with FET tube simulation in API 500 format with stereo link function

The Tegeler Vocal Leveler is a classic optical compressor with no frills.

With just two knobs for gain reduction and output volume you have exactly the parameters at hand that you really need to achieve fast and convincing results.

Thanks to the link function and stepped potentiometers nothing stands in the way of processing stereo signals and recalling your settings easily. You can also control the reaction times of the compressor via a toggle switch and are thus prepared for a wide variety of recording or mixing situations.

Tegeler Audio VL500 Specifications

• Frequency Range: 20 - 22.000Hz
• Maximum Input Level: 20 dBu
• Input Impedance: ≥ 2.4kΩ
• Output Impedance: < 600 Ω
• Operating level +4 dBu
• Maximum Output Level: 21 dBu
• Dynamic Range: 100 dB
• Max. Gain Reduction: -12 dB
• Voltage: +- 16V
• Size: Standard API 500er Module
• Weight: 540g
• API 500 series mono Opto-compressor
• Two pots: Gain reduction, Output
• Toggle switch 3 positions (left): In, bypass, link for stereo use of two Vocal Levelers
• Toggle switch 3 positions (right): Attack + Release time: fast, auto, slow
