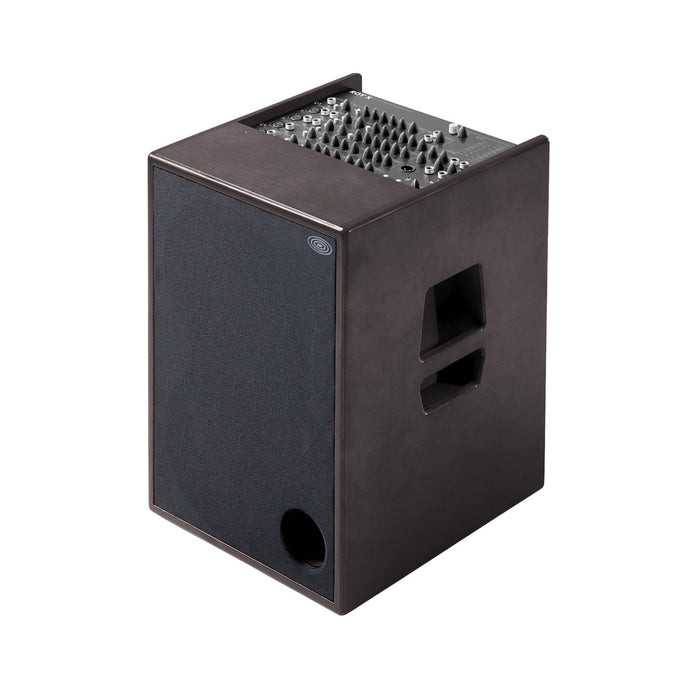

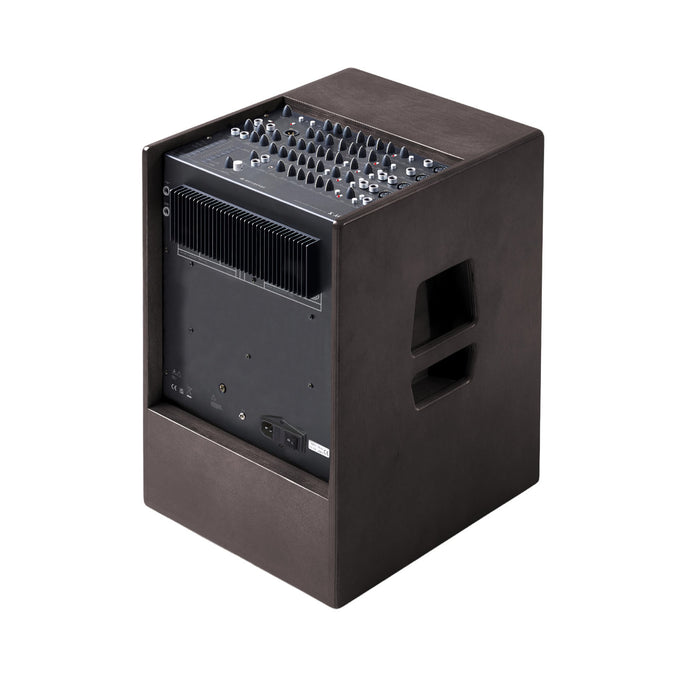

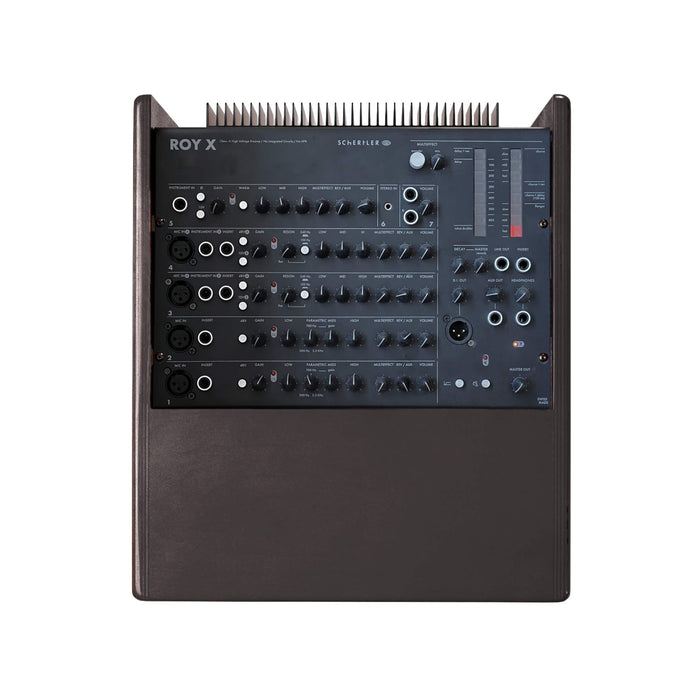

Schertler ROY-X - 7-Channel 450W Acoustic Amplifier (Wood Finish)
Schertler ROY-X - 7-Channel 450W Acoustic Amplifier (Wood Finish)
The Schertler ROY X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this versatile 7-channel combo amplification system offers 450W (124dB SPL) of bi-amplified power. Equipped with a 1” horn driver and two 8” woofers, it is designed with a 2-way bass reflex construction.
ROY X is highly effective as a stand-alone portable system for soloists or small groups. The system can accommodate various mic/instrument combinations and offers a comprehensive mixing facility for easy on-stage setup. ROY X’s Master section includes both a spring-like reverb with decay and a digital multi-effect (on a separate buss). A headphone preamp provides a handy monitoring facility.
ROY X is available in a choice of wood or anthracite finishes.
Schertler ROY-X Specifications
- Weight: 22.2 kg
- Dimensions (LxDxH): 35.7 x 41.5 x 51 cm
- Frequency Response (@ +/-3dB): 40 to 20 kHz
- Sensitivity (1W/1m) @1 kHz: 95 dB
- Power: 450 W - Class-D
- SPL Max: 124 dB
- Speakers: 1” horn driver, 2x 8” woofer
- Box construction: 15 mm birch BB laminated
- System - Format: Bass reflex - Two way - Bi-amp
- Mic In connector: XLR
- Mic In sensitivity: -52 dB
- Mic In impedance: 4.7 kΩ
- Instrument In connector: 1/4" jack unbalanced
- Instrument In sensitivity: -47 dB
- Instrument In impedance: 820 kΩ
- Stereo In connector: 1/8" jack stereo
- Stereo In sensitivity: -10 dBu
- Stereo In impedance: 40 kΩ
- Insert: On master + channels 1-4
- Line Out connector: 1/4" jack
- Line out level: 0 dB
- Line Out impedance: 200 Ω
- DI Out connector: XLR
- DI Out level: -∞ to +6 dBu
- DI Out impedance: 180 Ω
- Aux Out connector: 1/4" jack unbalanced
- Aux Out level: 0 dBu
- Aux Out impedance: 200 Ω
- Phones connector: 1/4" jack stereo
- Phantom Power (nominal): 48 VDC (XLR) / 10 VDC (jack)
- Effect: Spring type digital reverb with decay + parallel multieffect with 16 presets
- Preamp: Class-A, no negative feedback, no integrated circuits
- Footswitch: On multi effect and digital reverb
