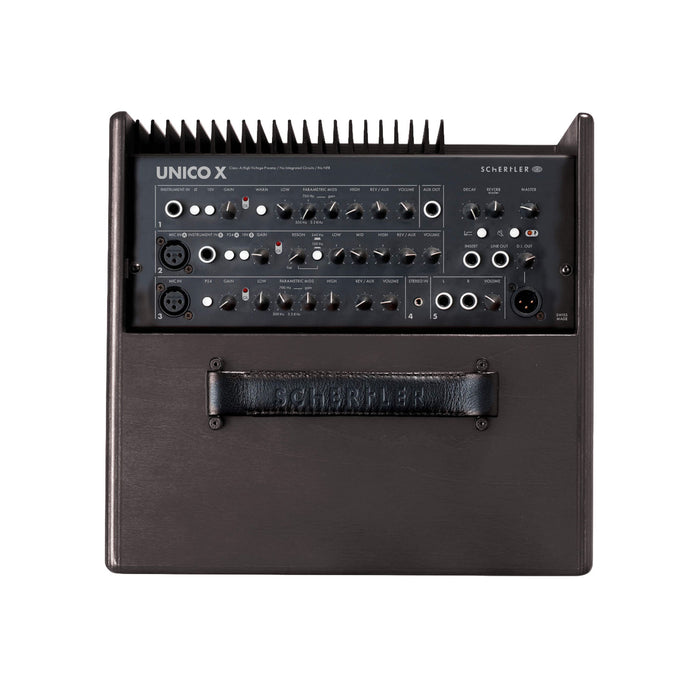

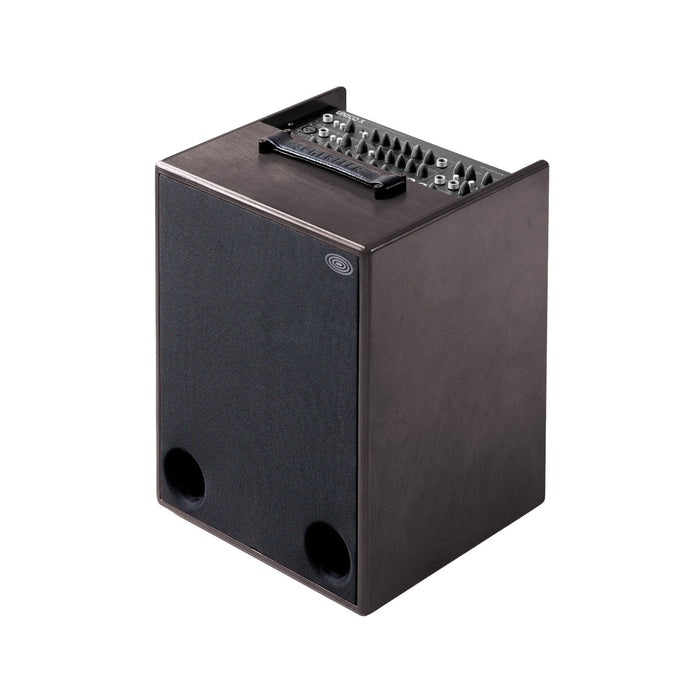

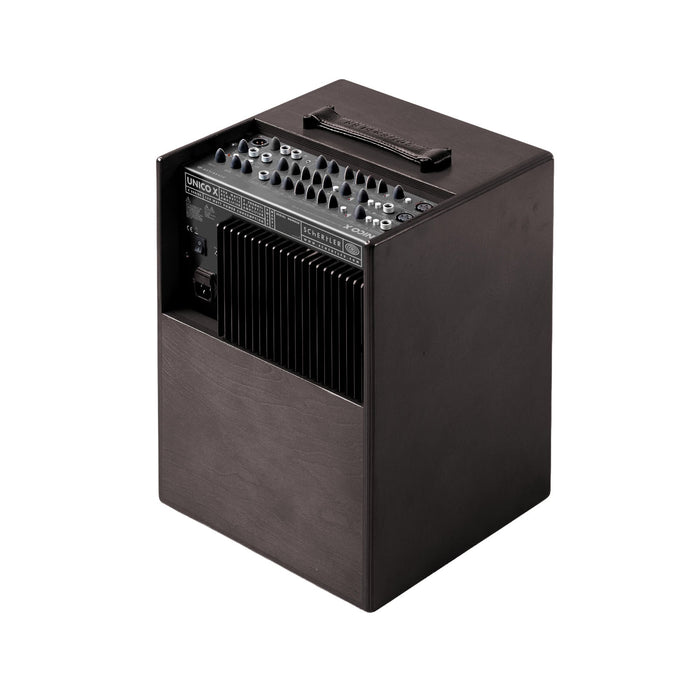

Schertler UNICO-X - 5-Channel 280W Acoustic Amplifier (Wood Finish)
Schertler UNICO-X - 5-Channel 280W Acoustic Amplifier (Wood Finish)
The Schertler UNICO X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this impressive 5-channel combo amp provides 280W (123dB SPL) of bi-amplified analog power.
UNICO X is equipped with a 1” dome tweeter and 10” woofer. It is designed with an optimized 2-way bass reflex construction. UNICO X is ideal for those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically needed for vocals or acoustic guitars, along with clarity and transparency. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.
UNICO X is available in a choice of wood or anthracite finishes.
Schertler UNICO-X Specifications
- Weight: 16.8 kg
- Dimensions (LxDxH): 34.2 x 32.6 x 43.8 cm
- Frequency Response (@ +/-3dB): 40 to 20 kHz
- Sensitivity (1W/1m) @1 kHz: 98 dB
- Power: 280 W Pure analog power
- SPL Max: 123 dB
- Speakers: 1” dome tweeter, 10” woofer
- Box construction: 12 mm birch BB laminated
- System - Format: Bass reflex - Two way - Bi-amp
- Mic In connector: XLR
- Mic In sensitivity: -52 dB
- Mic In impedance: 4.7 kΩ
- Instrument In connector: 1/4" jack unbalanced
- Instrument In sensitivity: -47 dB
- Instrument In impedance: 820 kΩ
- Stereo In connector: 1/8" jack stereo
- Stereo In sensitivity: -10 dBu
- Stereo In impedance: 40 kΩ
- Insert: On master
- Line Out connector: 1/4" jack
- Line out level: 0 dB
- Line Out impedance: 200 Ω
- DI Out connector: XLR
- DI Out level: -∞ to +6 dBu
- DI Out impedance: 180 Ω
- Aux Out connector: 1/4" jack unbalanced
- Aux Out level: 0 dBu
- Aux Out impedance: 200 Ω
- Phantom Power (nominal): 24 VDC (XLR) / 10 VDC (jack)
- Effect: Spring-type digital reverb with decay
- Preamp: Class-A, no negative feedback, no integrated circuits
