Focusrite RedNet AM2 Dante Stereo Monitor Unit
Focusrite RedNet AM2

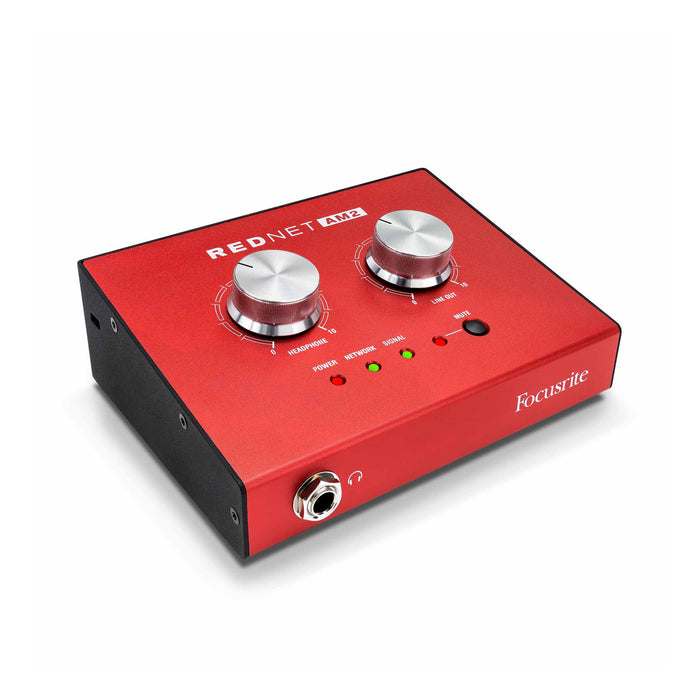

The Focusrite RedNet AM2 is a compact, flexible Dante-compatible stereo monitoring unit combining headphone and line outputs for monitoring of signals from the Dante network wherever required. RedNet AM2 features a ¼" front-panel TRS headphone socket plus a pair of rear-mounted balanced line outputs with male XLR connectors for loudspeaker monitoring and other applications.
Designed to drive high or low impedance headphones at high levels, the headphone output delivers significant audio output power. The compact unit, mounted in an enclosure based around a sturdy road-worthy aluminium extrusion, is fitted with non-slip feet, and can either sit securely on a flat surface or be mounted on top of a mic stand using the standard threaded bush incorporated in the base.

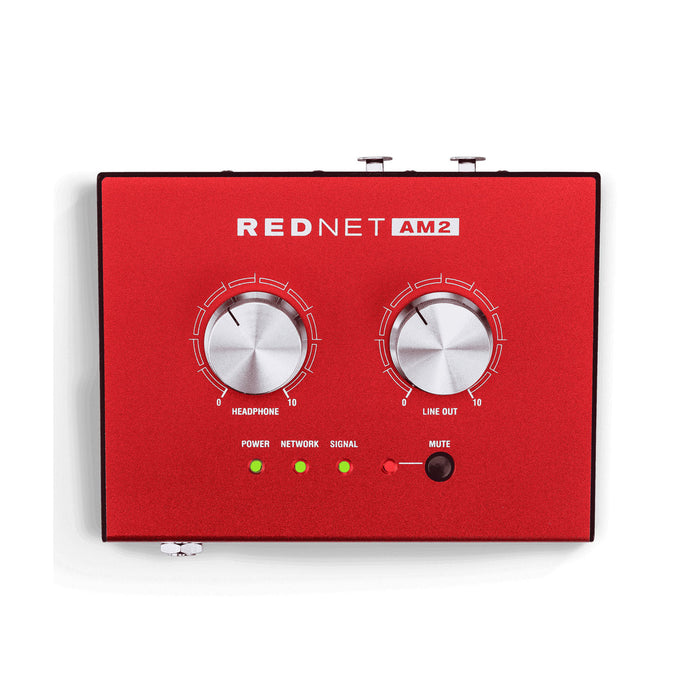

RedNet AM2 includes the latest two-channel Dante receiver and provides high-quality digital to analogue conversion for accurate monitoring on loudspeakers or headphones. Two large volume control knobs are provided for Headphone and Line output levels, the latter featuring a mute button with associated LED. Other indicators show the presence of power, network and signal level.

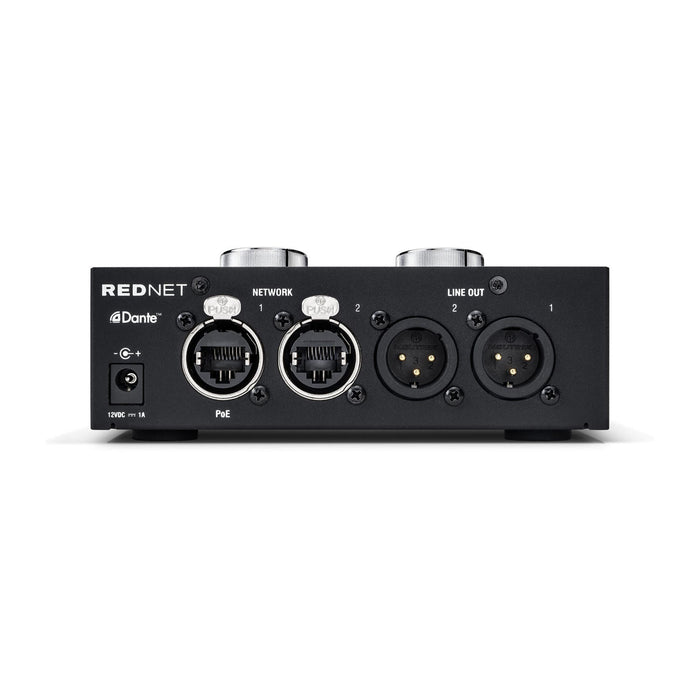

Dual locking etherCON connectors are included to connect the network and to daisy-chain to additional network devices. The unit is powered via Power over Ethernet (PoE) or via the rear-panel barrel connector and included DC power supply.
Focusrite RedNet AM2 Features:
- Monitor-quality precision digital conversion for Dante networks
- Power to drive even high impedance headphones at significant levels — ideal for drums or other on-stage applications
- Independent headphone and line out level controls
- Integrated mute switch - instantly kill the signal feeding external power amps or speakers
- Power over Ethernet (PoE) or via included power supply
- Integrated Gigabit Ethernet switch allows connection of additional network device
- Mic stand mount - bush on the base of the metal case allows simple mounting
- Dual XLR line level outputs
- ¼" TRS headphone output
- 2x etherCON network connectors with integrated network switch
- Signal present, network connected and power indicators
Specifications
Line level outputs
- 0 DBFS Reference Output Levels: 18 or 24dBu (switchable)
- Frequency Response Output: 20Hz - 20kHz ±0.05dB
- THD N Output: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input
- Dynamic Range: 120dB A-weighted (typical), 20Hz - 20kHz
Headphone output
- 0 DBFS Reference Levels Headphones: 19dBm
- Headphone Frequency Response: 20Hz - 20kHz ±0.05dB
- Headphone THD N: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input
- Headphone Dynamic Range: 118dB A-weighted (typical), 20Hz - 20kHz
- Output Impedance: 5O
- Headphone Impedance: 32O - 600O
Digital performance
- Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
- Clock Sources: Internal or from Dante Network Master
- Minimum Latency: 1ms
Front panel connectivity
- Headphone Outputs: 1 x 1/4" stereo jack
- Line Outputs: 2 x Male XLR
- PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector
- Network: Green LED: Indicates device is network master or network slave, shows valid network lock
Power
- Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard
- DC Power Supply: 1 x 12V 1.2A DC Power Supply
- Power Consumption: PoE: 11.0W - DC: 9.8W
- Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celcius
