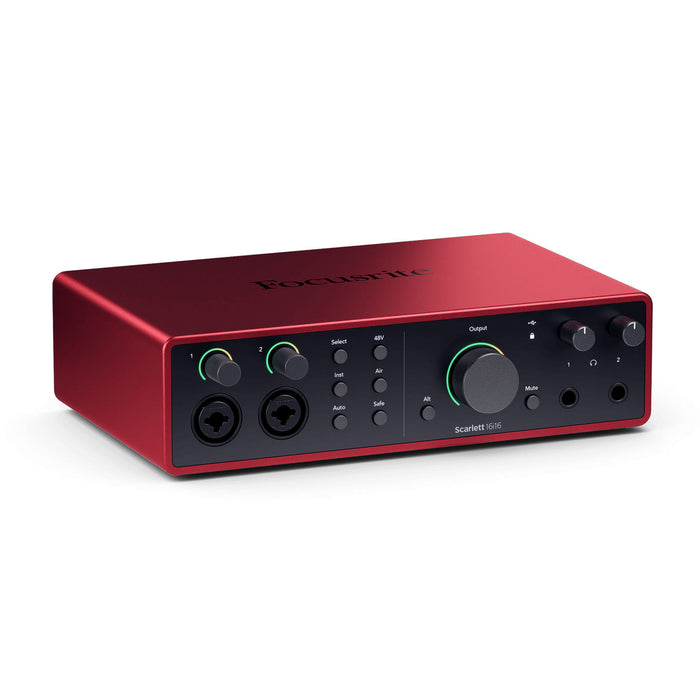

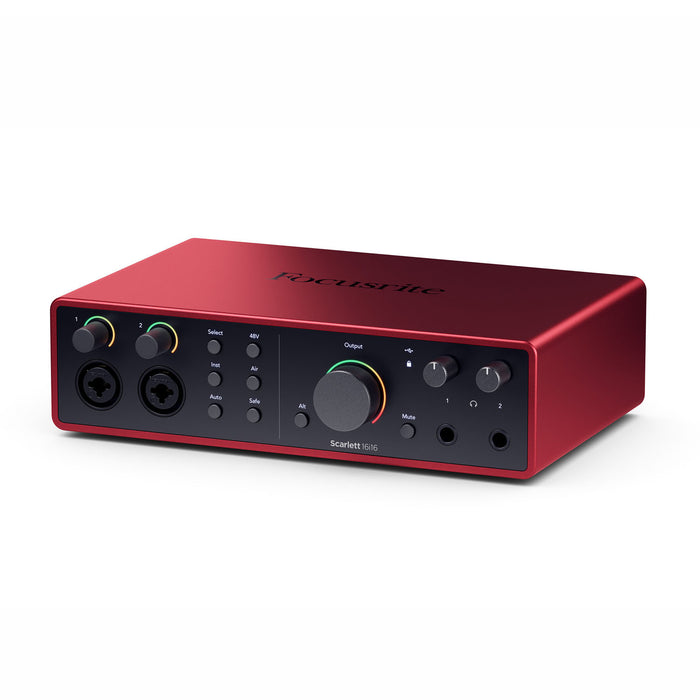

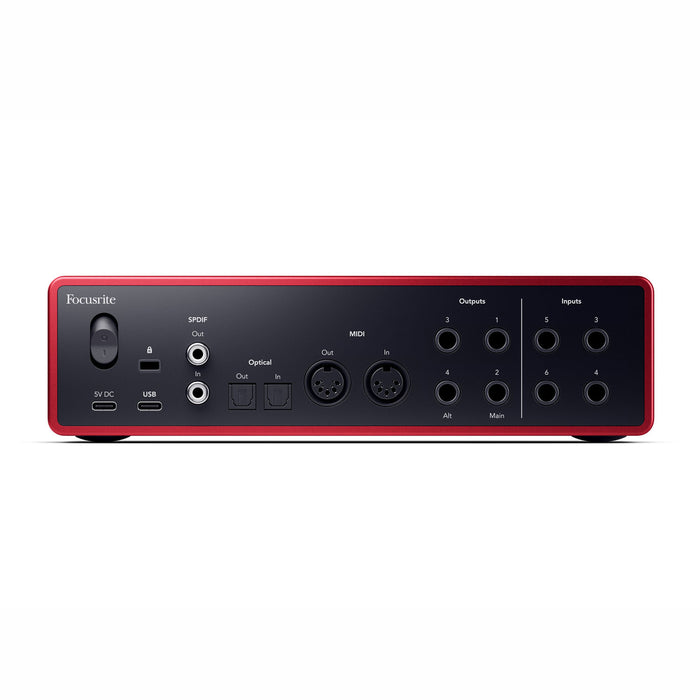

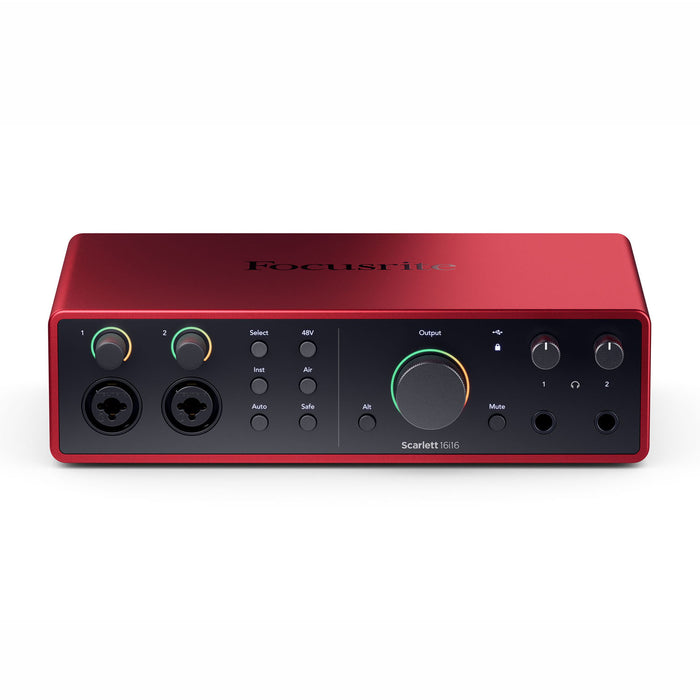

Focusrite Scarlett 16i16 4th Gen

Focusrite Scarlett 16i16 4th Gen

by Focusrite
£0.00 - £0.00
£0.00
£349.99 inc. VAT
£349.99 - £349.99
£349.99 inc. VAT
ex. VAT
SKU SFOCSCA16I16G4
In Stock - Available for Immediate Dispatch
WANT TO HIRE THIS ITEM?
Click here to contact our Hire Team to check the availability

Focusrite Scarlett 16i16 Gen 4 - 16 In/16 Out Desktop USB Audio interface with 2 Mic Preamps and SPDIF

The Focusrite Scarlett 16i16 is the compact, portable studio hub for artists and producers. Whether you're on the go, hopping from sessions, or recording at home, you'll always have access to two of our finest preamps, plus instrument, line, and MIDI connections for whatever the project throws your way: guitars, keys, synths, grooveboxes, and controllers. And if you're looking to expand your channel count, it's easily done with S/PDIF and ADAT.

Key Features:

  • Two ultra-low-noise mic/line/instrument preamps
  • Four additional line inputs
  • Two Air preamp modes for classic console sound
  • Clip Safe and Auto Gain modes
  • Alt speaker switching
  • MIDI, S/PDIF, and ADAT connectivity
  • Includes Hitmaker Expansion and DAW software bundle

Specifications

Overview

  • Number of Microphone Preamps: 2
  • Phantom Power: Yes (Independent)
  • Instrument Inputs: 2
  • Line Inputs: 6
  • Air Mode: Yes
  • Auto Gain: Yes
  • Clip Safe: Yes
  • Line Outputs: 4
  • Headphone Outputs: 2
  • ADAT Inputs: 1
  • ADAT Outputs: 1
  • SPDIF Inputs: 1
  • SPDIF Outputs: 1
  • SPDIF Outputs: 1
  • MIDI Inputs: 1
  • MIDI Outputs: 1
  • Loopback: Yes
  • Connectivity: USB Type-C
  • Protocol: USB 2.0
  • Form Factor: Desktop
  • Simultaneous I/O: 18 x 18 (including Loopback)
  • A/D Resolution: 24-bit/192 kHz
  • Bus Powered: Yes (3A)

Dimensions

  • Height: 60.5mm
  • Width: 220mm
  • Depth: 155.2mm
  • Weight: 1.25kg

Supported sample rates

  • 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

  • Frequency Response: 20-20kHz ± 0.06dB
  • Dynamic Range: 116dB (A-Weighted)
  • THD+N: -100dB @ 8dB gain
  • Noise EIN: -127dBu (A-Weighted)
  • Maximum Input Level: 16dBu
  • Gain Range: 69dB
  • Impedance: 3kΩ

Variable Line inputs

  • Frequency Response: 20-20kHz ± 0.05dB
  • Dynamic Range: 115.5dB (A-Weighted)
  • THD+N: -100dB @ 8dB gain
  • Maximum Input Level: 22dBu
  • Gain Range: 69dB
  • Impedance: 24kΩ

Fixed Line inputs

  • Frequency Response: 20-20kHz ± 0.02dB
  • Dynamic Range: 115.5dB (A-Weighted)
  • THD+N: -106dB
  • Maximum Input Level: 22dBu
  • Impedance: 48kΩ

Instrument inputs

  • Frequency Response: 20-20kHz ± 0.05dB
  • Dynamic Range: 113dB (A-Weighted)
  • THD+N: -80dB @ 8dB gain
  • Maximum Input Level: 12dBu
  • Gain Range: 62dB
  • Impedance: 1MΩ

Line outputs (Balanced)

  • Frequency Response: 20-20kHz ± 0.02dB
  • Dynamic Range: 122dB (A-Weighted)
  • THD+N: -112dB
  • Maximum Output Level: 16dBu
  • Impedance: 200Ω

Headphone outputs

  • Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
  • Dynamic Range: 112dB @ 33Ω; 116dB @ 300Ω
  • THD+N-100dB @ 33Ω (Minimum)
    -110dB @ 300Ω (Minimum)
  • Maximum Output Level: 5dBu into 33Ω; 11dBu into 300Ω
  • Maximum Output Power: 57mW into 33Ω; 27mW into 300Ω
  • Impedance: 11Ω

Analogue to Digital Converter

  • THD+N: -110dB
  • Dynamic Range: 120dB

Digital to Analogue Converter

  • THD+N-: 115dB
  • Dynamic Range: 130dB (A-Weighted)

Power

  • USB: 3A
  • External (Optional): 15W

Compatibility

  • Windows: Intel, AMD, and Arm64 processors supported
  • macOS: Apple Silicon and Intel processors supported
