DPA CORE+ 4060 Lavalier Microphone Kit (KIT-4060-OP-LMK)

DPA CORE+ 4060 Lavalier Microphone Kit (KIT-4060-OP-LMK)

by DPA Microphones
£540.00 - £540.00
£0.00
£540.00 inc. VAT
£540.00 - £540.00
£540.00 inc. VAT
ex. VAT
SKU SDPALMK4060OP
Please contact us for availability.

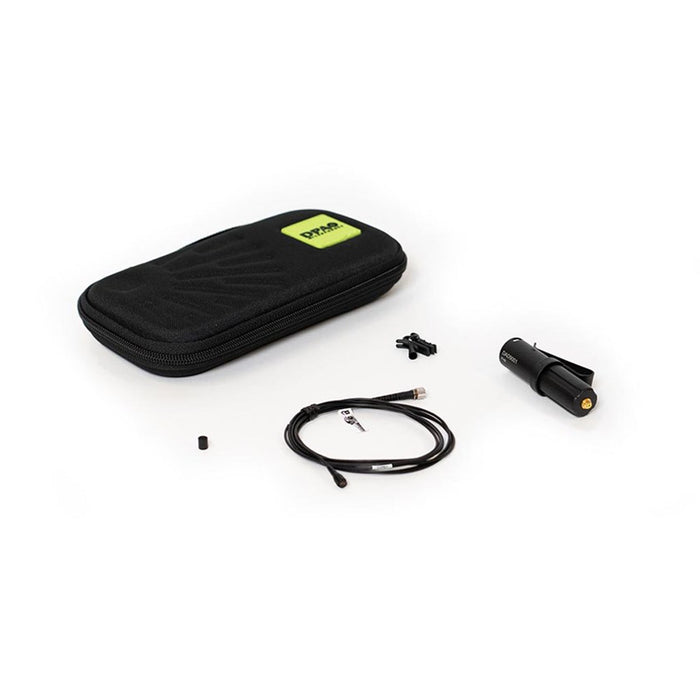

DPA CORE+ 4060 Lavalier Microphone Kit

This kit is perfect for broadcasters, TV studios, news anchors and other public speakers.

It is a robust and unobtrusive solution; the tiny 4060 Miniature Omnidirectional Microphone, Normal SPL is placed in the smallest holder on the market where it is protected from rough handling.

This mic is very natural sounding, offering great detail and resolution. It has a very low noise floor, impressive sensitivity and can handle high SPL.

DPA CORE+ 4060 Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB:
    • Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
    • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
  • Distortion, THD < 0.5%: 128 dB SPL RMS, 131 dB SPL peak
  • Distortion, THD < 1%: 129 dB SPL RMS, 132 dB SPL peak
  • Dynamic range: Typ. 106 dB
  • Max. SPL, THD 10%: 134 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
  • Power supply (for full performance):
    • For wireless systems Min. 5 V - max. 10 V through DPA adapter
    • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
  • Connector: MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 7.5 g (0.26 oz) incl. Cable and MicroLock connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
  • Colors: Black, Beige, Brown, White
