Austrian Audio OC818 Black Dual Set Plus

Austrian Audio OC818 Black Dual Set Plus

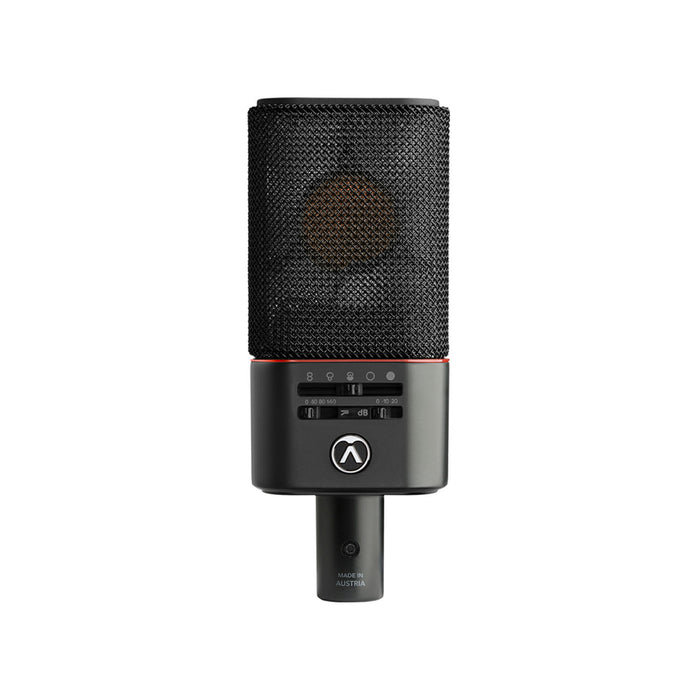

The Austrian Audio OC818 multi-pattern condenser microphone combines classic design with modern innovation to go where no mic has gone before.

The handmade CKR12 ceramic capsule reimagines the celebrated CK12 capsule to deliver exceptional detail and nuance while also handling extremely high SPL.

Each OC818 is manufactured and tested to the highest specifications at the Vienna facility, ensuring premium build quality and performance you can trust. OC818 is the most versatile condenser microphone ever made, and is destined to chart a legacy of its own.

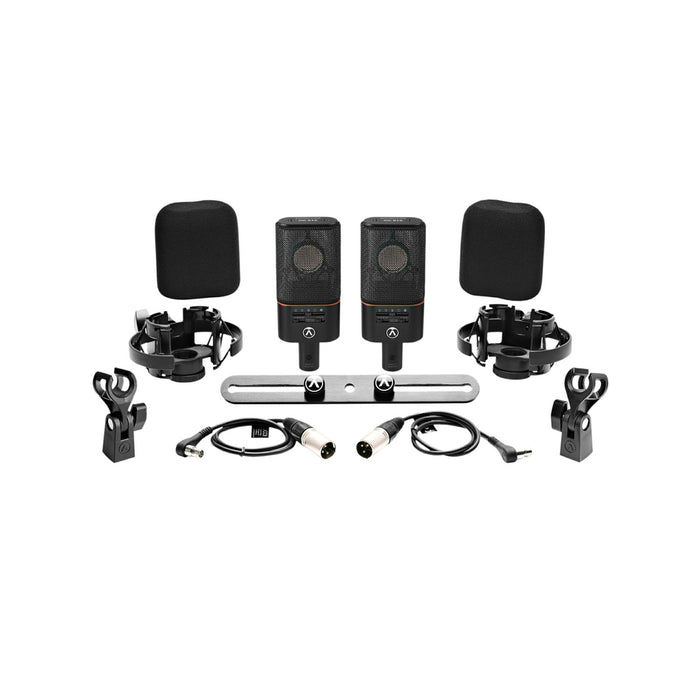

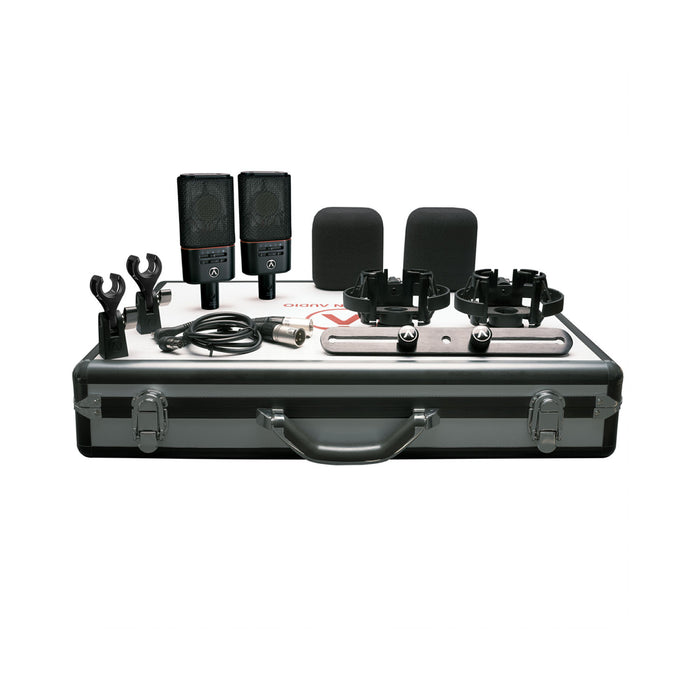

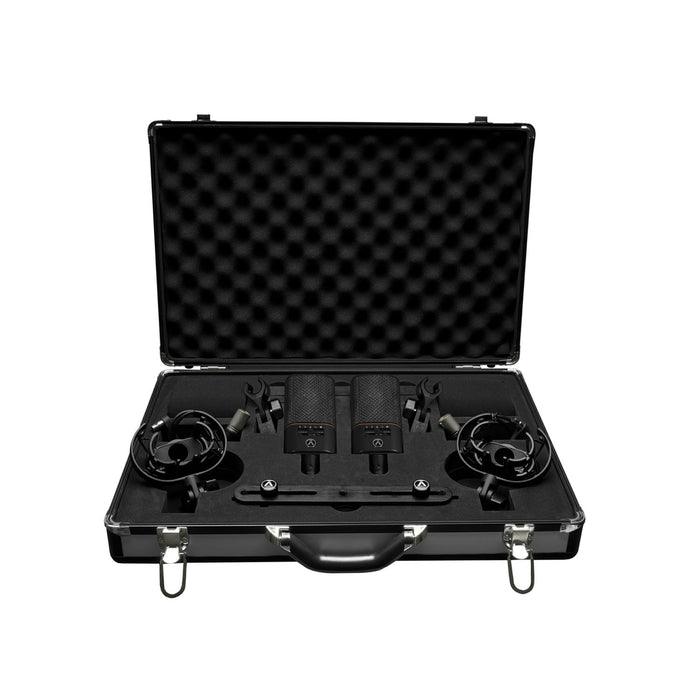

OC818 Black Dual Set Plus includes: 2x OC818 Microphone black, 2x OCS8 Spider mount, 2x OCC8 Mini XLR, 2x OCH8 Mic Clip, 2x Windshield,  1x SB1 Stereo mount bar, OCDC1 Case

OC818 Specifications

• Directional characteristic (Multi): Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
• Frequency range: 20 Hz – 20 kHz
• Sensitivity (all directions): 13 mV/Pa
• Equivalent noise level: 9 dB SPL (A)
• Max. SPL: 148 dB SPL (158 dB SPL)
• Analog low cut filter: 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
• Switchable pad: -10 dB, -20dB
• Impedance: 275 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 4mA, typical 2.1mA)
• Main connector: XLR 3 pin
• Second connector: Mini XLR 5 pin connector for back membrane
• Dimensions: 157 x 63 x 36 mm
• Weight: 360g
