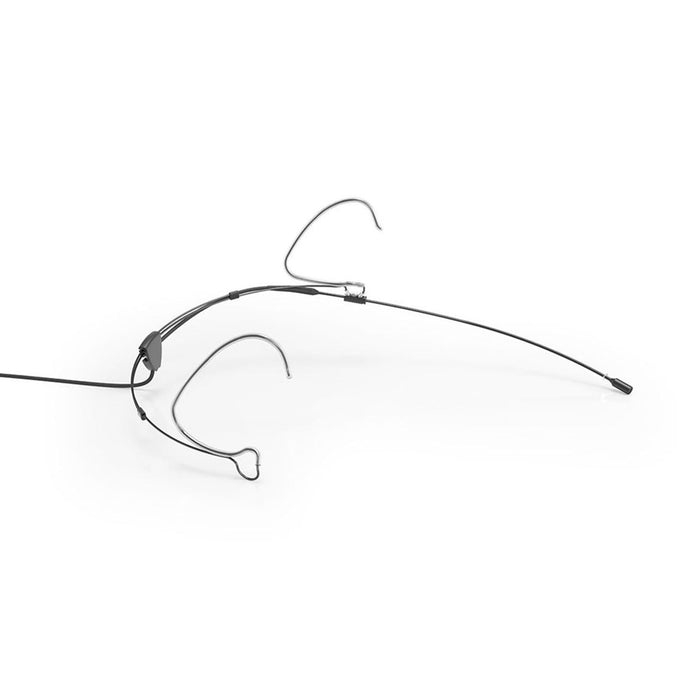

DPA CORE 6066 Omni Headset Mic, MicroLock (6066-OC-R-B90)

DPA CORE 6066 Omni Headset Mic, MicroLock (6066-OC-R-B90)

by DPA Microphones
£750.00 - £750.00
£0.00
£750.00 inc. VAT
£750.00 - £750.00
£750.00 inc. VAT
ex. VAT
SKU SDPA6066OCRB90
Please contact us for availability.

DPA CORE 6066 Omni Submini Headset Mic, MicroLock (Black)

The capsule of the DPA 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter.

Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer’s back, where it can’t be seen.

The DPA 6066 is also available with 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connector - all variants come in either black, brown, or beige.

DPA CORE 6066 Features

  • Amazing 3 mm CORE by DPA capsules technology
  • Renowned DPA sound in a 60% smaller capsule
  • One-size-fits-all, headset fits securely and comfortably
  • 2-way adjustable, non-reflective boom with locking system
  • Unique, comfortable 3-point gripping system above, below and behind the ear
  • New 90° cable management constructed to guide the cable and minimize cable breaks

DPA CORE 6066 Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ±2.4 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
  • Distortion, THD < 0.5%: 122 dB SPL RMS, 125 dB SPL peak
  • Distortion, THD < 1%: 125 dB SPL RMS, 128 dB SPL peak
  • Dynamic range: Typ. 102 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9001-BC: 100 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR adapter
  • Power supply (for full performance):
    • For wireless systems Min. 5 V - max. 10 V through DPA adapter
    • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
  • Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 11 g (0.40 oz) incl. Cable and MicroLock connector
  • Microphone head size (h x w x d): 3.4 / 8.9 mm (0.13 / 0.35 in)
  • Capsule diameter: 3 mm (0.12 in)
  • Cable length: 1.3 m (4.3 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Colors: Black, Beige, Brown
