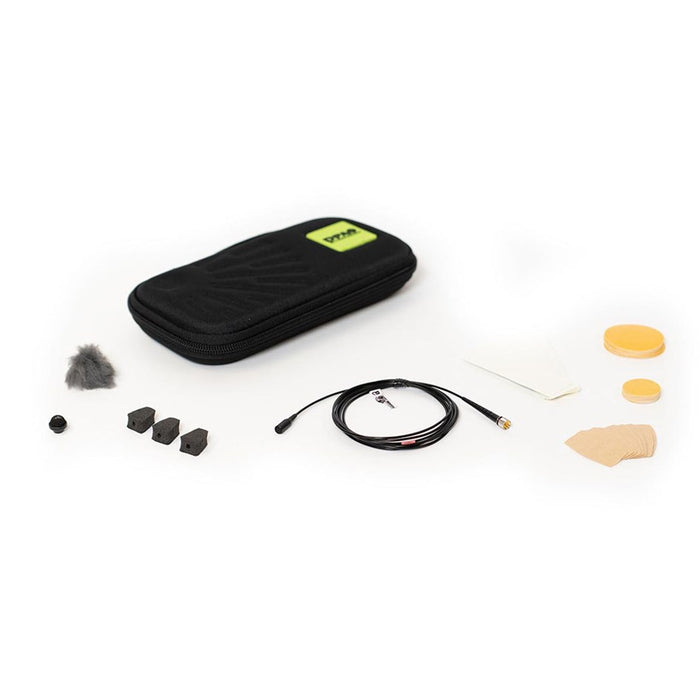

DPA CORE+ 4071 Film Microphone Kit
This microphone kit is made for film or TV productions where the microphone needs to be invisible.
It contains a 4071 Omnidirectional Microphone, Presence Boost with reinforced cable relief (pre-equalized for speech clarity). Also included are various microphone concealment fixtures, specially designed to solve both concealment and clothing noise problems.
The 4071 Omnidirectional Microphone, Presence Boost is an outstanding speech and vocal mic. It makes voice heard and intelligible. It is also resistant to moisture, extreme temperature change and humidity.
When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut has been incorporated in the mic capsule so the built-in preamplifier (and the wireless system) will have much larger headroom. Furthermore, it removes distant rumbling from cars, trains, airplanes, etc.
The Film Microphone Kit is delivered in a sturdy case with a transparent lid. Inside there is room for the microphone, one or more adapters and various microphone concealment fixtures.
DPA CORE+ 4071 Specifications
-
Directional pattern: Omnidirectional
-
Principle of operation: Pressure
-
Cartridge type: Pre-polarized condenser
-
Frequency response: 20 Hz - 20 kHz
-
Effective frequency range ±2 dB: 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
-
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
-
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
-
Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
-
Distortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peak
-
Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
-
Dynamic range: Typ. 111 dB
-
Max. SPL, THD 10%: 144 dB SPL peak
-
Rated output impedance: 30 - 40 Ω
-
Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
-
Power supply (for full performance):
- For wireless systems Min. 5 V - max. 10 V through DPA adapter
- With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
-
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
-
Connector: MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
-
Weight: 7.5 g (0.26 oz) incl. Cable and MicroLock connector
-
Microphone diameter: 5.4 mm (0.21 in)
-
Microphone length: 17 mm (0.67 in)
-
Cable length: 1.8 m (5.9 ft)
-
Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
-
Temperature range: -40°C to 45°C (-40°F to 113°F)
-
Relative humidity (RH): Up to 90%
-
Colors: Black, Beige, Brown, White
