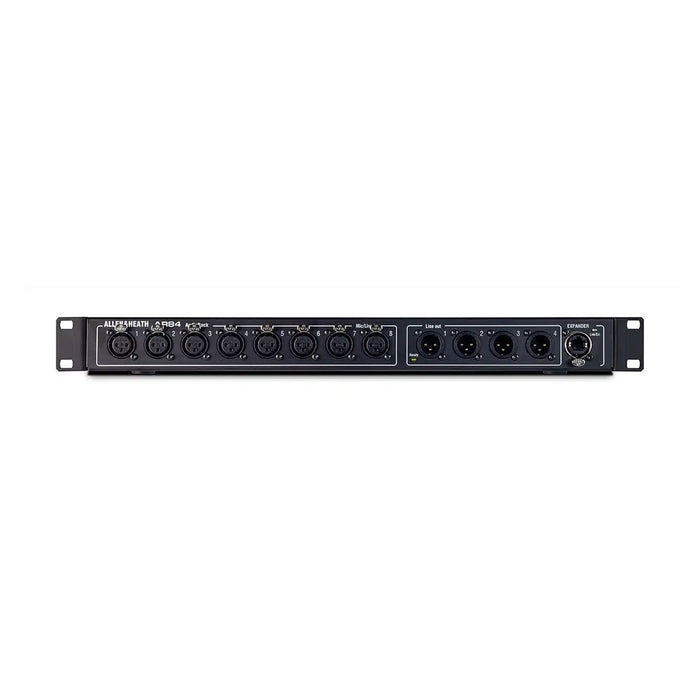

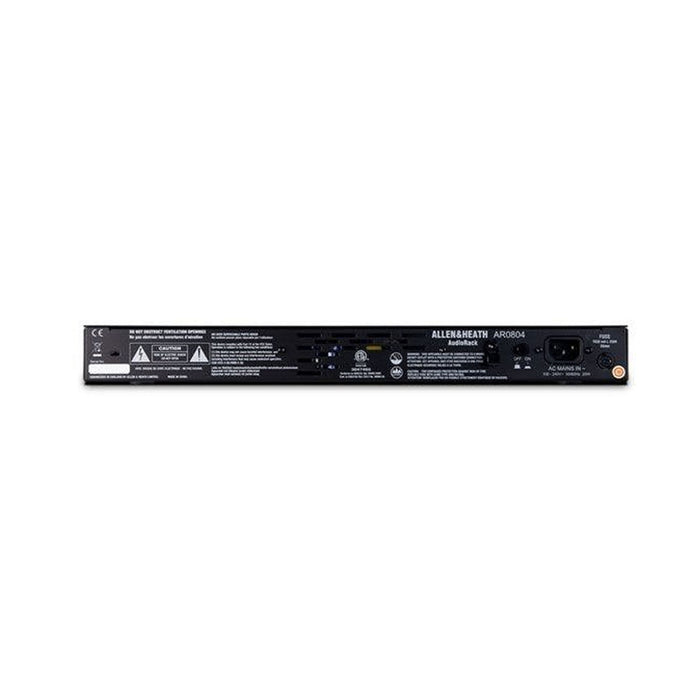

Allen & Heath AR0804 - 8 Inputs, 4 Outputs Audio Rack

Allen & Heath AR0804 - 8 Inputs, 4 Outputs Audio Rack

The Allen & Heath AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.

The AR84 can be placed up to 100m away from the mixer for maximum flexibility of positioning, and is fitted with rack ears for installation in a 1U 19″ rack space. The AR84 connects over a single Cat5 cable to the mixer or upstream Expander.

8 Mic Preamps

+60dB of gain with -20dB pad for line level sources.

4 Line Outs

Balanced, relay protected line outputs on XLR.

Plug-and-Play

No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.
