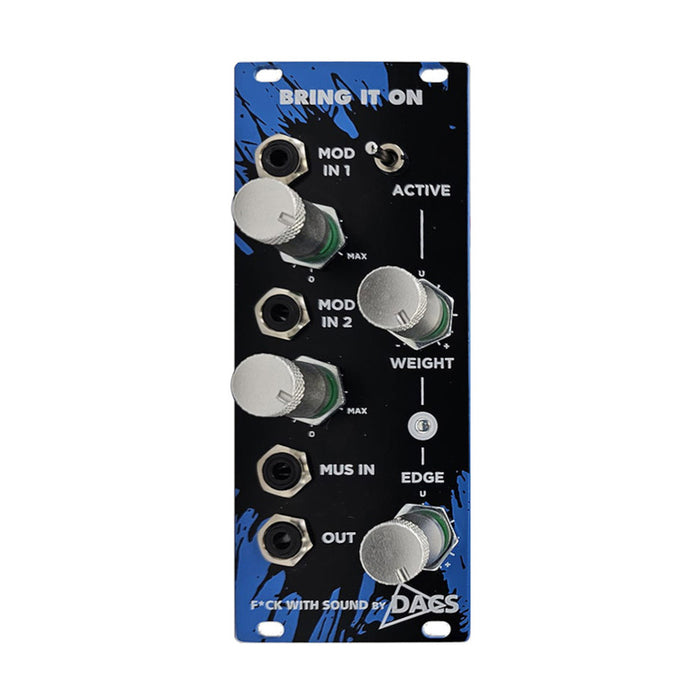

F*ck With Sound - Bring It On - Analogue Ring Mod Module

F*ck With Sound - Bring It On - Analogue Ring Mod Module

Bring it On is F*ck With Sound's much lauded ring mod with its super smooth sound, really low breakthrough, and switchable Weight and Edge controls as loved by FREQue users around the world.

The best analogue ring mod out there. Best sound. Best specs.

But not just a Ring Mod. Mix two MODulating sources, add/subtract weight and edge to your sound with our unique low and high boost/cut shelving filters.

Breakthrough is negligible (<-65dB) so you really get the ring MODulated result, not a mix of modulated signal and MOD (carrier) coming through.

F*ck With Sound Features:

• Two MODulation inputs fully mixable, DC coupled for subsonic CVs as well as audio signals
• MUSic input flat down to <5Hz
• ⁠Hand calibrated with four multi turn trimmers giving better than 65dB rejection of the MOD (Carrier) input. This means it does all the things a ring mod should do without that annoying breakthrough: feed the same signal to both MOD and MUS and get pure octave transposition; gating and pulsing with a low frequency MOD input…
• The unique switchable WEIGHT and EDGE control a shelving EQ that boosts/cuts high and low frequency content. You can switch them in and out; when the LED is on the WEIGHT/EDGE is active. The nature of ring modulation means that the boosting and cutting may produce unexpected results
• The pots are Omeg Eco pots, famed for their smoothness and longevity
• Fitted with DACS’ custom metal knobs

Bring it On sounds, looks and feels the best ring mod out there.

F*ck With Sound Specifications:

• Size HP10
• Depth 48.5mm

Current Draw

• +12V 18mA
• -12V 14mA
• +5V N/A

Frequency Response

• MOD Inputs – DC – 20kHz
• MUSic Inputs – 5Hz – 20kHz

Box includes:

• 4 x M3 pan head screws
• 4 x M3 nylon washers
• 4 x M2.5 pan head screws
• 4 x M2.5 nylon washers
• 1 x 210mm ribbon cable 10 pin (FwS module) to 16 pin (chassis)

Current Draw

• +12V 18mA
• -12V 14mA
• +5V N/A

Frequency

• MOD Inputs – DC – 20kHz
• MUSic Inputs – 5Hz – 20kHz
