SPL TDx 500 Series Transient Designer Module
SPL TDx 500 Series Transient Designer Module

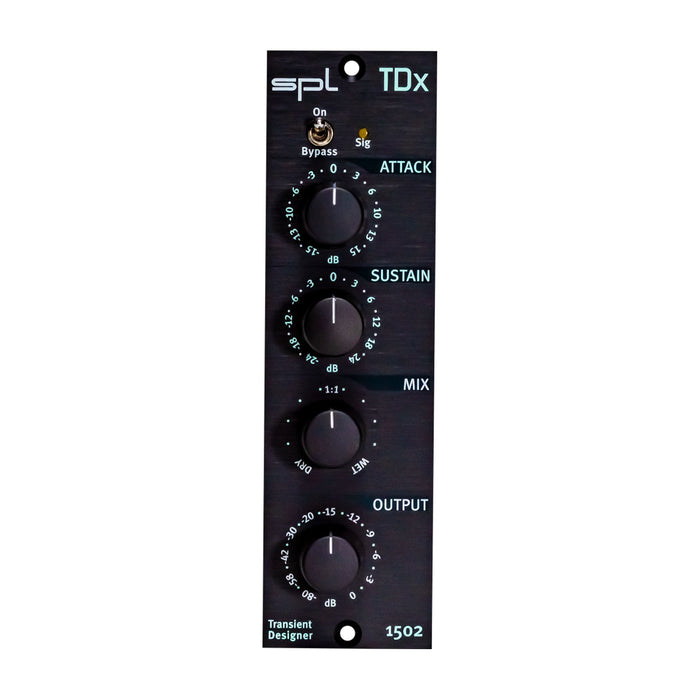

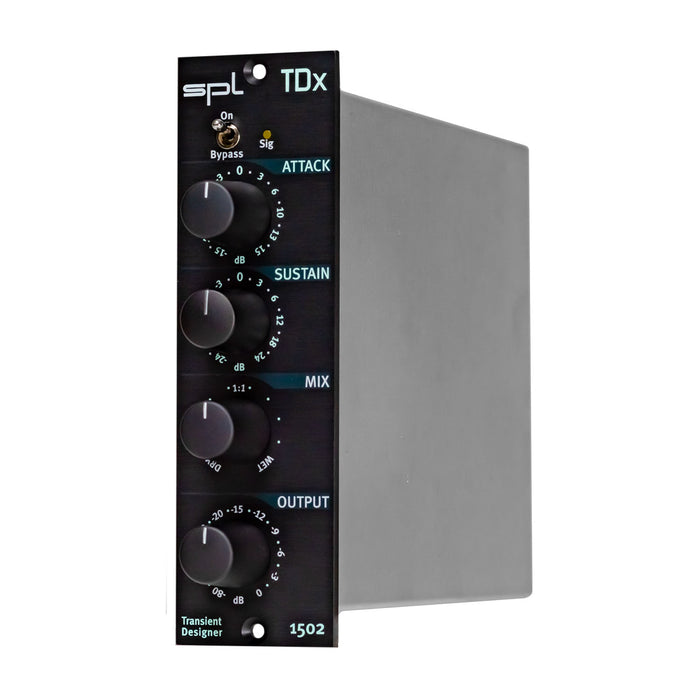

The Transient Designer TDx brings level-independent dynamics processing to the world of 500 Series.
On/Bypass
The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.
Signal LED
The Sig LED (Sig) indicates whether an audio signal is present at the input which has a level higher than -20 dB.
Attack
Attack can be used to increase or attenuate the attack phase of a signal by up to 15 dB. Positive attack increases the amplitude of the attack phase. Negative attack attenuates the amplitude of the attack phase.
Sustain
With Sustain the decay phase of a signal can be increased or attenuated by up to 24 dB. Positive Sustain extends the decay. Negative Sustain shortens the decay.
Mix
The mix control allows continuously blending between processed (WET) and unprocessed (DRY) signals.
Output
With the output control the output gain can be attenuated in order to optimally drive following devices.
Specifications:
Input & Output; balanced
- Maximum input & output gain: 21 dBu
- Input impedance: 20 kΩ
- Output impedance: 150 Ω
- Common mode rejection: > 82 dB
- Frequency range (-3 dB): 10 Hz – 100 kHz
- THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
- Noise (A-weighted): -92.3 dBu
- Dynamic range: 113 dB
Dimensions & Weight
- Single-spaced module for 500 Series
- Unit weight: 0.65 kg/1.43 lbs
- Shipping weight (incl. packaging): 0.9 kg/1.98 lbs
