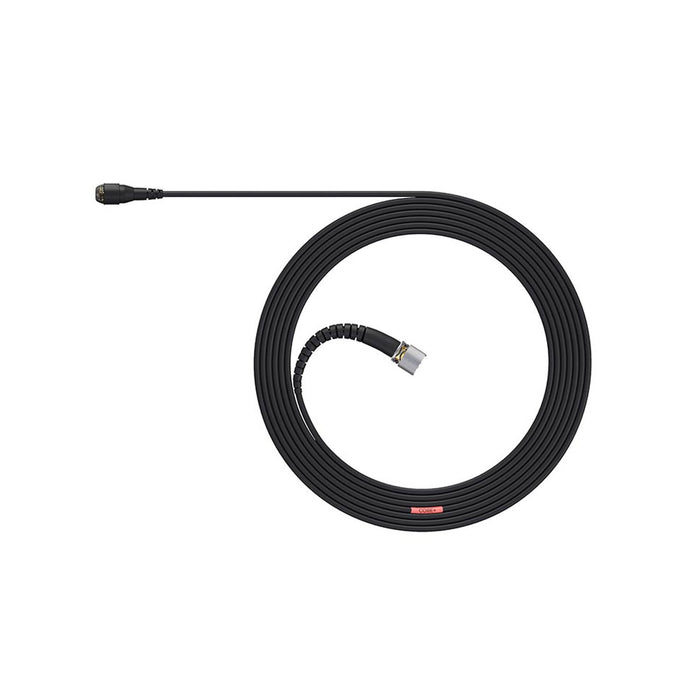

DPA CORE+ 4060 Omni Mic, Normal SPL, MicroLock (4060-OP-C-B90)

DPA CORE+ 4060 Omni Mic, Normal SPL, MicroLock (4060-OP-C-B90)

by DPA Microphones
£410.00 - £410.00
£0.00
£410.00 inc. VAT
£410.00 - £410.00
£410.00 inc. VAT
ex. VAT
SKU SDPA4060OPB90
Please contact us for availability.

DPA CORE+ 4060 Omni Mic, Normal SPL, MicroLock (Black)

The DPA 4060 Omni Mic is the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

This omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

The DPA 4060 is also available with 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connector - all variants come in either black, brown, beige, or white.

DPA CORE+ 4060 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

DPA CORE+ 4060 Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peak
  • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
  • Dynamic range: Typ. 111 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
  • Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 7.5 g (0.26 oz) incl. Cable and MicroLock connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
