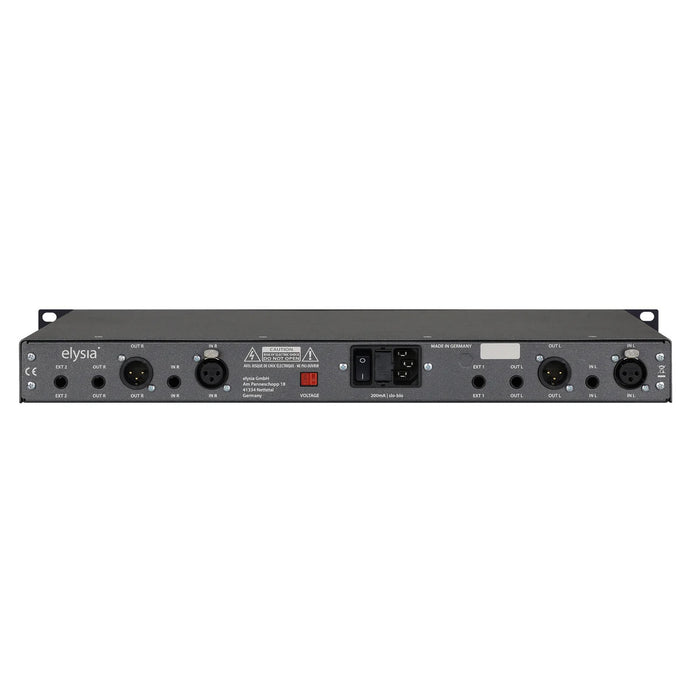

Elysia Karacter - Analog Saturation Processor 19" Rack Version
Elysia Karacter - Analog Saturation Processor
The Elysia karacter is a box full of vibrant colors. It covers a complete spectrum including mastering-grade saturation, tube-inspired distortion and glorious destruction. Gone are the days when only racks full of outboard gear could achieve these elusive and highly desirable styles of tonal coloration.
The entire unit is designed with discrete class-A topology, so even the most lo-fi sounds will benefit from the karacter’s high-end touch. Enhance your tracks or decimate everything – It’s a matter of karacter.
This enormously creative tone-shaping solution offers two separate channels which can be set up for dual mono, linked stereo or linked and unlinked M/S operation. Integrated mix stages for parallel signal processing and the unique Color Control add to its remarkable flexibility.
Elysia Karacter Features
- 100% Discrete Class-A Topology: Expensive boutique sound made affordable.
- Mastering-Grade Saturation: Gentle THD generation with a soft characteristic.
- Tube-Inspired Distortion: Wide ranges of asymmetrical low noise clipping.
- Glorious Destruction: Turbo Boost for massive sonic mayhem.
- Bulletproof Lightweight: Aluminum housing, panel and knobs.
- Control Voltage: Modulation and recall of Drive and Mix.
- Color Filter: Harmonics-frequency relation tweaks.
- Dual Mono/Stereo Link/Mid Side: Signal matrix for maximum flexibility.
- Stepped Controllers: Fast and easy recall guaranteed.
Elysia Karacter Specifications
- Frequency response:
- 100 % Wet: <10 Hz - 400 kHz (-3 dB)
- 100 % Dry: <10 Hz - 27 kHz (-3 dB)
- THD+N (100 % Dry):
- @ 0 dBu: 0.013 %
- @ +10 dBu: 0.024 %
- THD+N (100 % Wet in Saturation Mode):
- @ 0 dBu Min Drive: 0.47 %
- @ 0 dBu Max Drive: 35.1 %
- Noise floor: 20 Hz - 20 kHz (A-weighted):
- 100% Dry: -91 dBu
- 100% Wet (depending on Drive and Gain): -81 to -91 dBu
- Dynamic range 20 Hz - 22 kHz: 112 dB&
- Maximum input level: +21 dBu
- Maximum output level: +21 dBu
- Input impedance: 10 kOhm
- Output impedance: 68 Ohm
- Dimensions (W x H x D, incl. Knobs): 19” x 1,75“ x 9,4“ / 483 mm x 44,45 mm x 238 mm
- Weight: 3,88 lbs / 1,76 kg
- Power consumption: 12 Watts
