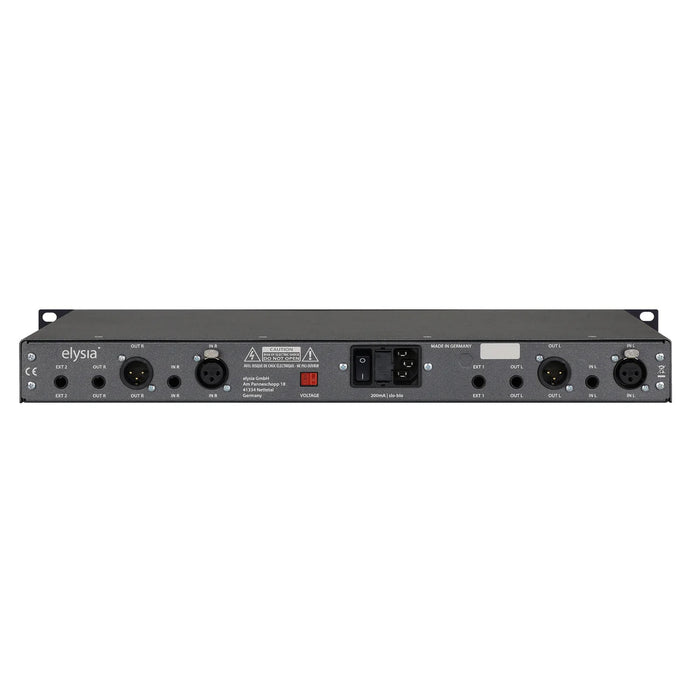

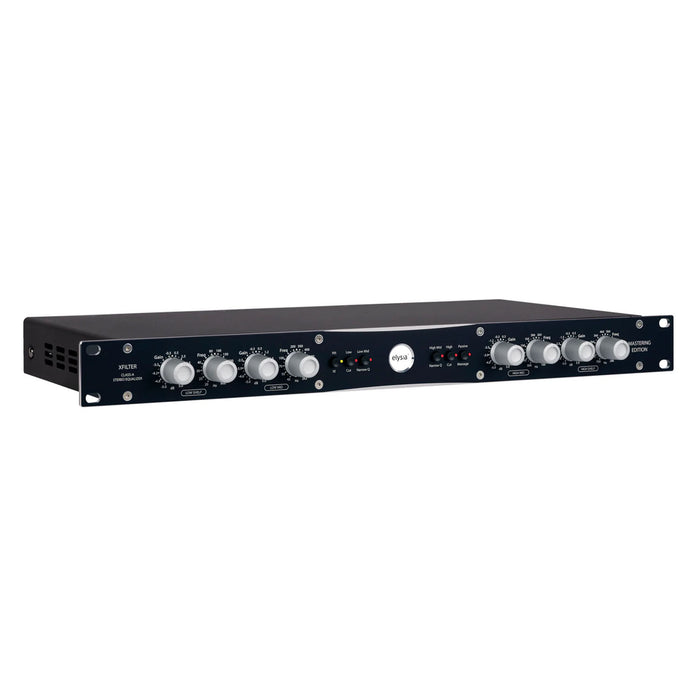

Elysia XFILTER Mastering Edition - Stereo Equalizer
Elysia XFILTER Mastering Edition
The Elysia xfilter Mastering Edition is a very sophisticated, handcrafted analog stereo 4-band equalizer, with both channels linked for stereo operation. All four bands provide a precise control range of +/-5dB. This fine Stereo Mastering EQ produces the high-end sound of a Class A equalizer at an amazing value for the money. It produces an absolutely precise stereo image based on the use of computer-selected components with extremely low tolerances. A special feature of this analog equalizer shines through its double flexibility! It offers high and low shelf bands which can be switched to high and low pass filters with resonance control. Two bell filters with narrow and wide Q for the mid frequencies as well as additional passive LC stages with shielded coils to refine the treble frequencies.
xfilter Mastering Edition inherits the DNA of xfilter, offering pristine transparency that allows your music to shine. Every subtle detail and nuance are preserved, enabling you to achieve a polished, professional sound that captivates listeners.
While xfilter is a powerful tool for editing individual tracks during mixing, xfilter Mastering Edition is specifically designed to take your mastering process to the next level.
It has been carefully optimized for mastering workflows and offers refined controls and extended headroom to achieve perfect results in the final mastering stages.
Elysia xfilter Mastering Features
- 4-band stereo analog equalizer with real stereo link
- Precise control range of all four bands of +/-5dB
- Balanced output stage with up to +27dBu
- High-quality and light construction in aluminium housing |Made in Germany
- Class-A Topology
- Stepped potentiometers
- High- and Low Shelf Bands
- Hi- and Low Pass Filter with Resonance
- Two parametric Mids with switchable Q-Factor
- Additional passive high-band
Elysia xfilter Mastering Specifications
- Frequency response: <10 Hz – 400 kHz (-3,0 dB)
- THD+N @ 0 dBu, 20 Hz – 22 kHz: 0,006 %
- THD+N @ +10 dBu, 20 Hz – 22 kHz: 0,01 %
- Noise floor, 20 Hz – 22 kHz (A-weighted): -92 dBu
- Dynamic range, 20 Hz – 22 kHz: 112 dB
- Input level: +27 dBu
- Output level: +27 dBu
- Input impedance: 10 kOhm
- Output impedance: 68 Ohm
- Dimensions (W x H x D, incl. Knobs): 19” x 1,75“ x 9,4“ / 483 mm x 44,45 mm x 238 mm
- Weight: 3,88 lbs / 1,76 kg
- Power consumption: 13 Watts
- Potentiometers: 41 Steps
