The Flock Audio CX Module is a Line Level Adjuster/Booster & Preamp designed to work cohesively with the PATCH Series Analog Routing systems, allowing any type of Analog Signal to be Boosted and routed through the PATCH Series +4 Line Level design for the cleanest and most transparent signal possible.
The CX Module can also be used outside of the PATCH Series as a dedicated Preamp or Signal Booster using the optional CX Standalone Application.

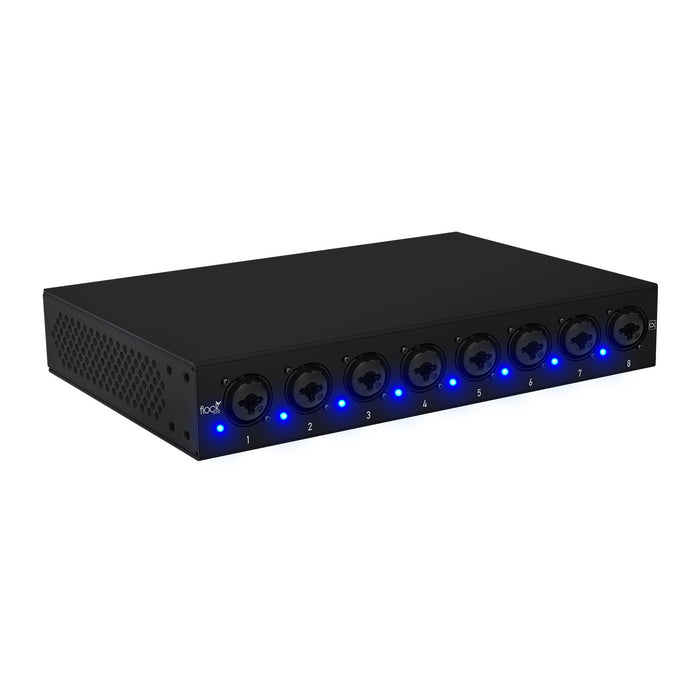

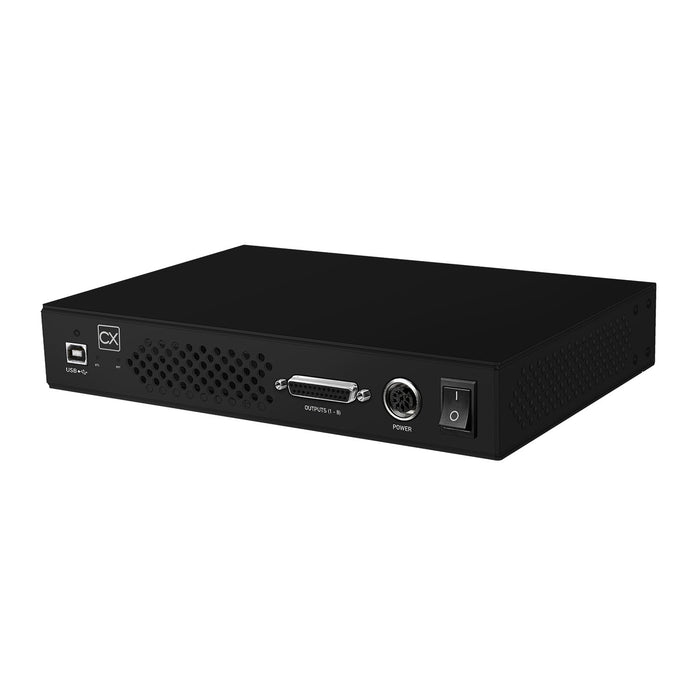

A simple & straightforward modular design hosting 8 Total - XLR/Combo Latching Inputs with 8 accompanied & individually assignable 48V LED Indicators, CX’s front panel is perfect balance of function & form. The Rear panel includes a single 8 Channel DB25/DSUB Connector for Line Level Out to your PATCH Series Models Inputs. Next to the DB25/DSUB connector is the USB-B Connection for Host Control and Threaded Locking Power Connector + Power Switch. CX can easily be placed on a desk, rack top or the floor for easy accessibility. For those preferring rack mounting, Optional Rack Ears are Included with each CX Module.
Flock Audio CX Features
- 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs
- 8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connectors
- 8 Assignable Independent Channels of 48V Phantom Power
- PATCH APP & PATCH APP DX - Setup & Controlling Software (OSX, Windows, iOS)
- CX Standalone App - (OSX/Windows) Use CX Outside of the PATCH Series
- Connect any type of analog audio signal to the PATCH Series via the CX Hardware
- No AD/DA Conversion, No Latency
- 100% Sonically Transparent Analog Signal Path
- Stand Alone Desk Module or Rack Ear Mountable Package Design (Ears Included)
- External Power Supply w/ Threaded Locking Connector (IEC Cable Included)
- 10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
- Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) - 8 lbs
