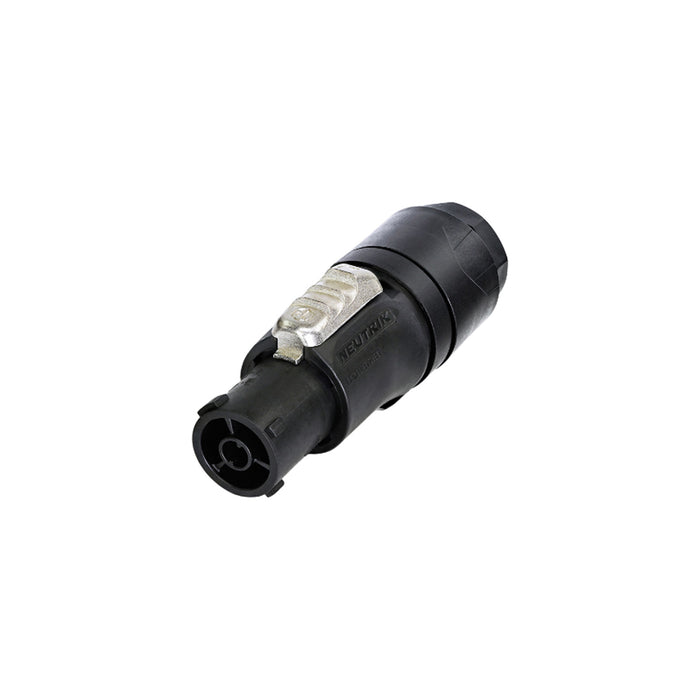

Neutrik NAC3FX-W-TOP-L powerCON True1 Mains Cable Connector Female - Pack of 50 - Clearance
by Neutrik
Original price
£508.20
£316.80
inc. VAT
ex. VAT
SKU RNEUNAC3FXWTOPL50
Neutrik NAC3FX-W-TOP-L powerCON True1 Mains Cable Connector Female - Pack of 50 - Clearance
PHASE OUT
Direct replacement / successor: NAC3F-TRUE1-L
Locking female cable connector for big power cord with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.
Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A)
The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.
Features & Benefits
- IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
- Heavy duty sealed power connector for harsh and demanding environment
- IP65 rating and approved for outdoor protection
- Uses high impact UV-resistant materials
- Extremely robust and reliable cable retention
- TOP True Outdoor Protection
- Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
- Superior NEUTRIK quality standard
