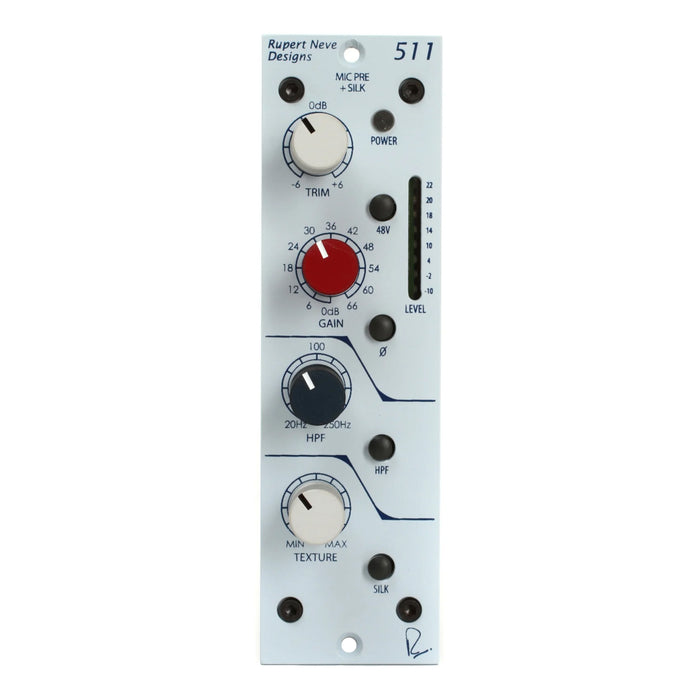

Rupert Neve Design 511
£656.67 ex. vat
Rupert Neve Design 511
The Rupert Neve Design 511 is a professional quality mic pre that provides you with flexibility with texture, gain, and filters. Rupert Neve designed the 511 to combine classic sonic's with 500-series value. Incorporating the 517’s powerful preamp, the 5012’s universally useful sweepable high pass filter, and the transformer-saturating power of a variable silk circuit derived from Rupert Neve Designs’ flagship Portico II Channel, the 511 is a Rupert Neve-designed mic pre for the masses.
Designed for 500 Series by Mr. Rupert Neve
Rupert Neve: "While creating functional 500 series modules is relatively simple, designing those modules to equal their non-500 series counterparts with the current, voltage and space restraints is quite challenging. In creating the 511 500-Series Modules, Rupert Neve Design experimented with a number of different transformer and circuit designs to achieve the same presence and sweetness found in the Portico Series of modules. The result of these efforts is that outside of the slightly lowered headroom, the Rupert Neve Design 500 series modules are nearly indistinguishable from standard Portico Series modules, and are perfectly suited for studios of the highest caliber.
Input signals may be derived from Mic or Line sources (make sure 48V is off for line sources!). The input has a 10K Ω non-reactive input resistance that handles a full 22dBu signal without the need for a pad. The pre-amp is a TLA non-reactive design that precludes the loading of microphones with limited driving capability. A primary gain control provides 66dB of gain in 6dB increments for easy recall, with a +/- 6dB trim for fine adjustment. For condenser microphones and powered DIs, there is +48V phantom power. A transient-optimized HPF continuously covering the range from 20-250Hz is included to tame rumble and proximity effect.
One of the key developments in the 511 is the Red Silk / Texture control from the Portico II Channel. Building on the "Silk" mode found in the Portico Series mic pre-amplifiers, Texture is designed to adjust the actual amount of harmonic music content from the source material, in effect, providing wide range of tonal options for the preamplifier. Like the original Portico Silk, the Silk Red / Texture works by reducing negative feedback on the output transformer and adjusting the frequency response to more closely resemble Mr. Rupert Neve’s vintage designs. With the 511, the Texture control allows these techniques to be pushed further than previous designs, adding about 10 times the desirable THD of the original silk control at its maximum setting.
Low Noise, Low Distortion Operation
Much care was given in designing the 511 to produce as little noise and non-harmonic distortion as possible. Carefully implemented signal paths and Class A operation are a large part of the 511’s sweet, whisper quiet performance. For more information, go to Mr. Rupert Neve’s Design Notes.
A complete discussion on transformers is out of place at this point, but it is helpful to review some of the essentials where it will be seen that a design needs to be viewed as a whole, not simply from the point of view of a single component.
