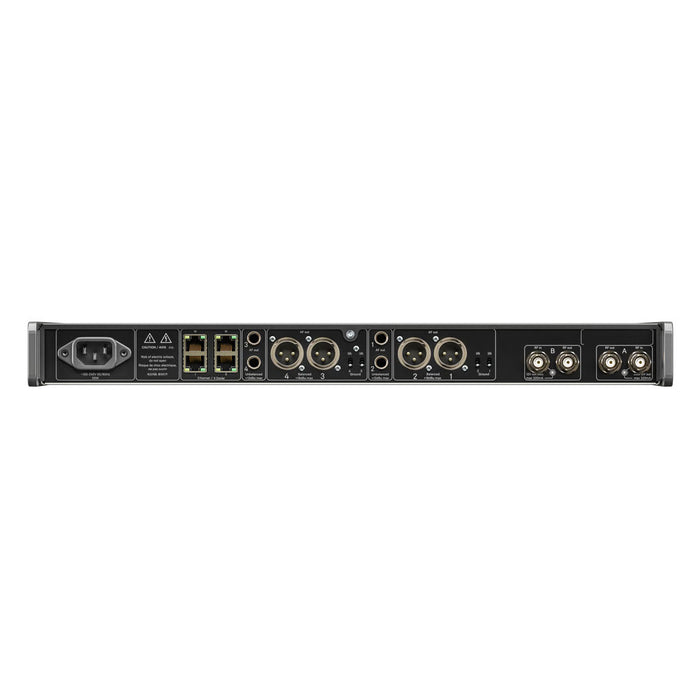

Sennheiser EW-DX EM 4 Dante (S1-10) - 4-Channel Dante Wireless Receiver

Sennheiser EW-DX EM 4 Dante (S1-10)

Four-channel digital full-rack (19") receiver with internal PSU and Dante for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters.

Extended 88 MHz switching bandwidth, intermodulation-free operation [intermodulation-free equidistant channel spacing] for up to 293 channels with secure AES 256 encryption and four modular network ports.

Features

• Four-channel digital full rack (19") receiver with internal PSU and with Dante in rugged metal housing
• Up to 88 MHz switching bandwidth
• Auto-switching PSU with IEC Connection
• Four network ports for flexible network configurations - each port can be assigend as: Control, Control + Dante Prim, Control + Dante Sec, Dante Prim, Dante Sec
• Integrated antenna splitter with antenna power and loop through to daisy chain up to 16 channels (4 x EW-DX EM 4)
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 141 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Works seamlessly with SoundBase software, unifying your workflow into a single, simple platform
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager), and 3rd party media control systems via plug-in
• Ethernet connectivity (IPv4 and IPv6)
• AES-256 & Dante Media Encryption offers the strongest protection against signal hacking
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Link Quality Indicator (LQI) showing the quality of the links seperate to the RF levels
• Remote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 meters
• Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
• Selective headphone output with volume control on front panel
• Extended menu settings such as custom frequency list, selectable sync parameter and walk test
• Worldwide usage (specific frequencies subject to local RF regulations)

Specifications

• Dimensions: 483 x 44 x 373 mm (19" x 1.73" x 14.66")
• Audio output: 2x 70 mW @ 32 Ω
• Frequency range: 606.200 - 693.800
• Latency (ms): 1.9 ms
• Power consumption (Amp): max. 37 W
• Connection: Wireless
