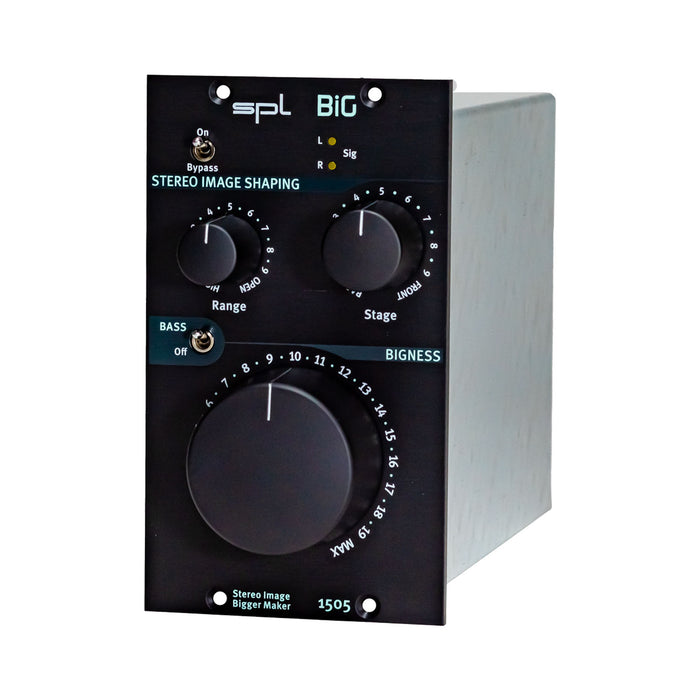

SPL BiG - 500 Series Stereo Image Bigger Maker
SPL BiG - 500 Series Stereo Image Bigger Maker
500 Series double-slot module for stereo stage processing.
BiG is special. BiG is unique.
BiG enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.

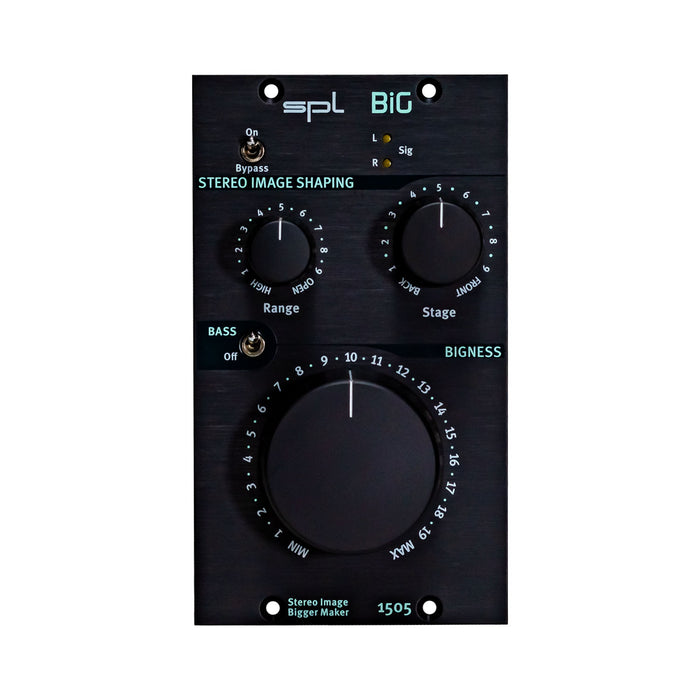

On/Bypass
The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.
Range
With the Range control, the frequency Range which should be processed can be selected.
Stage
With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.
BIGNESS
The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING.
The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an additional bass boost following the BIGNESS section.
The bass boost is performed by a filter implemented in a similar circuit to the one used in the AirBass function of the SPL IRON Mastering Compressor.
SPL BiG Specifications
- Maximum input & output gain: 21 dBu
- Input impedance: 20 kΩ
- Output impedance: 150 Ω
- Common mode rejection: > 82 dB
- Frequency range (-3 dB): 10 Hz – 100kHz
- THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
- Noise (A-weighted): -92.3 dBu
- Dynamic range: 113 dB
- Double-spaced module for 500 Series
- Unit weight: 0.9 kg/1.98 lbs
- Shipping weight (incl. packaging): 1.05 kg/2.31 lbs
