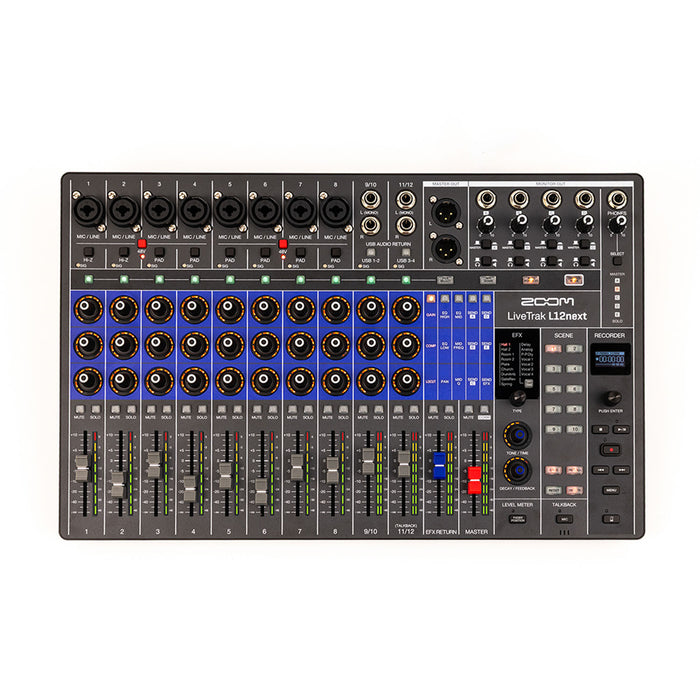

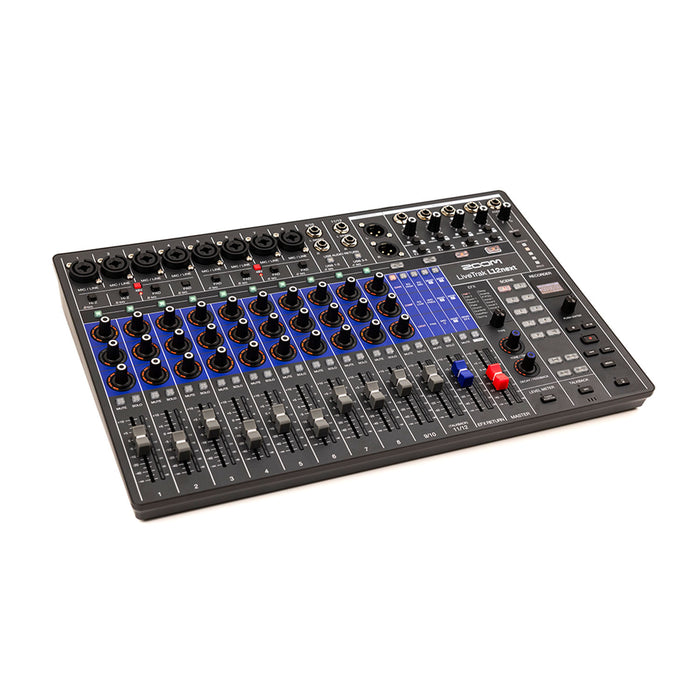

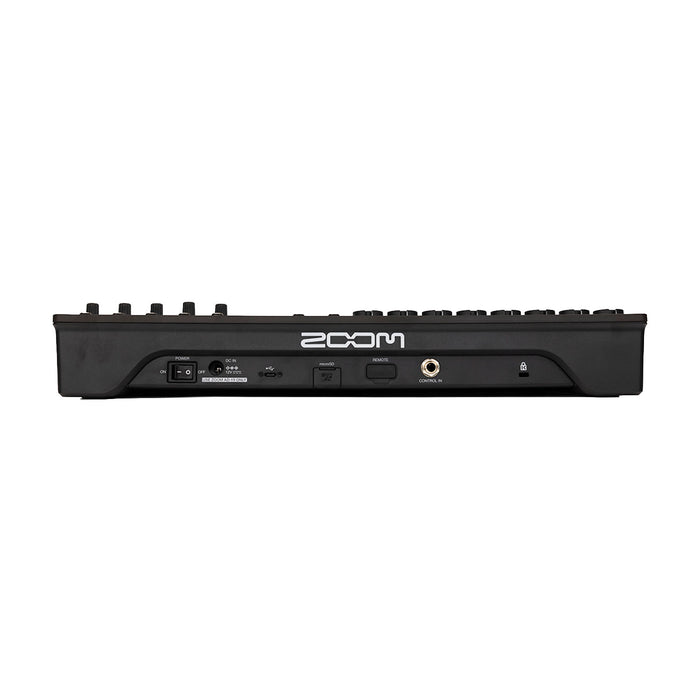

Zoom L-12next - LiveTrak Digital Mixer and Recorder

Zoom L-12next - LiveTrak Digital Mixer and Recorder

The Zoom L12next combines the power of a digital mixer with analog-style operation. Three knobs per channel can deliver High/Mid/Low EQ control. With a simple switch you can also adjust gain, pan, and sends, offering hands-on mixing, just like an analog console.

The L12next puts you in total control, letting you mix with speed and confidence, whether you’re on stage or in the rehearsal room.

In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends. No more scrolling through menus.

The L12next’s upgraded preamps deliver clean gain (+70dB), low noise (–128 dBu EIN), and full input flexibility with Hi-Z, PAD, and +48 V phantom power.

The L12next has advanced recording features and captures up to 12 individual tracks at 24-bit/96 kHz, plus a stereo mix. Its new OLED screen streamlines recording controls and setup.

Newly added features such as Overdub Mode and Auto Punch In/Out allow precise layering and easy re-recording. The new File Select button allows you to easily load additional tracks to expand your mix.

The L12next’s master channel captures your mix in 32-bit float for pristine, clip-free sound, while the master Compressor adds warm, natural compression that enhances the overall mix.

Zoom L12next Features

• Inputs - Combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices.
• Channel Strip - In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends.
• Function Selector - Choose which controls are accessible on the multi-function encoder knobs ie: EQ, Gain, Sends
• Custom Mixes - Five powered headphone outputs can send individual monitor sub mixes to headphones, in-ear monitors, or powered monitor speakers. The main outputs feature XLR connectors to easily connect to your PA.
• Recording Features - Quick access to advanced recording capabilities such as mixdown, overdub and autopunch.
• Main Controls - LED screen and encoder knob let you access the menu system to create new projects, recall previous projects, and customize your recorder settings.
• Scene Control - Save up to ten different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more.
• Talkback Mic - The engineer can use the talkback mic to talk to the artists right from the board.
• Fader Position - Fader Position button lets you quickly view saved fader positions when recalling scenes.
• EFX - 16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.
