Bettermaker Mastering Equalizer Analogue Mastering EQ with 5" Touchscreen

Bettermaker Mastering Equalizer Analogue Mastering EQ with 5" Touchscreen

The Bettermaker Mastering Equalizer is a 2U stereo mastering EQ with a fully analogue audio path and every control handled digitally, so a complex EQ setting can be saved, recalled and automated as easily as a plugin. It pairs four parametric bands with a passive-style low and high section, extended air bands and resonant filters, all driven from a 5-inch touchscreen on the front panel or from the Bettermaker plugin in your DAW.

Because the hardware remembers everything, you can move between songs in a mastering session, compare settings with A/B, and come back to a project weeks later with the EQ exactly as you left it. Stereo, dual mono and Mid/Side modes make it equally at home on a stereo bus, on stems or on finished masters.

Key Features:

• Analogue signal path, digital control:
  Audio never leaves the analogue domain. A 32-bit microcontroller looks after the filters, the screen, presets and USB.
• Four parametric bands:
  ±15dB per band with Q from 0.2 to 7. The lowest and highest bands switch between bell and shelf.
• Passive EQ section:
  Low boost and cut plus a high boost with 20kHz and 28kHz air settings for opening up the top end.
• Resonant high-pass and low-pass filters:
  HPF at 12 or 24dB/oct from 10Hz to 240Hz (down to 6Hz with resonance on), and a 12dB/oct LPF from 2kHz to 38kHz.
• Stereo, dual mono and Mid/Side:
  Treat the centre and sides separately, or set each channel independently.
• 399 named presets:
  Store settings on the unit, reset everything instantly and A/B two settings.

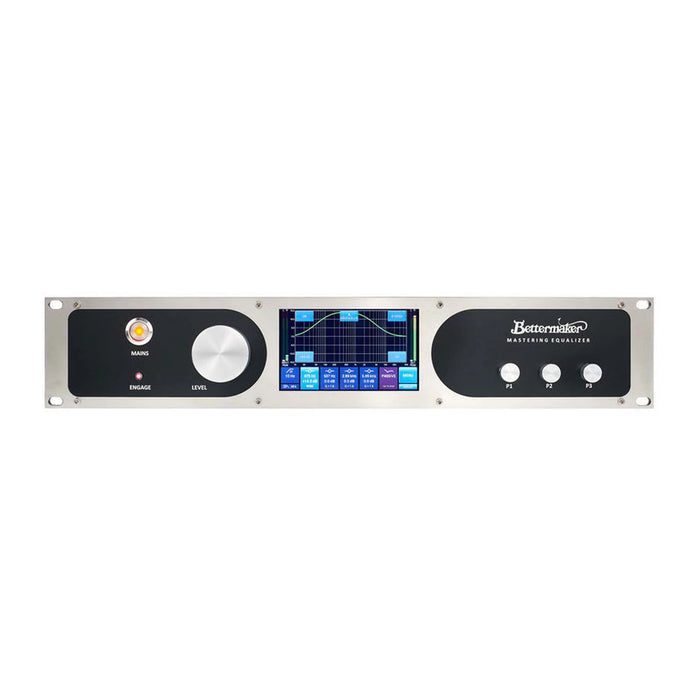

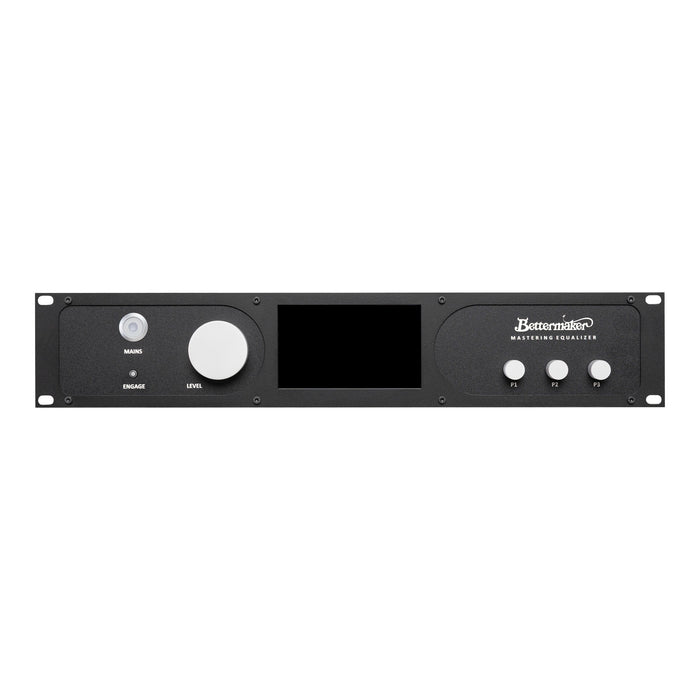

• 5-inch touchscreen:
  Shows a live EQ curve, peak/RMS meters and a real-time FFT analyser. Frequency Search, Gain Lock, Note and Auto-Q speed up setting each band.
• Full DAW recall:
  The Bettermaker plugin (macOS and Windows) automates and recalls every parameter over USB.

In the Box:

• Bettermaker Mastering Equalizer
• Mains power lead
• Bettermaker Mastering Equalizer plugin (download from Bettermaker)

Specifications:

• Frequency response: 20Hz to 20kHz (±0.2dB)
• Dynamic range: 102dB (+23dBu, 22kHz bandwidth)
• THD+N: 0.03% at +4dBu, 0.06% at +18dBu
• CMRR: 85dB max at 3kHz, 52dB min at 20Hz
• Crosstalk: -100dB at 30Hz, -65dB at 20kHz
• Parametric bands: EQ1 22Hz to 470Hz (bell/shelf), EQ2 90Hz to 2kHz, EQ3 480Hz to 10kHz, EQ4 1kHz to 23kHz (bell/shelf)
• Maximum input/output level: +23dBu
• Operating level: +4dBu
• Impedance: 48kΩ input (balanced), 50Ω + 50Ω output

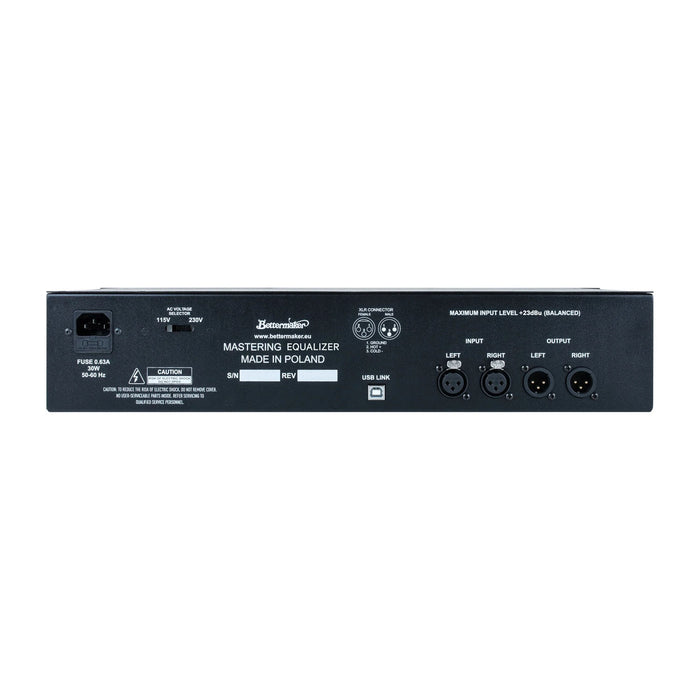

• Connections: balanced XLR stereo in and out, USB to Mac/PC
• Power: internal linear supply with toroidal transformer, 115/230V switchable, 20W max
• Format: 2U rackmount, 230mm deep
• Shipping weight: 5.5kg
