Vibe Club & Lounge, Burscough | Void Acoustics Installation

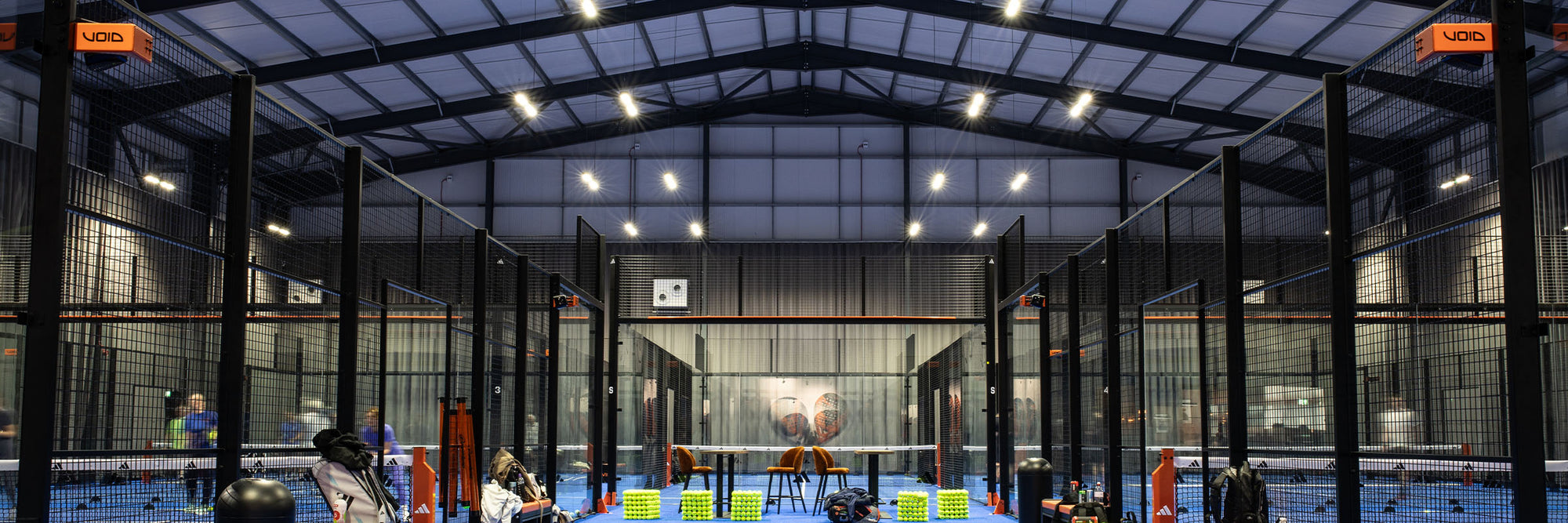

Vibe Club & Lounge is a purpose-built padel club in Burscough, 14 miles north of Liverpool. Five Adidas panoramic courts on Mondo X3, studios, a gym and a bar under one roof. We specified, supplied and installed a full Void Acoustics Cyclone system across eight zones.

Vibe Club & Lounge, Burscough | Void Acoustics Installation

Vibe Club & Lounge is a purpose-built padel club in Burscough, 14 miles north of Liverpool. Five Adidas panoramic courts on Mondo X3, studios, a gym and a bar under one roof. We specified, supplied and installed a full Void Acoustics Cyclone system across eight zones.

Specified Around the Building

Vibe needed a system that could work at different levels through the day, from a coaching session over music in the morning to a busier bar in the evening, with eight separate areas running independently and operated by the club's own staff. We started with the building itself: the glass walls, the hard floor, and the floodlight masts already positioned where loudspeakers could be mounted.

We specified the Void Acoustics Cyclone 4 around four requirements:

  • An 80° × 80° conical dispersion, aimed down from the masts
  • A coaxial driver, so voice and music come from a single point
  • 16 Ω loads, which suit the long parallel cable runs in the hall
  • IP-55 rated enclosures and stainless fasteners, for a working sports building

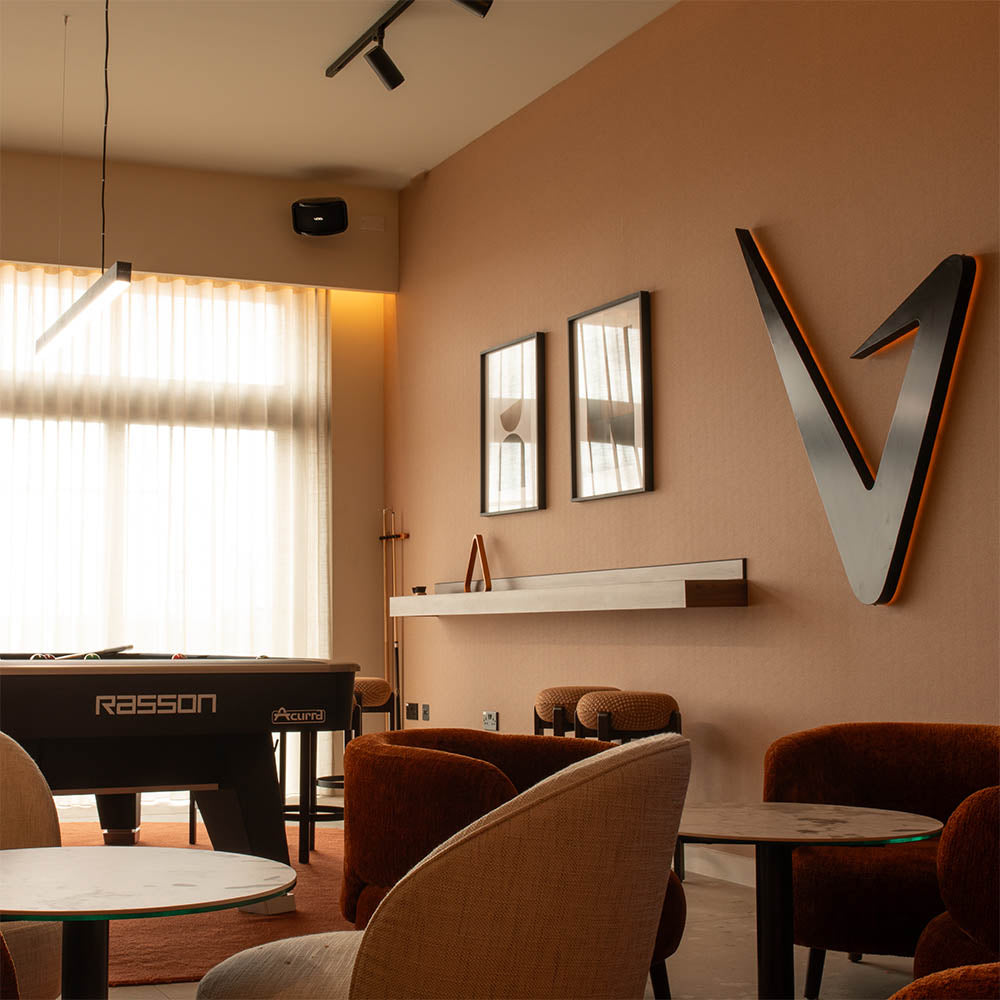

The result is even coverage across each court, without excessive level in any one place and without sound carrying into the neighbouring court. The same reasoning led us to the Cyclone 55.1 for the lounge.

Made for This Building

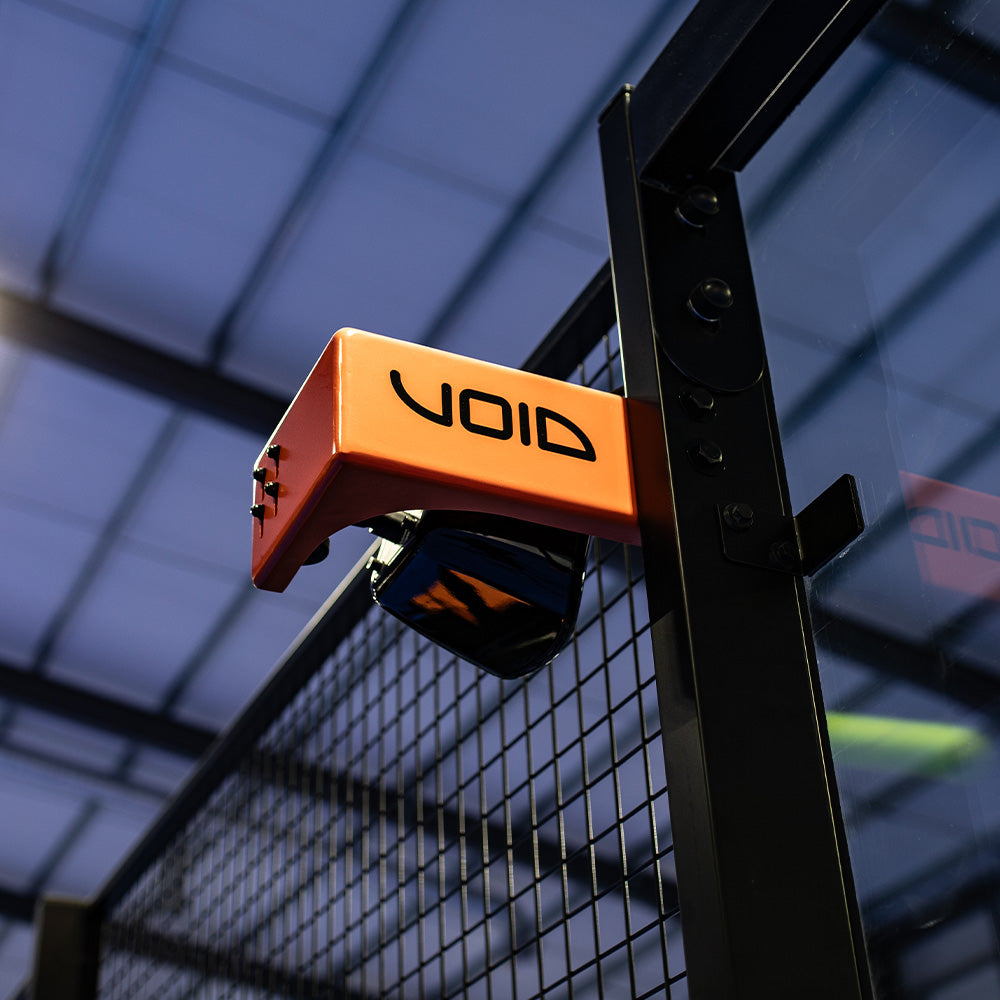

The masts and cage offered the right mounting position, high enough to clear players and the glass, and angled down the court rather than across it. They were not designed to carry a loudspeaker, however, so we had mounting brackets made specifically for this building, branded for Void Acoustics and engineered to suit the masts and cage.

Not from a catalogue:

  • Void-branded brackets for the masts and cage
  • The Vibe logo engraved into the court volume controls
  • A 12U courtside rack, built for the space it occupies
  • Cabling and containment installed to the building

Supplying the equipment is straightforward. Making it work in a particular building is where the installation expertise matters.

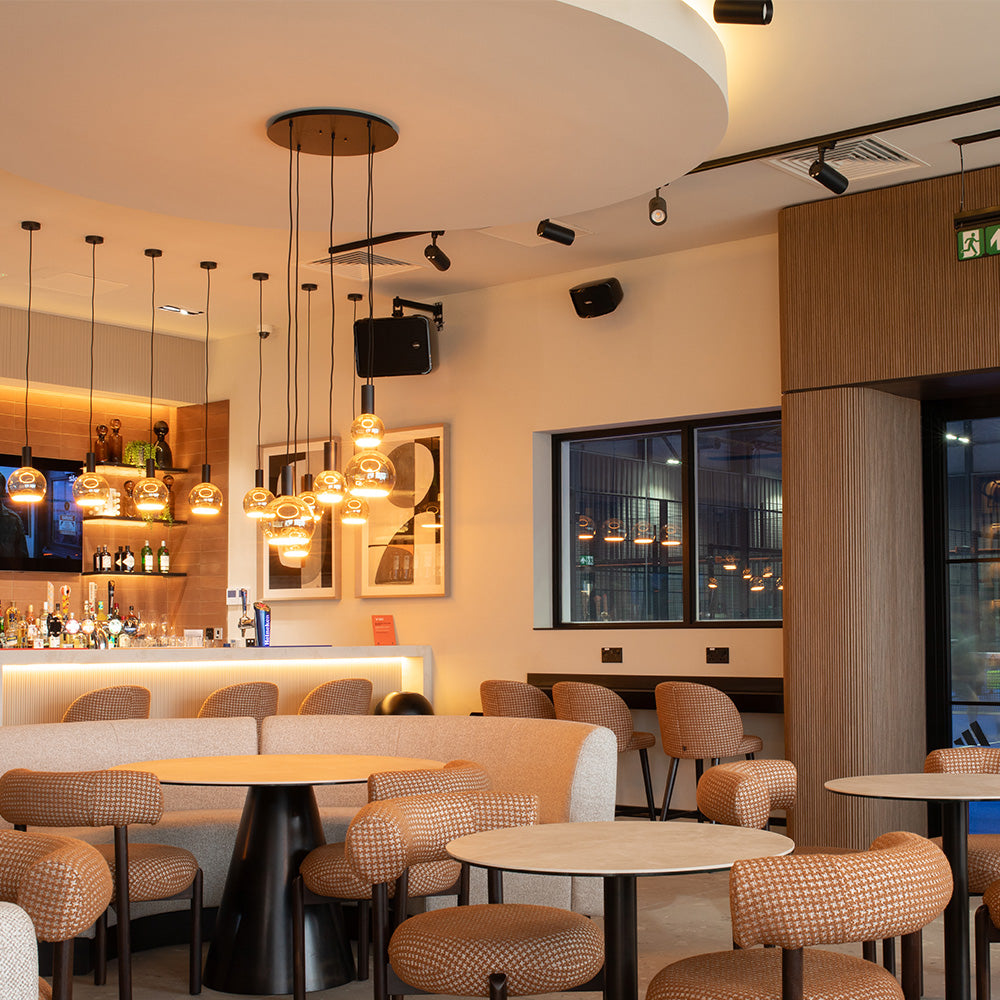

Eight Zones, One Building

A coaching session, a league match and lunch service can be happening at the same time, and each area needs its own level without anyone having to coordinate. The building is split into eight zones — office, courts, courtside, reception, lounge, reformer studio, gym and changing rooms — all routed through a single NST Audio VMX88 processor.

Controls are located where staff already work:

  • A VR2 touchscreen in the office, controlling the whole building
  • VR1 rotary controls in the lounge, reformer studio and gym
  • A control point on a pole at each court entrance
  • A Yamaha MG10 in the reformer studio

The court controls are limited at the amplifier, so levels can be reduced but not raised, and no one court can affect another. An Inca 500 amplifier drives the courts and gym, with a Bias Q1.5+ for the lounge and courtside bulkhead.

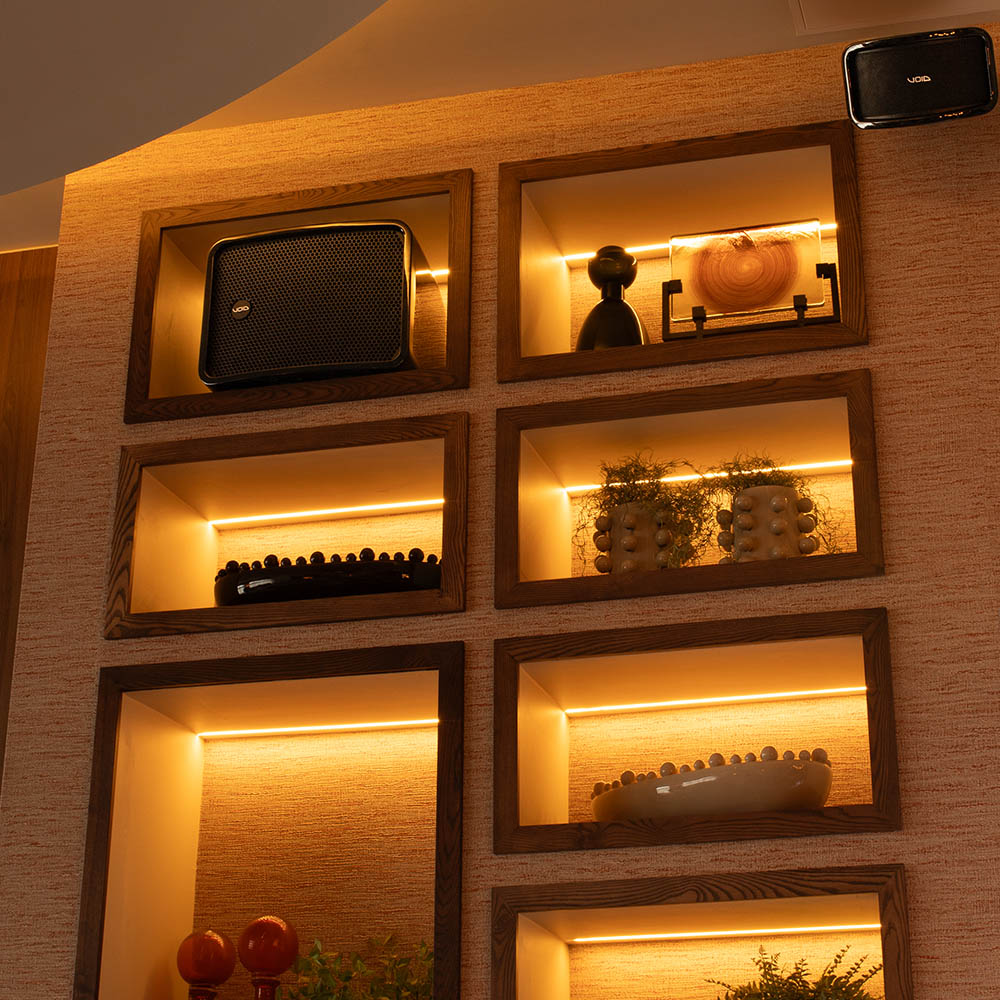

Supplied and Installed by Our Own Team

The installation was carried out entirely by our own engineers, with no subcontracted labour. The team that priced the work was the team on site, handling the rack, amplifiers, brackets, cable termination, control panels and Dante link, working around a club that remained open throughout.

The service covered the whole project:

  • Survey and system design from the court specification
  • Supply of the complete system
  • Custom fabrication: brackets, engraved controls and the rack
  • Installation by our own engineers
  • Commissioning zone by zone
  • Handover and aftercare

At handover we took the staff through the building control by control: what each one does, how to change a court level, and how to hand the lounge over to the bar at the end of the day.

Take a tour of Vibe Club & Lounge with Andrew one of the owners.

A Sound System Designed for Your Venue

Glass, turf and a hard floor make a padel hall an unusually difficult room, and players still need to hear each other over the music. It's the same problem we solve in a studio, in a building that has to run itself. We survey, specify, supply, install and commission — one team, one contact, first visit to handover.

Talk to us about your venue and we'll tell you what it actually needs.
