Bettermaker Mastering Limiter 2.0
Bettermaker Mastering Limiter 2.0
For over 7 years the Bettermaker Mastering Limiter has dominated the pro audio Mastering industry becoming an essential tool for Grammy winning Mix and Mastering engineers. It became a signature sound of Billboard hits as well as festival anthems being the last piece in the chain of the biggest artists in the world.
After countless hours of research in Bettermaker laboratories, it’s time for the next step. The modern legend has gotten even better, more powerful and more intuitive.
New mastering features, totally redesigned control screen and plugin, and presets from pro audio legends, the Limiter 2.0 is the ultimate tool to bring your music the final touch that it became famous for, but with extra kick.
Now, let’s look closer at what is new:
- New improved Limiting Engine

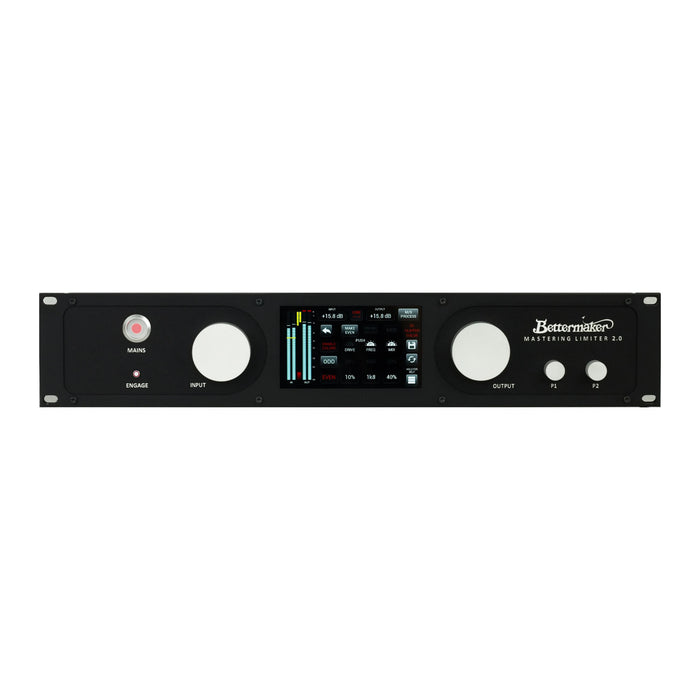

- New intuitive GUI and DAW plugin
- Wide angle, high contrast screen
- Limiter gain reduction range
- Faster release time
- Input/Output link
- Redesigned color section with color MS matrix
- Limiter sidechain with highpass filter and high frequency emphasis
- New, redesigned Clipper section
The digital section of the Mastering Limiter is based around two high speed, 32- bit micro-controllers, with dedicated Main features. The Limiter has 3 functionalities that are essential to make a perfect master. All of them are recallable by the internal memory and a plugin that also handles automation.
Bettermaker Mastering Limiter 2.0 Features
- 100% analog signal path
- Intelligent, manual and BPM release
- New sidechain mode with HPF and MID Boost section
- Variable mix between limiting and clipping
- New redesigned clipper section with 2 independent clipper sections and trim
- Flexible link mode for compensating input and output level
Bettermaker Mastering Limiter 2.0 Specifications
- Maximum gain reduction: 20 dB
- Input adjust range: 0..+20dB
- Output adjust range: -10..+12dB
- Makeup gain: automatic with trim (-/+8dB range; only available with clipper enabled)
- Attack time: 0.1 – 250ms
- Release time: 2ms – 2s + IREL (intelligent release)
- Sidechain HPF: off or 20-200Hz (2nd order)
- Sidechain mid boost: off or 8dB @ 2kHz or 7kHz
- Metering ADC range: 70dB
- Power saving mode available
- Mid/side mode available, true bypass (relays) available

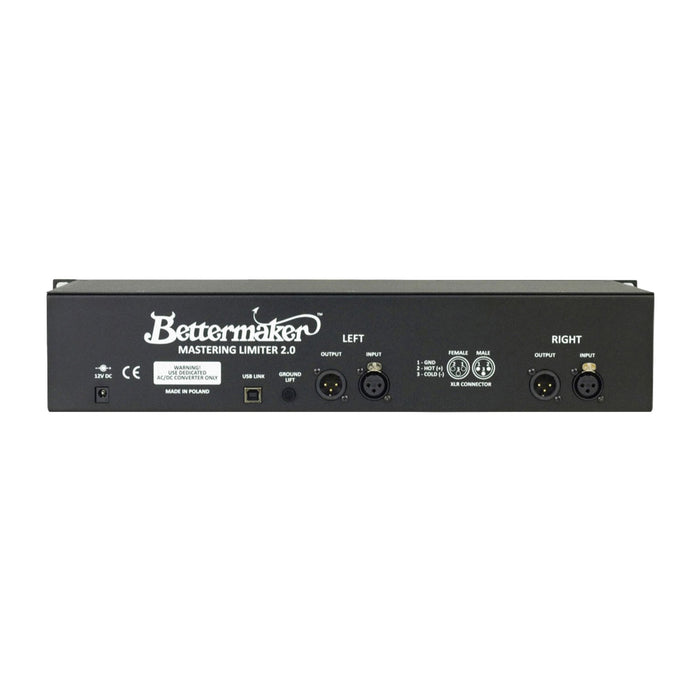

- Connection: balanced XLR (audio), USB type B (PC/MAC), 5.5/2.1 center positive 12V only socket
- Maximum input level: +24 dBu (balanced with 48kΩ input impedance)
- Maximum output level: +27 dBu (balanced with 50Ω + 50Ω output impedance)
- Nominal audio level: +4 dBu
- Frequency response: 6 Hz – 27kHz (-0.5 dB, ISO-R40 sweep)
- Frequency flatness: +/- 0.1 dB (20Hz – 20kHz, ISO-R40 sweep)
- Dynamic range: 107 dB (20kHz bandwidth, +24dBu)
- THD+N ratio: 0.05 % (20kHz bandwidth, +4dBu, 1kHz)
- THD ratio: 0.03 % (+4dBu, 1kHz)
- CMRR: > 80dB (20Hz – 20kHz, IEC 60268-3)
- Crosstalk: > 76dB (20Hz – 20kHz, +18dBu, channel to channel)
- AC power consumption: max 25W (<2W in standby, with included 100-240VAC power adapter)
- 2U enclosure, 230mm deep
- Shipping weight and size: 5kg, 62x37x21cm
