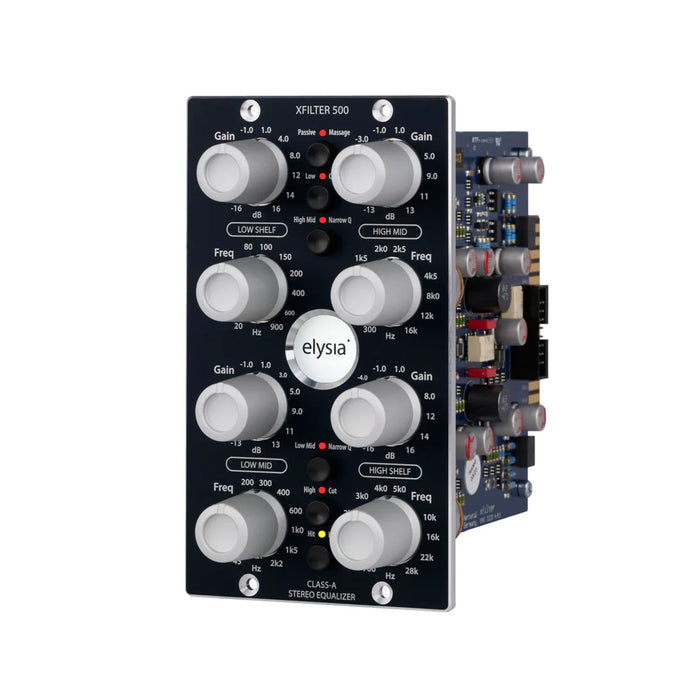

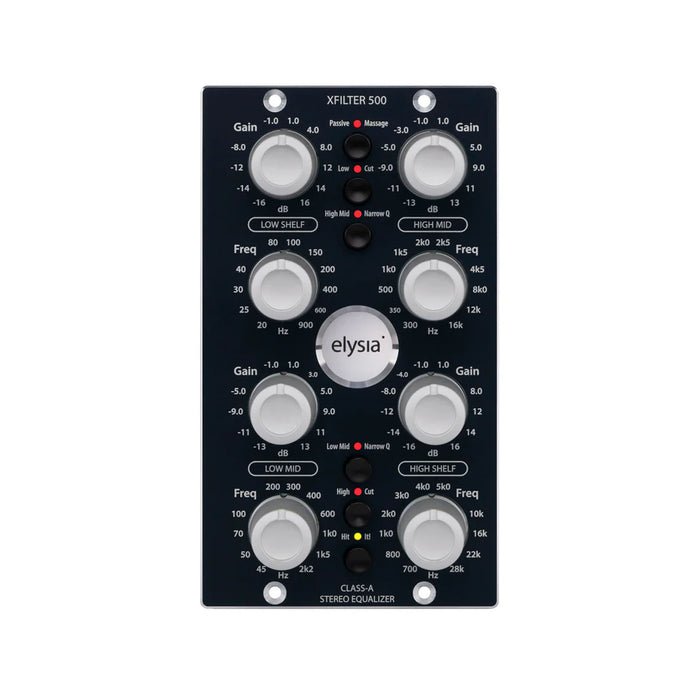

Elysia XFILTER 500 - Stereo EQ 500 Series Module

Elysia XFILTER 500 - Stereo EQ 500 Series Module

The Elysia xfilter 500 is a true linked stereo EQ in the 500 series format. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors. With its exceptionally open sound, straight transient projection and solid punch, the xfilter 500 is the perfect match for your xpressor|neo 500 – or any other piece of outboard gear! xfilter 500 is absolutely serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.

Elysia xfilter 500 Features

• 100% Class-A Topology
• True Stereo Operation
• Resonance High & Low Cut Filters

• Switchable Filter Quality

• Additional Passive High-Band

• Stepped Controllers

• Computer-Selected Potentiometers

• Special Low Tolerance Capacitors

• Ground Layer Shield


Elysia xfilter 500 Specifications

• Frequency response: <10 Hz – 400 kHz (-3,0 dB)
• THD+N @ 0 dBu, 20 Hz – 22 kHz: 0,006 %
• THD+N @ +10 dBu, 20 Hz – 22 kHz: 0,01 %
• Noise floor, 20 Hz – 22 kHz (A-weighted): -98 dBu
• Dynamic range, 20 Hz – 22 kHz: 112 dB
• Input level: +21 dBu
• Output level: +21 dBu
• Input impedance: 10 kOhm
• Output impedance: 68 Ohm
• Dimensions: 2 Slot 500 Series Module
• Weight: 1,01 lbs / 0,47 kg
• Power consumption:  210 mA
• Potentiometers: 41 Steps
