Neve Elements 88R EQ

Neve Elements 88R EQ

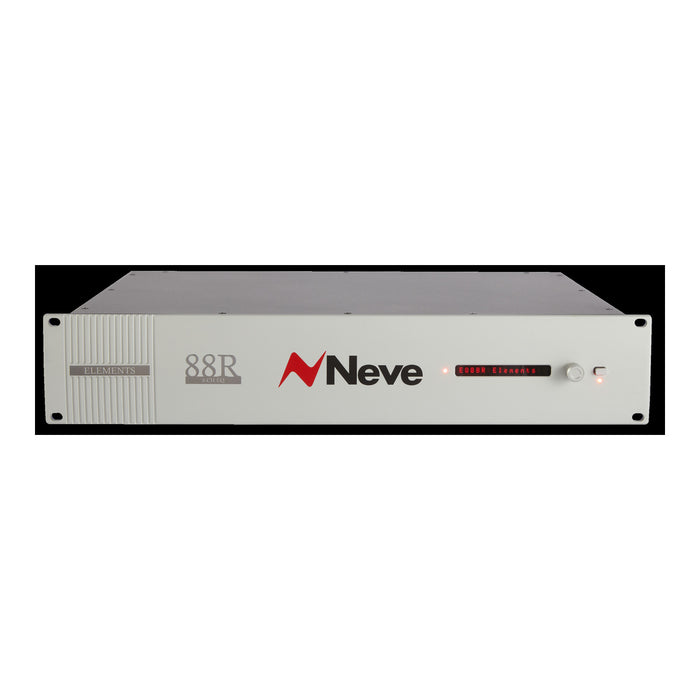

The Neve Elements 88R EQ brings the four-band equaliser from the 88R console into the Elements format: a fully analogue, inductor-free semi-parametric EQ with digital control and full recall. It is the same EQ circuit used on the 88R, packaged as eight channels in 2U, so you can add that sound to any studio without buying a console.

Every band gives ±18dB, with shelving on the high and low bands and a choice of peaking or shelving on the mid bands. The result is a wide, musical EQ that will happily do gentle corrective work or aggressive shaping, and the digital layer means you can recall a setting exactly rather than photographing the front panel.

Control comes from the Element Control Plugin (AAX, AU and VST3) in your DAW or from the standalone Neve Elements app, with snapshots, multi-step undo and control grouping. The intelligent insert matrix lets you position the unit anywhere in the chain under software control, and it cascades with other Elements.

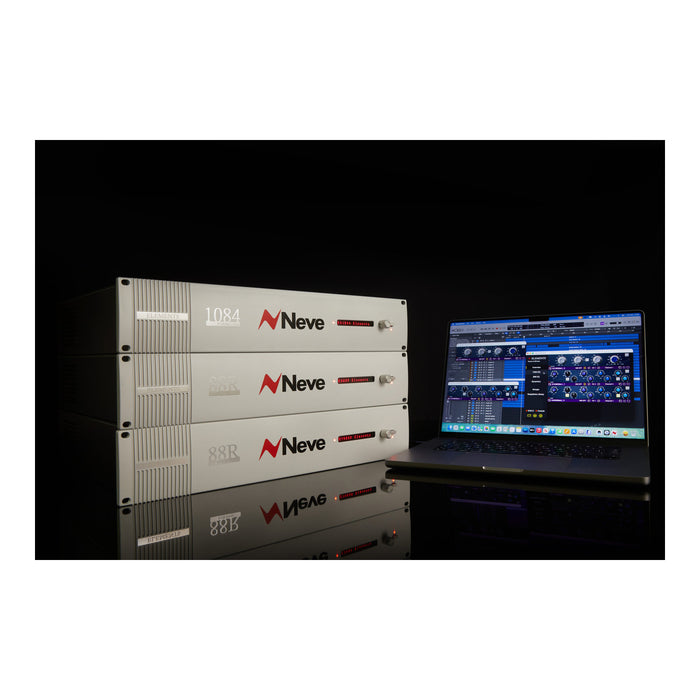

Pair it with the 88R Dynamics for a complete 88R-style channel strip, build it into a larger Elements system, or drive it from the E-Controller and Elements Upstand Screen on the 8424E console.

Four-band semi-parametric EQ

• High frequency: ±18dB, 3.2kHz to 18kHz, bell or shelving
• High mid frequency: ±18dB, 1.25kHz to 10kHz
• Low mid frequency: ±18dB, 140Hz to 1.6kHz
• Low frequency: ±18dB, 32Hz to 360Hz, bell or shelving

Elements system features

• Eight channels per 2U unit
• 25-way D-sub line in and line out, plus insert send and return per channel
• Intelligent insert matrix — set each Element's position in the chain digitally, and cascade multiple units
• Ethernet connectivity with DHCP or fixed IP addressing
• Element Control Plugin for AAX, AU and VST3, plus the standalone Neve Elements app
• Snapshots, multi-step undo and control grouping across channels and units
• Fully analogue audio path with digital control — not an emulation

Specifications

• Channels: 8
• Format: 2U rackmount
• Dimensions: 483mm wide × 89mm high × 361mm deep

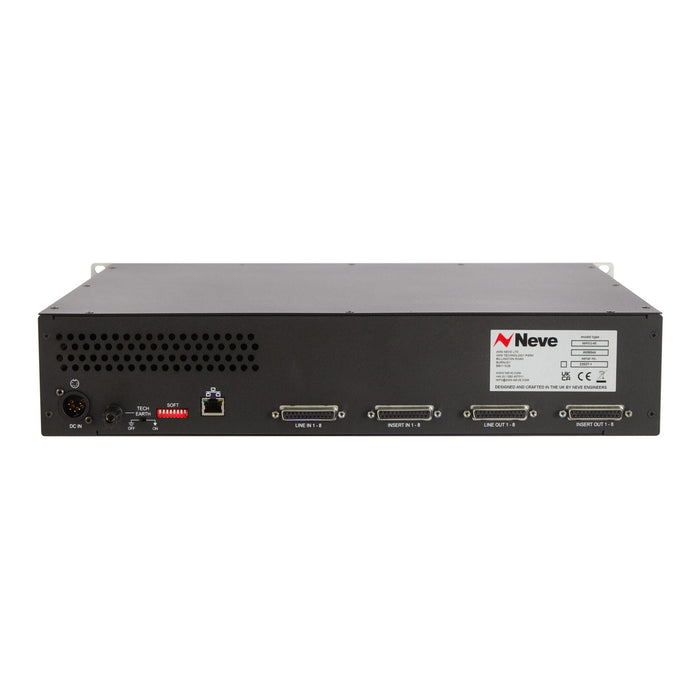

• Connections: 25-way D-sub line in and out, 25-way D-sub insert send and return, Ethernet
• Software: Element Control Plugin (AAX, AU, VST3) and Neve Elements app

Built in the UK by AMS Neve.
