Elysia XPECTOR - Class-A Dual Headphone Amplifier
Elysia XPECTOR - Class-A Dual Headphone Amplifier
A dual headphone amplifier with advanced monitoring features. Good monitoring during mixing is crucial for evaluating the audio mix. It is just as important for artists to hear themselves perfectly when recording in order to deliver their best performance. The Elysia xpector solves both challenges for the artist and the producer.

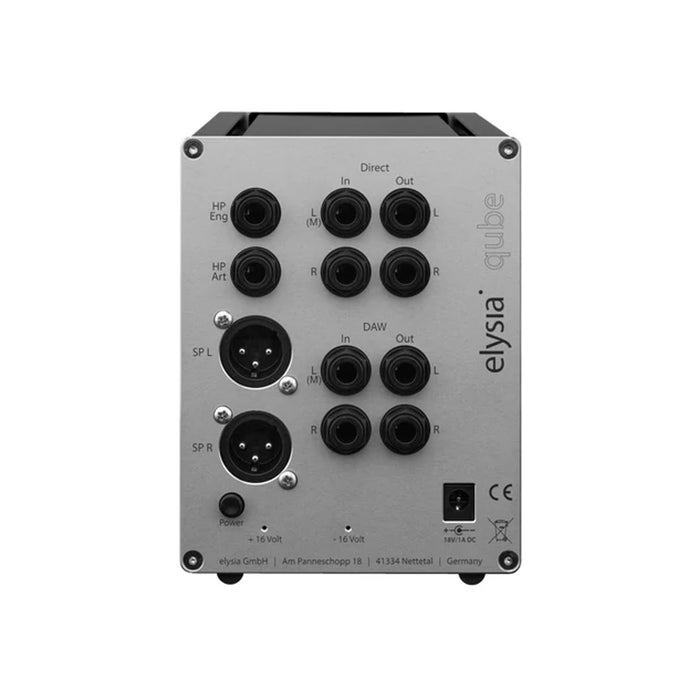

The xpector has mirrored headphone outputs for the engineer and the artist on the back. If you want to connect speakers or your studio monitors you can use the balanced XLR outputs to use the xpector as your monitor controller and benefit from the superb audio quality and true three-dimensional stereo image.
The stereo Direct and DAW inputs feed signals to the corresponding mix controllers at the front so that engineers and artists can adjust their mix to taste. But we’re not stopping. If you want to daisy-chain multiple units you can. Or use the Loop outputs to feed the output signal of a preamp connected to the direct input to your interface.
Elysia xpector Specifications
- Frequency response: <10 Hz – 400 kHz (-3,0 dB)
- Input level:+22 dBu
- XLR Outputs level: +22 dBu
- Input impedance: 45 kOhm
- Output impedance: 0,09 Ohm
-
Max output power:
- @22 Ω : 2 x 150 mW (RMS)
- @600 Ω: 2 x 150 mW (RMS)
- Dimensions (W x H x D, incl. Knobs): 104 mm x 137 mm x 212 mm
- Weight: 3,17 lbs / 1,46 kg
- Power consumption: 9 Watts
